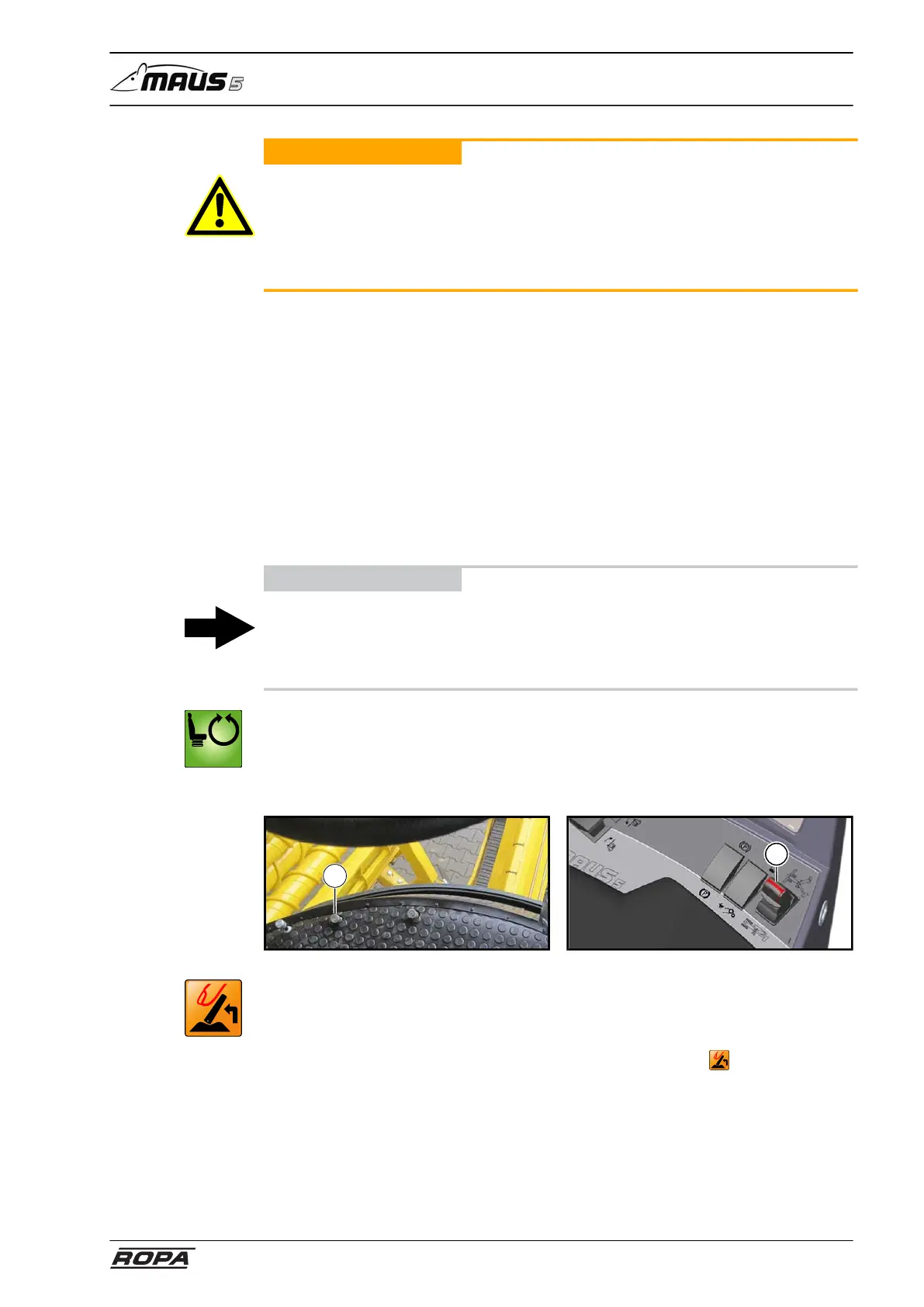

Operation
Folding the machine out/in
177 / 476
WARNUNG
Hazard of extremely severe injuries.
– Make sure, that nobody stands in the hazard zones when the machine is started.
– Make sure that there are no persons on the boarding platform.
– The driver is responsible for ensuring that there is nobody in the area between
safety rail at the boarding steps and cabin door when lifting or lowering the cabin.
The following processes are executed automatically. During these processes,
several movements are performed simultaneously:
1 The speed of the diesel engine increases.
2 The telescoping part of the pile pickup extends outward.
3 The pile pickup is raised.
4 Both pickup side sections fold out.
5 The cabin is raised up to the end-stop.
6 Both fold plates are swung up.
7 The clearing shields fold out.
8 The support feet are extended completely.
9 The pickup side section lowers until it is just above ground level.
10 As soon as these processes are completed, the diesel engine switches to idling
speed.
ADVICE
The fold plates and clearing shields are folded out using a timer. When the oil is very
cold, it may be that the automatic folding mechanism does not move the fold plates
and clearing shields all the way to the end-stop. In this case, please select with the R-
Select the function "Fold plates" and perform the final part manually.
You start the automatic folding by:
– Move the rotatable seat forward to the central position until the rotatable seat status
display on the R-Touch displays green (display between -25%/0%/+25%).
– Then press the "Look forward" foot-switch (2) and keep it pressed.
– Press the analogue rocker switch (7) to the right and let it latch into position. Con-
tinue to press the foot-switch (2) down. If the foot-switch (2) is released, then, for
safety reasons, all movements are stopped.
– Now, please put the analogue rocker switch (7) in the central position again. If you
have forgotten this, the following is displayed on the R-Touch:
