Operation
Folding the machine out/in
196 / 476
– Position the truck conveyor in the "left loading" direction.
When moving into this loading direction, the truck conveyor crosses over with the
counterweight arm.
– To do so, generally lift the counterweight all the way.
– Raise the truck conveyor articulation up to the end-stop.
– Lower the truck conveyor down to the end-stop.
– Rotate the swivel arm directly to the rear.
– Rotate the counterweight arm directly to the rear.
– Rotate the truck conveyor under the completely raised counterweight to the left
side of the machine.

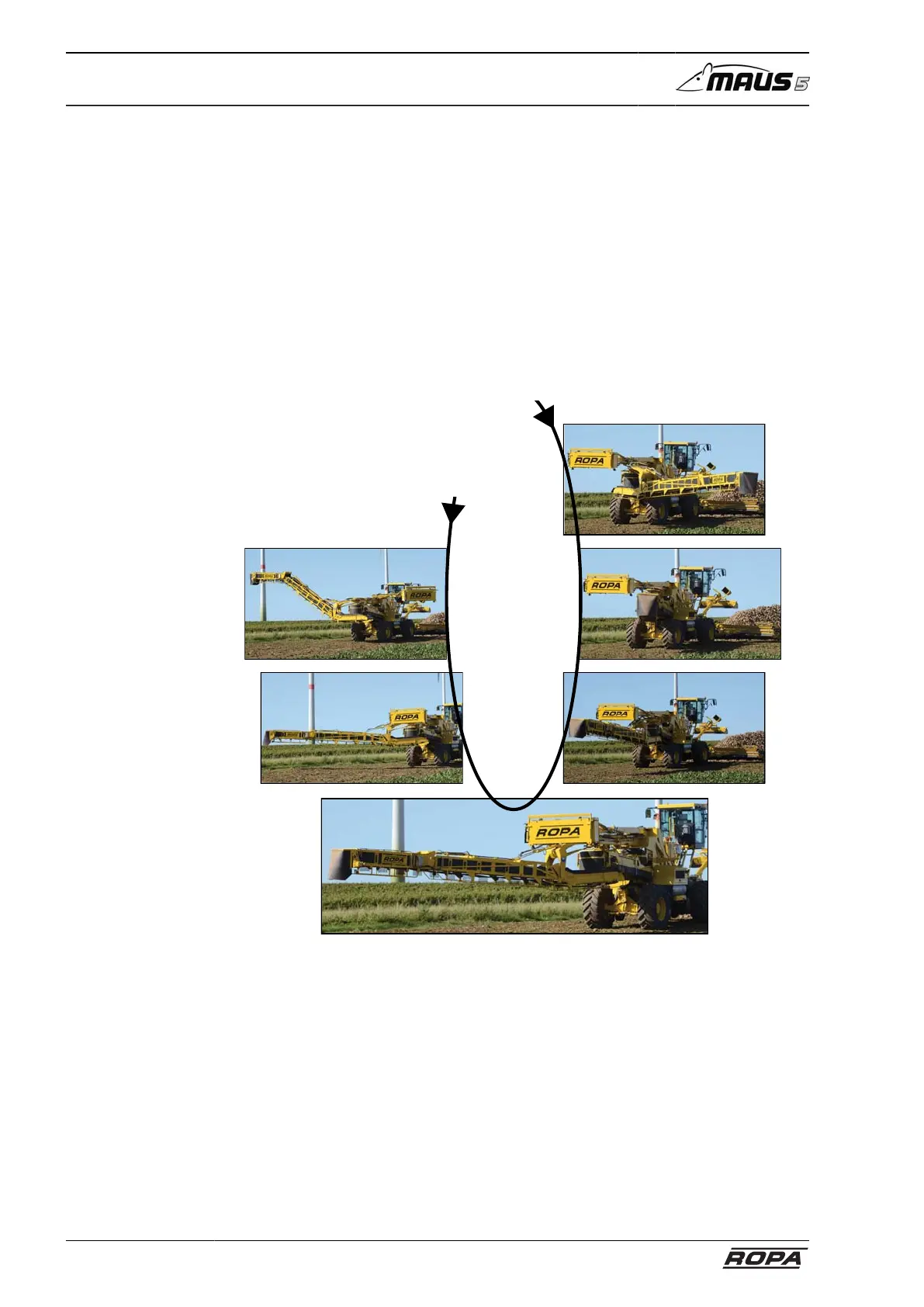

During fold-out:
Crossing over from right to left
During fold-in:
Crossing over back from left to right
