Operation
Folding the machine out/in
201 / 476
7 8 9

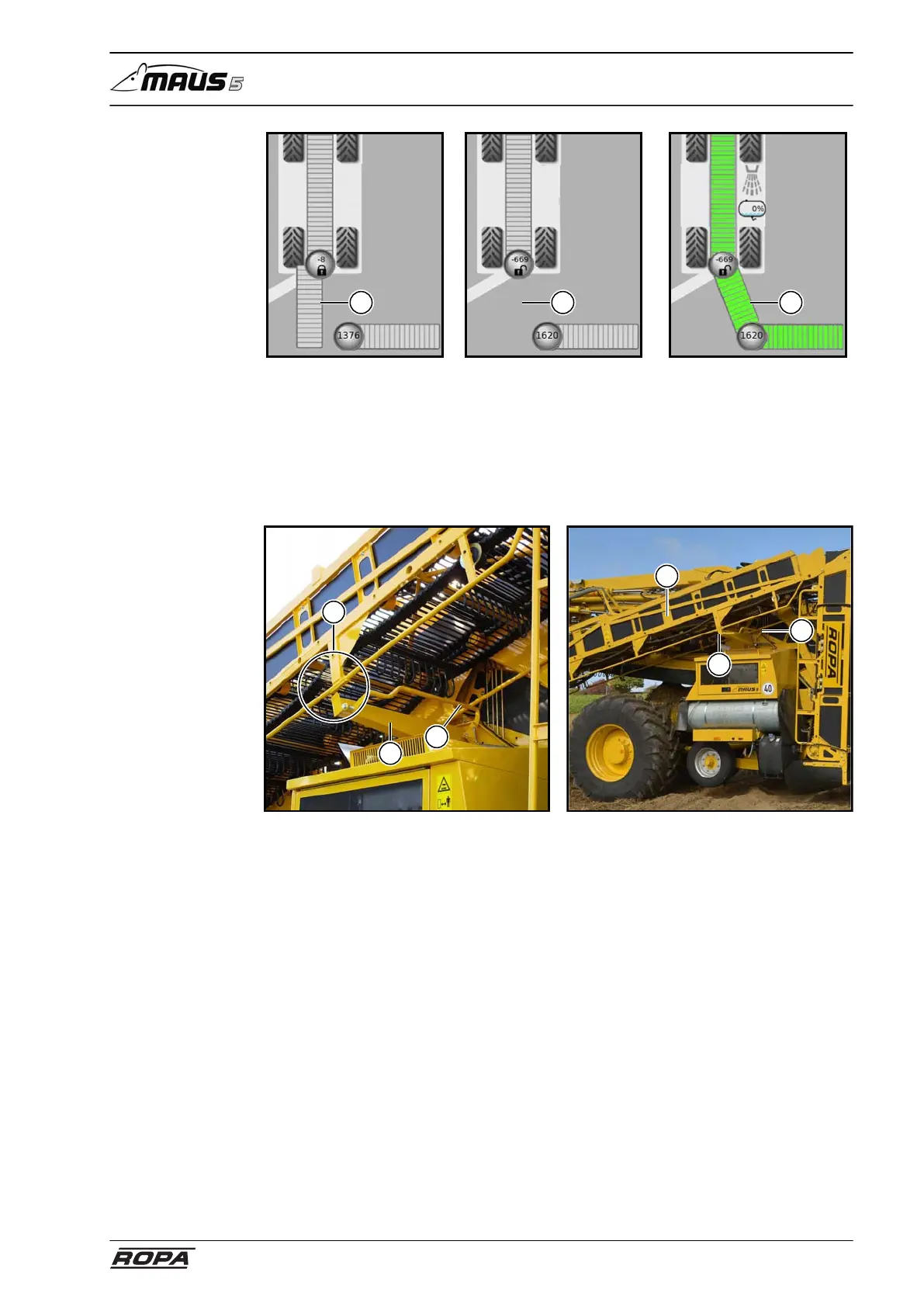

(7) Recleaner in transport position
(8) Recleaner neither in transport nor in working position
(9) Recleaner in working position
– Lower the truck conveyor articulation down to the end-stop.
– Turn the inner side of truck conveyor until it is just above the outer end of the trans-
port support (3).
2
3
4
2
3
4
Truck conveyor correctly rested on the
transport support
