Operation
Loading operation
218 / 476
3
4

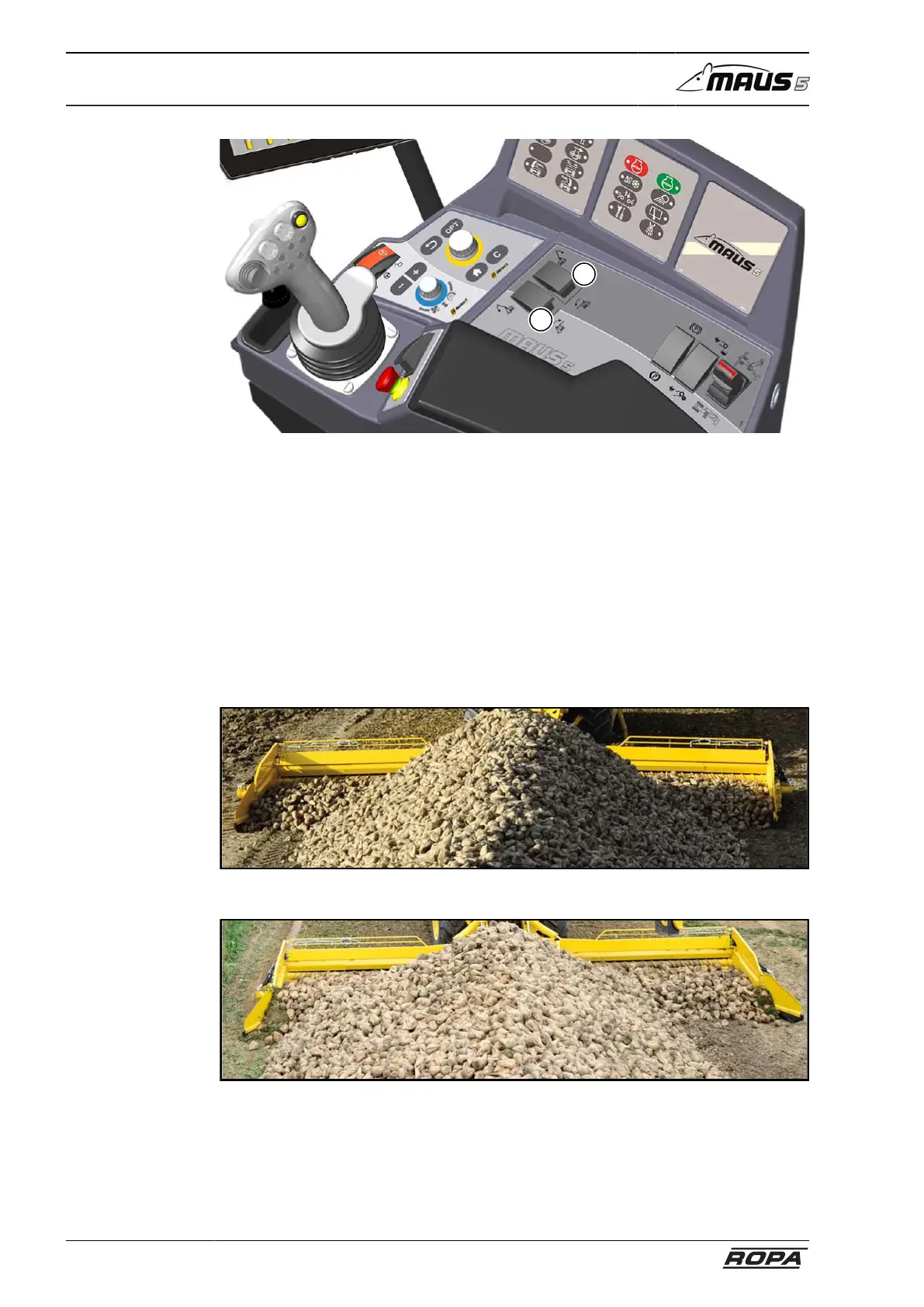

(3) Clearing shield left
press forward = unfold,
press backward = fold.
(4) Clearing shield right
press forward = unfold,
press backward = fold.
If you do not need the maximum pickup width, then please always set the clearing
shields straight forward. By doing so, you improve the beet flow to the outer ends of
the pickup.
Optimal setting of the clearing shields
Incorrect setting of the clearing shields. Heaps of earth within the clearing shield area
make no sense at all. Additional incorrect approach to the pile. Drive-in should be as
centred as possible.
