Maintenance and Service
Manual transmission (4-gear)
341 / 476
The machine has 2 models available for the traction drive:
Model 1; 1 traction drive engine Not available for machines with 40 km/h
Model 2: 2 traction drive engines Always installed in machines with
40 km/h
3
2
1
3
1
2
8
7
54
1 traction drive engine
3
2
1
3
1
2
86
7
54
2 traction drive engines

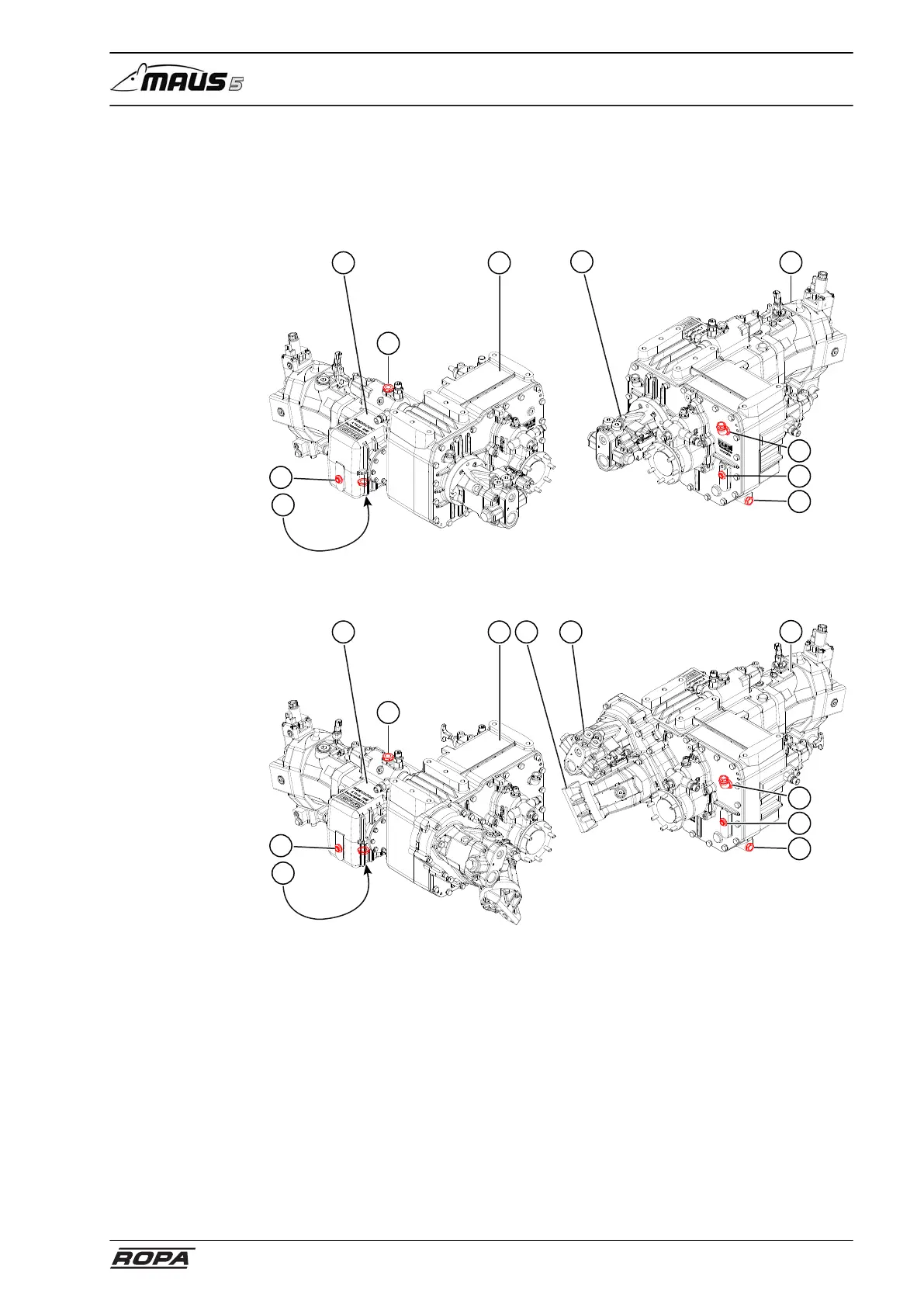

(1) Oil filling screw
(2) Inspection glass
(3) Oil drain screw
(4) Turtle/rabbit reduction gear
(5) Gear1/gear 2 manual transmission
(6) Traction drive engine 2
(7) Traction drive engine 1
(8) Emergency steering pump
