General View and Specifications
General view
43 / 476
35
29 30 31
33
32
34
36

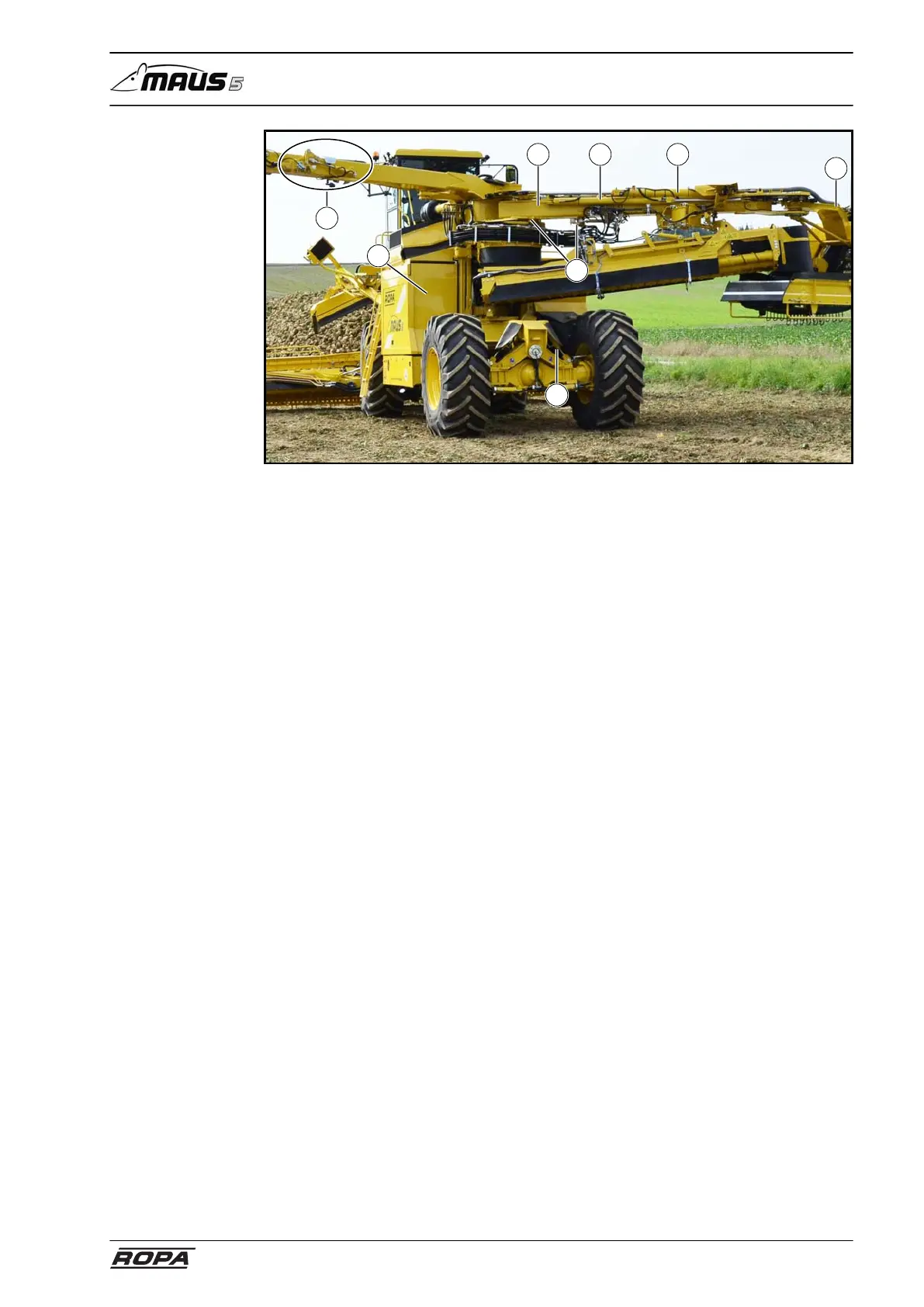

(29) Swivel arm
(30) Rotary drive for truck conveyor
(31) Rotary drive for swivel arm
(32) Swivel support for truck conveyor
(33) Swivel arm lock
(34) Cylinder axle support
(35) Storage compartment in the engine compartment
(36) Counterweight arm lock
