Section 05 ENGINE (4-TEC)
Subsection 06 (LUBRICATION SYSTEM)

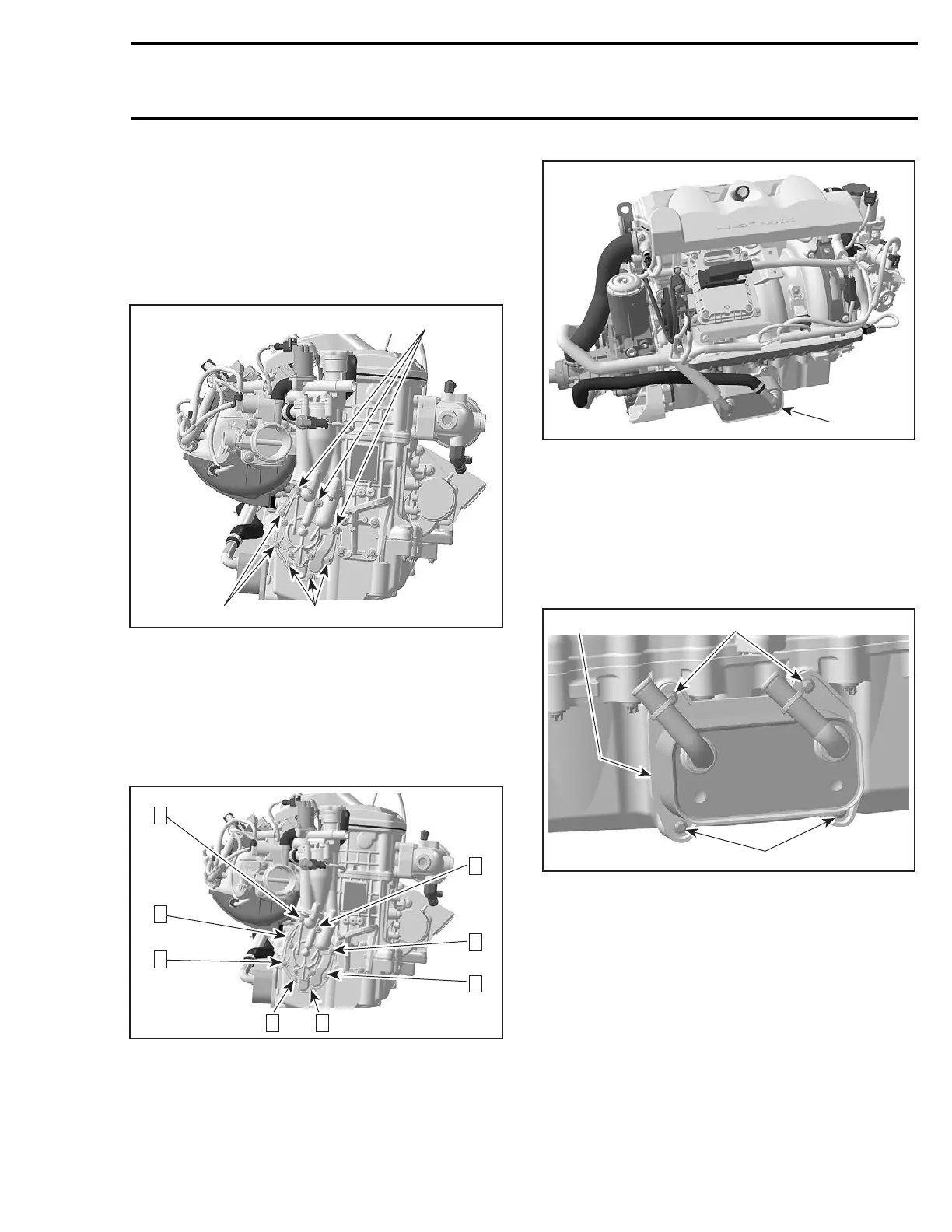

Check the inside of oil pump housing and its cover
for scoring or other damages and replace if dam-
aged.
Installation
For installation, reverse the removal procedure.
Pay attention to the following details.
2
1
R1503motr134A
2
1. Screws M6 x 85
2. Screws M6 x 25
Torque oil pump cover screws to 10 N•m
(89 lbf•in)
Tighten suction pump screws as per following se-
quence and torque to 10 N•m(89lbf•in). Apply
Loctite 243 (blue) on threads.
R1503motr145A
1
4
5
8
6
7
3
2
OIL COOLER
The oil cooler is located below the air intake man-
ifold.
1
R1503motr110A
TYPICAL
1. Oil cooler
Removal
Remove:
– cooling hoses no. 34 and no. 35
– retaining screws no. 36
– oil cooler no. 37
1
R1503motr147A
1
2
1. Screws
2. Oil cooler
– O-rings no. 38.
smr2004-Complete Line Up 251
