Section 14 STEERING SYSTEM
Subsection 01 (STEERING SYSTEM)
DISASSEMBLY
Handle Grip and Grip Insert
To remove handle grip no. 1, pull out cap no. 2
from grip end and remove screw no. 3 and washer
no. 4.
Pull out grip and remove grip insert from handle-
bar.
NOTE: Verify grip insert no. 5 for damage.

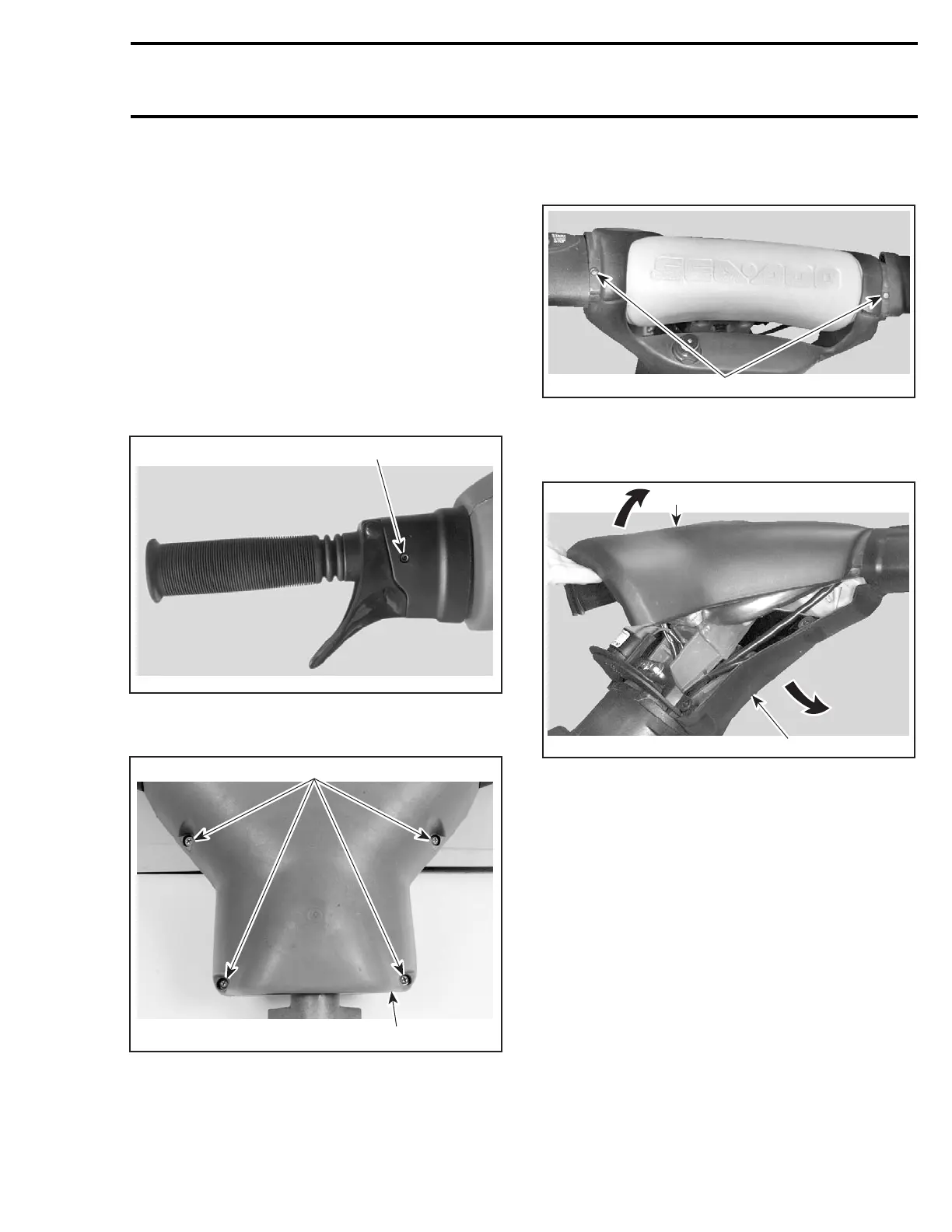

Steering Cover
To remove the steering cover no. 6,loosenset
screws no. 7 of handlebar housing.
F00K01A
1
1. Set screws
Remove 4 screws no. 8 and washers.
F00K02A
2
1
TYPICAL
1. Cover
2. Screws
Remove 2 screws no. 9 and flat washers each
side of cover.
1
F07K0JA
1. Remove screws
Detach upper and lower section of cover from
steering.
2
F07K0KA
1
1. Upper section
2. Lower section
Lever
Open engine compartment cover.
Remove the top section of the engine cover by
loosening the 10 Allen screws located inside the
cover.
