SeaDoo GTI User Manual

Section 05 ENGINE (4-TEC)
Subsection 07 (CYLINDER HEAD AND VALVES)
1
R1503motr95A
1

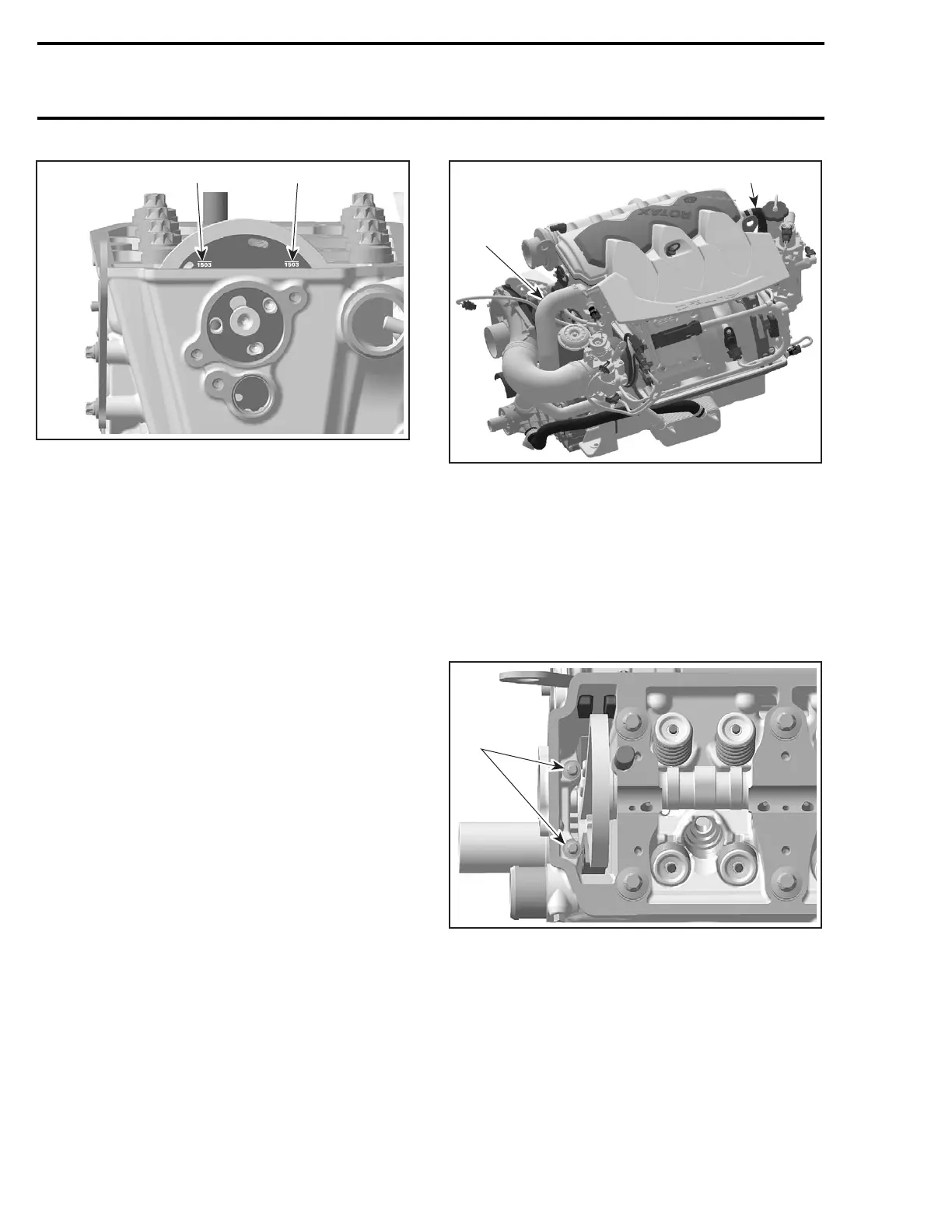

1. Position lines
CAUTION: Ensure to remove locking tools
when finished.
TIMING CHAIN
Refer to ENGINE BLOCK section.
CYLINDER HEAD
Removal
Lock crankshaft with crankshaft locking tool
(P/N 529 035 821) , refer to CRANKSHAFT LOCK-
ING in ENGINE BLOCK section.
Drain coolant (refer to COOLING SYSTEM).
Disconnect coolant temperature and camshaft po-
sition sensors (CTS and CAPS).
Remove:
– exhaust manifold (refer to EXHAUST MANI-
FOLD REMOVAL elsewhere in this section)
– engine hoses
1
R1503motr253A
2
TYPICAL
1. Coolant hose
2. TOPS ventilation hose
– chain tensioner (refer to CHAIN TENSIONER
REMOVAL in ENGINE BLOCK section)
– valve cover shield (see VALVE COVER RE-
MOVAL above)
– camshaft timing gear
– cylinder head screws M6 no. 16
1
R1503motr98A
1. Cylinder head screws M6
– cylinder head screws M11 no. 17 retaining
cylinder head to engine block.
