Section 05 ENGINE (4-TEC)
Subsection 04 (REMOVAL AND INSTALLATION)
REMOVAL AND INSTALLATION
GENERAL
Engine removal is necessary to repair BOTTOM
END.
ENGINE REMOVAL
Use the VCK (Vehicle Communication Kit) (P/N 529
035 981) and release the fuel pressure in the fuel
system. Refer to ENGINE MANAGEMENT sec-
tion.
In order to remove engine from watercraft pro-
ceed as follows.
First, disconnect battery cables from battery.
WARNING
Always disconnect battery cables exactly in
the specified order, BLACK negative cable
first then the RED positive battery cable last.
Electrical Connections
It is recommended to disconnect electrical con-
nections prior to disconnecting fuel lines.
Disconnect magneto wiring harness.
Disconnect ground battery cable from engine.
RXP 4-TEC Models
Disconnect ground wires from engine.
All Models

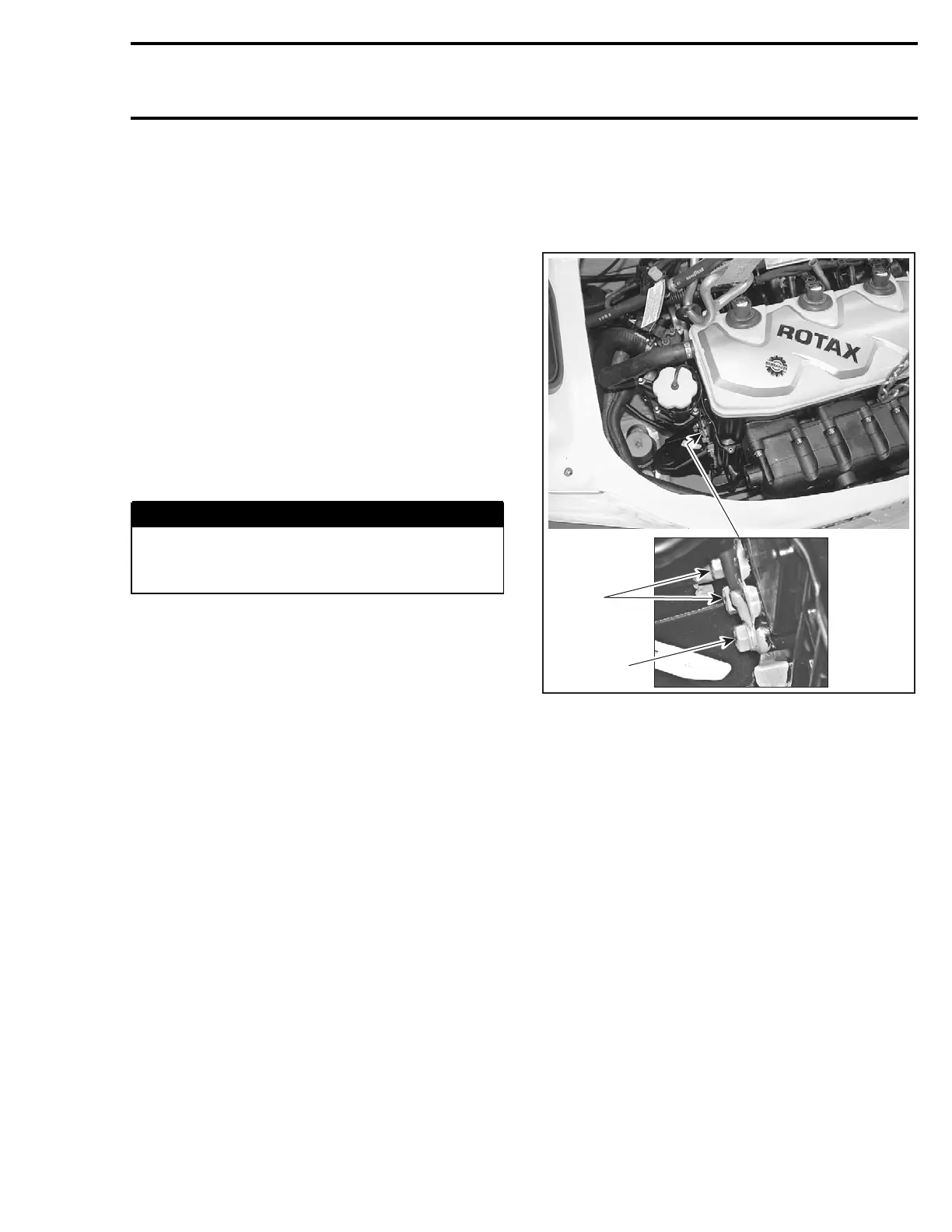

1
F19D0BA
2
1. Battery ground
2. Engine grounds
GTX 4-TEC Series
Disconnect the throttle position sensor (TPS),
manifold air pressure sensor (MAPS) and man-
ifold air temperature sensor (MATS) (refer to
INTAKE section).
Refer to ENGINE MANAGEMENT for location of
sensors and connectors.
RXP 4-TEC Models
Remove engine cover. Refer to HULL AND BODY.
Remove connectors from engine connector
bracket then disconnect. Refer to WIRING DIA-
GRAMS.
Disconnect ECM and remove from engine to pre-
vent any possible damage while pulling engine
out.
smr2004-Complete Line Up 217
