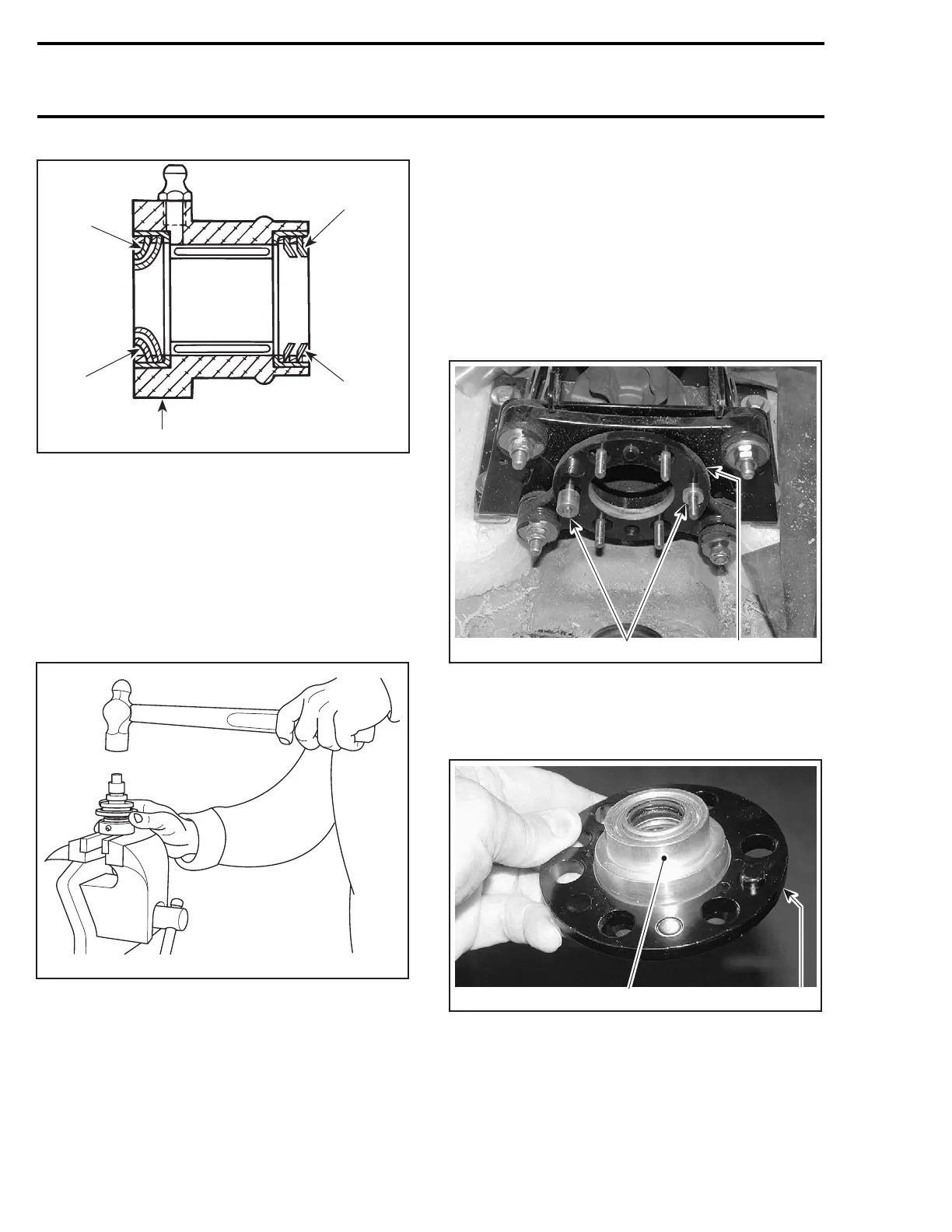

Section 13 PROPULSION
Subsection 02 (DRIVE SYSTEM)
F01J2FA
2
1
3
4
3
1. Double-lip seal toward engine
2. Double-lip seal with protector toward jet pump
3. Raised edge of lip outwards
4. Seal carrier
Apply Loctite 518 all around seals outside diame-
ter.
Seals no. 15 can be carefully installed in housing
using bearing/seal installer tool (P/N 295 000 107).
Push seals until tool comes in contact with hous-
ing.
F01J1YA
TYPICAL
Pack seals and bearing with synthetic grease
(P/N 293 550 01).
INSTALLATION
Installation is essentially the reverse of removal
procedure. However, pay particular attention to
the following.
Seal Carrier of Mid Bearing
XP DI Models
Install any of the alignment washers no. 22 as
shown. Insert bushings no. 27 in washer.
2
F00B22A
1
1. Alignment washer
2. Bushings
Insert seal carrier housing no. 17 in remaining
alignment washer.
2
F00B23A
1
1. Alignment washer
2. Seal carrier housing
Install alignment washer/seal carrier housing and
properly index alignment washers no. 22 together.
666 smr2004-Complete Line Up
