SeaDoo GTI - Shift Lever

Section13PROPULSION
Subsection 03 (REVERSE SYSTEM)
All Models

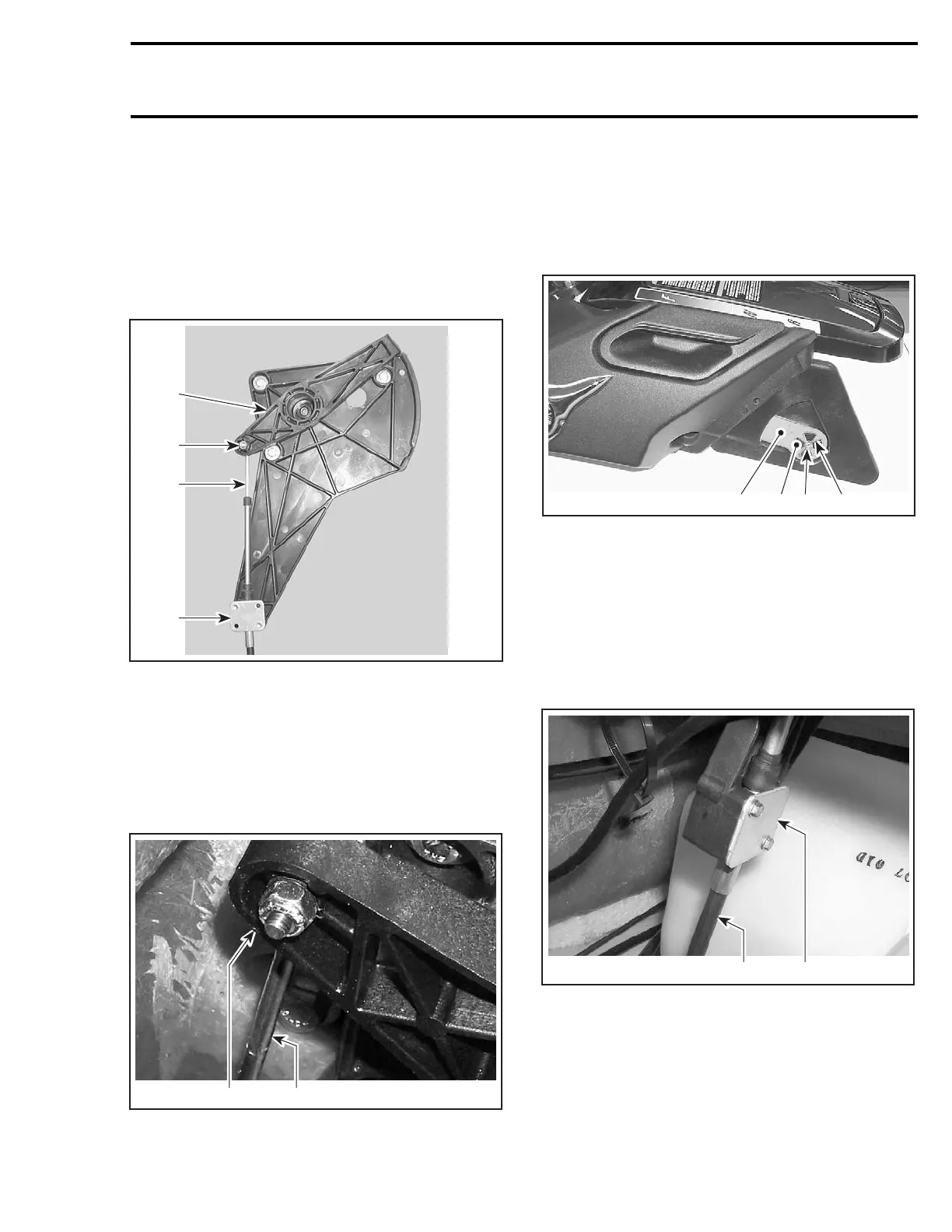

On the interior lever no. 3, unscrew the elastic
stop nut and the washer retaining the reverse ca-
ble.
Remove the bracket no. 6.
NOTE: Before removing reverse cable from hull,
note cable routing for reinstallation.
1
F18J1JA
2
3
4
1. Interior lever
2. Elastic stop nut and washer
3. Reverse cable
4. Bracket
Interior Lever
Detach the reverse cable from interior lever no. 3.
Unscrew the shift lever retaining bolt no. 4,wash-
er and nut, then remove interior lever.
1
F16J0DA
2
1. Reverse cable
2. Interior lever
Shift Lever
Unscrew the shift lever retaining bolt no. 4, wash-
er and nut.
Disengage the shift lever slots from interior lever
tabs, then remove the shift lever no. 5.
4
F18J1KA
31 2
1. Shift lever retaining bolt
2. Shift lever slot
3. Interior lever tab
4. Shift lever
Reverse Cable Support
Remove:
– shift lever
– interior lever
– bracket no. 6
2
F16J0FA
1
1. Bracket
2. Reverse cable
– bolts no. 7.
Withdraw reverse cable support no. 8.
