Section 16 HULL/BODY
Subsection 01 (ADJUSTMENT AND REPAIR)
– medium compound (white)
– fine compound (white)
– wax.
THRU-HULL FITTING
INSTALLATION
All Models except 4-TEC Models
For hull insert repair proceed as follows:

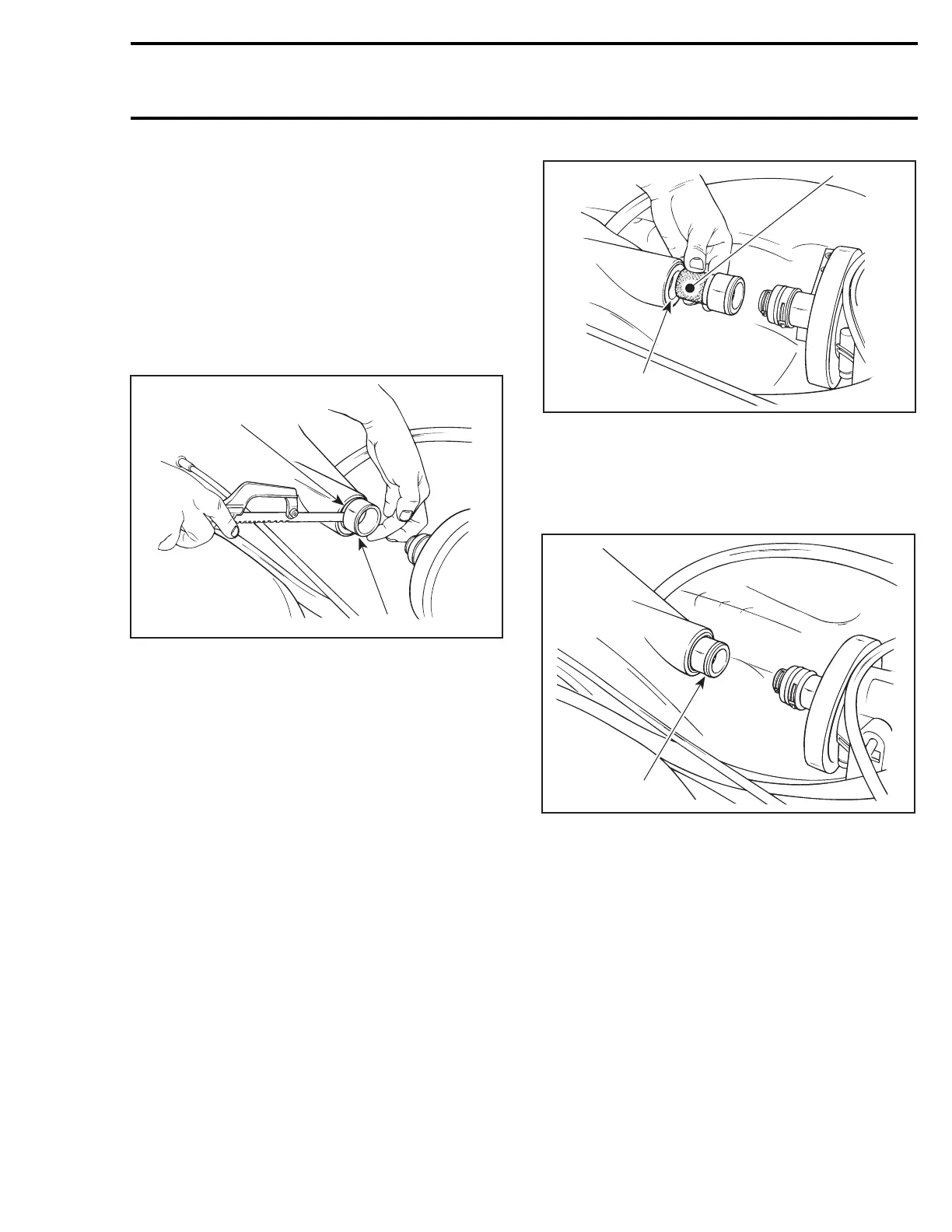

Cut plastic hull insert flush with hull using a saw.
F01L2UA
1
2
1. Hull
2. Plastic hull insert
Mix epoxy glue (3M-05895), follow manufacturer
instructions.
Apply epoxy glue on aluminum insert (P/N 292 000
075) knurled surface and on plastic insert inner
bore.
CAUTION: If you notice any clearance between
plastic insert and aluminum insert, fill gap
with epoxy glue to obtain good adhesion of
aluminum insert.
F01L2VA
1
2
1. Knurled surface
2. Inner bore
Install aluminum insert into plastic hull insert.
NOTE: Align aluminum insert as much as possible
with PTO flywheel.
F01L2WA
1
1. Aluminum insert
NOTE: The epoxy glue curing time is 30 minutes.
smr2004-Complete Line Up 761
