Section 16 HULL/BODY
Subsection 01 (ADJUSTMENT AND REPAIR)

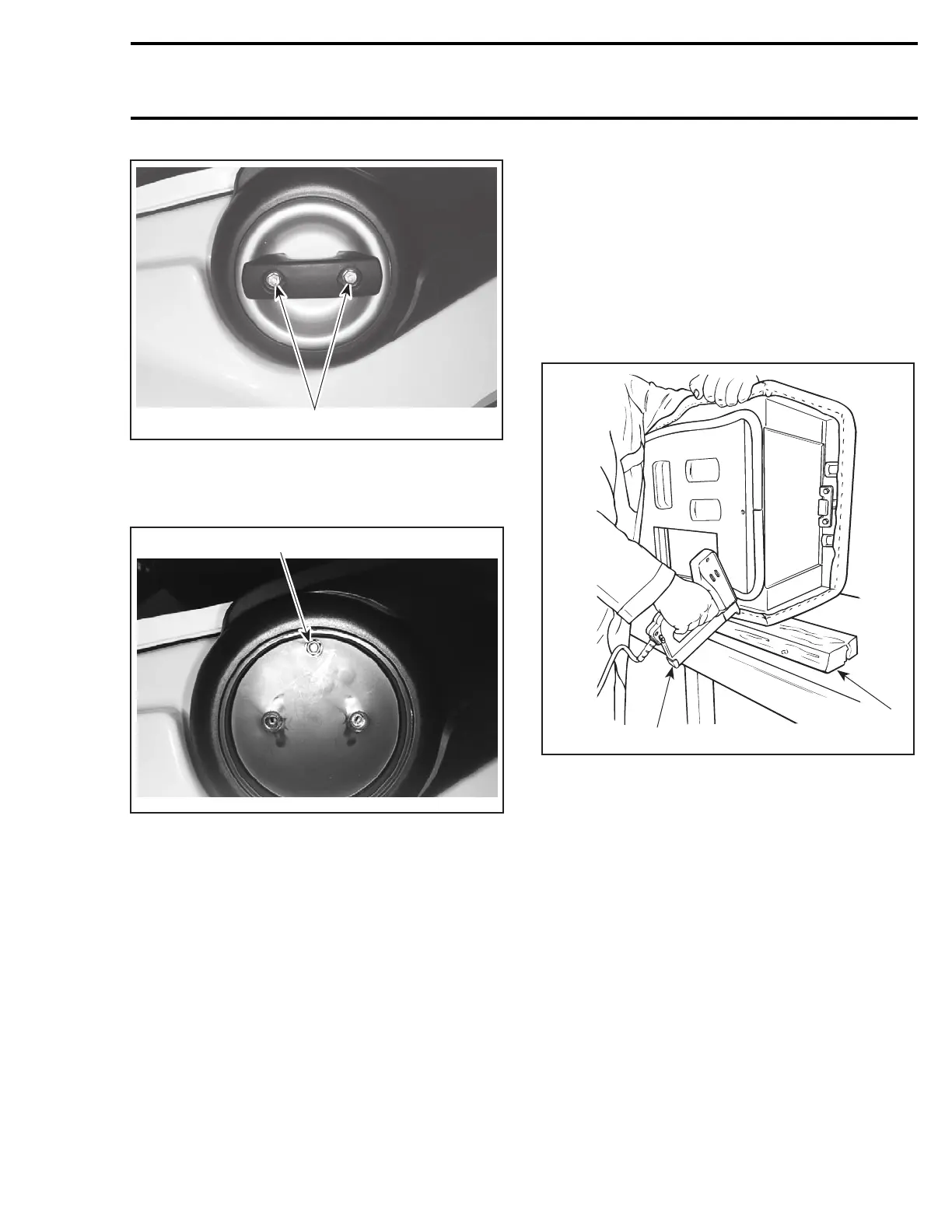

F08L1EA
1
1. Loosen screws of eyelet
Remove cup no. 21 on each side of seat.
Loosen nut no. 23 on each side of seat.
1
F08L1FA
1. Loosen nut
Tilt seat.
Loosen screws no. 24 on each side of seat retain-
ing the side covers.
Lower seat.
Remove side covers.
Pull seat frame out of pivots.
Remove seat.
Seat installation is essentially the reverse of re-
moval procedure. Refer to the main illustration of
seat at the beginning of this subsection for proper
torque specifications and service products to be
used.
SEAT COVER REPLACEMENT
Install staples with an electric tacker such as Ar-
row tacker no. ETN-50 or with a manual tacker
such as Arrow tacker no. T-50.
NOTE: For an easier installation, it's highly recom-
mended to use an electric tacker.
Ensure that the seat rest firmly against a hard sur-
face such as a piece of wood. This is done to get
the staples completely pushed in place.
F01L3YA
2
1
TYPICAL
1. Piece of wood
2. ETN-50 (electric) or T-50 (manual)
After cover installation cut all around the excess
of material.
BUMPER REPLACEMENT
GTI Series and XP DI Models
– Remove trim no. 5 from side bumper rail no. 4.
– Drill pop rivets no. 12 to remove side bumper
rail no. 4.
– Mark hole positions on body straight and bow
sections.
smr2004-Complete Line Up 753
