Section 16 HULL/BODY
Subsection 01 (ADJUSTMENT AND REPAIR)
F08L1TA
6 4
8 2
7 1
5
3
GTX 4-TEC Series and RXP 4-TEC Models
Properly seal and reinstall hose fittings to ride
plate.

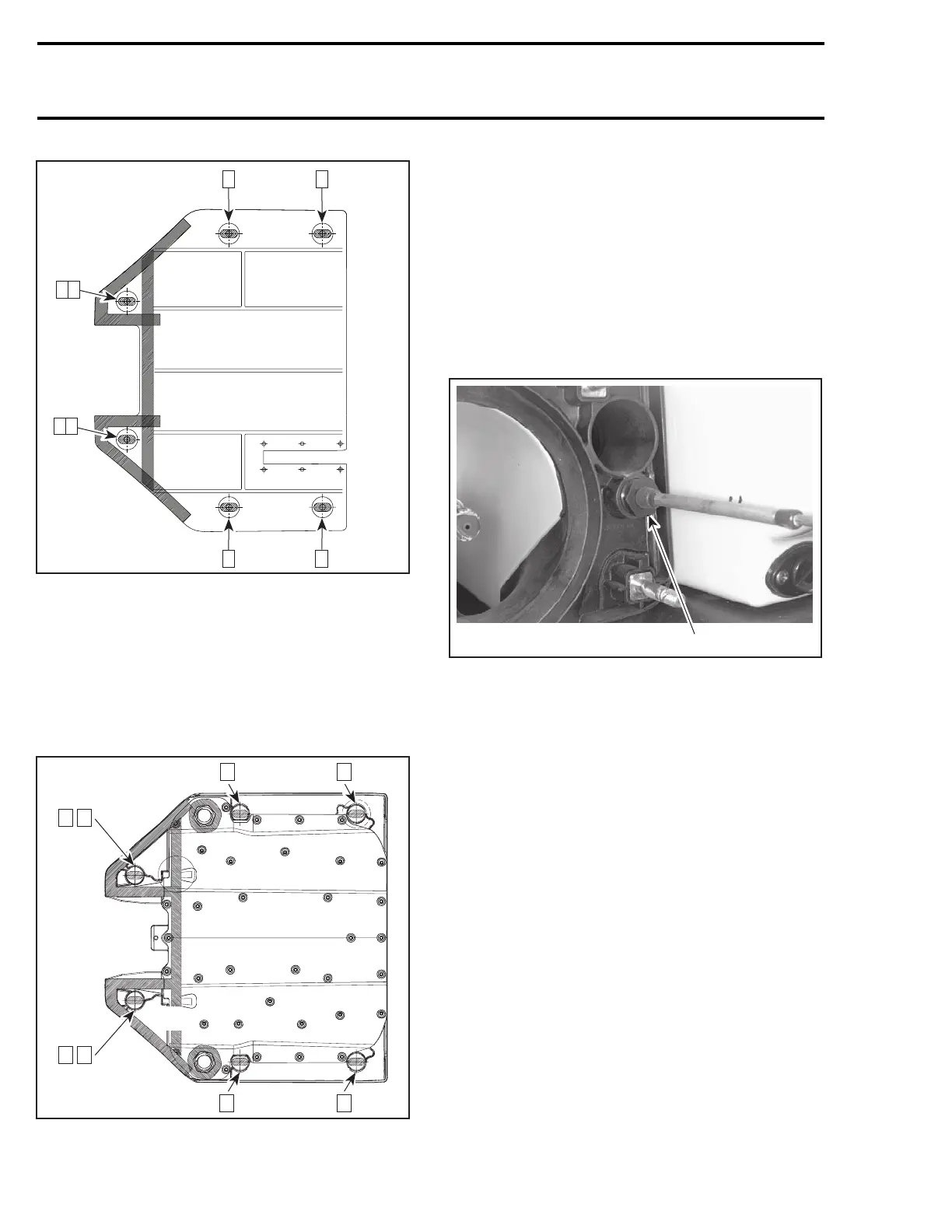

Apply Loctite 5900 (P/N 293 800 066) as indicat-
ed by the shaded areas in the next illustrations.
Follow also the torquing sequence as shown in
the same illustration. Torque screws to 26 N•m
(19 lbf•ft).
3
F18L26A
4
5
17
28
6
Reinstall hoses to ride plate and refill cooling sys-
tem. Refer to COOLING SYSTEM.
JET PUMP SUPPORT
Removal
Remove jet pump. Refer to JET PUMP.
Remove inlet grate and riding plate.
Remove ball joint, boot, nut, half rings and O-rings
from steering cable.
F05K02A
1
TYPICAL
1. Unscrew nut
Remove ball joint, boot, nut, half rings and O-rings
from reverse cable.
Remove boot and nut from VTS sliding shaft (XP
DI and RXP 4-TEC models).
Disconnect water supply hose, water return hose
and bailer hoses.
Remove nuts, lock washers and flat washers re-
taining jet pump support.
