Section 04 ENGINE (2-STROKE)

Subsection 05 (BOTTOM END)

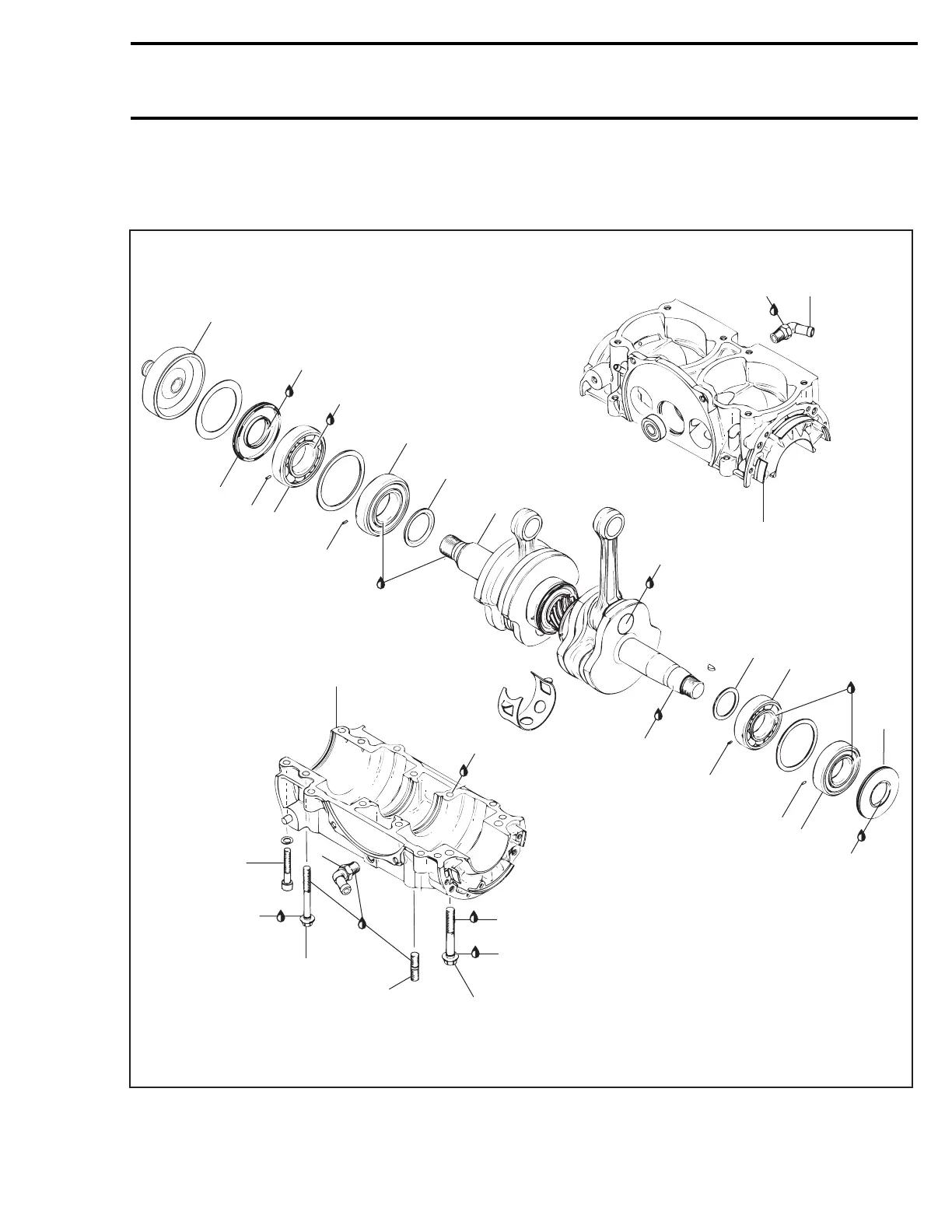

BOTTOM END

717 Engines

24 Nm

(17 lbfft)

Loctite

518

Molykote

111

Anti-seize

lubricant

110 Nm

(81 lbfft)

Anti-seize

lubricant

Loctite

642

Anti-seize

lubricant

Loctite

243

Loctite

5910

24 Nm

(17 lbfft)

10 Nm

(89 lbfin)

Loctite

518

Loctite

518

40 Nm

(30 lbfft)

F00D0YU

Molykote

111

Molykote

111

Molykote

111
