Section 06 ENGINE MANAGEMENT (RFI)
Subsection 06 (REMOVAL AND INSTALLATION )

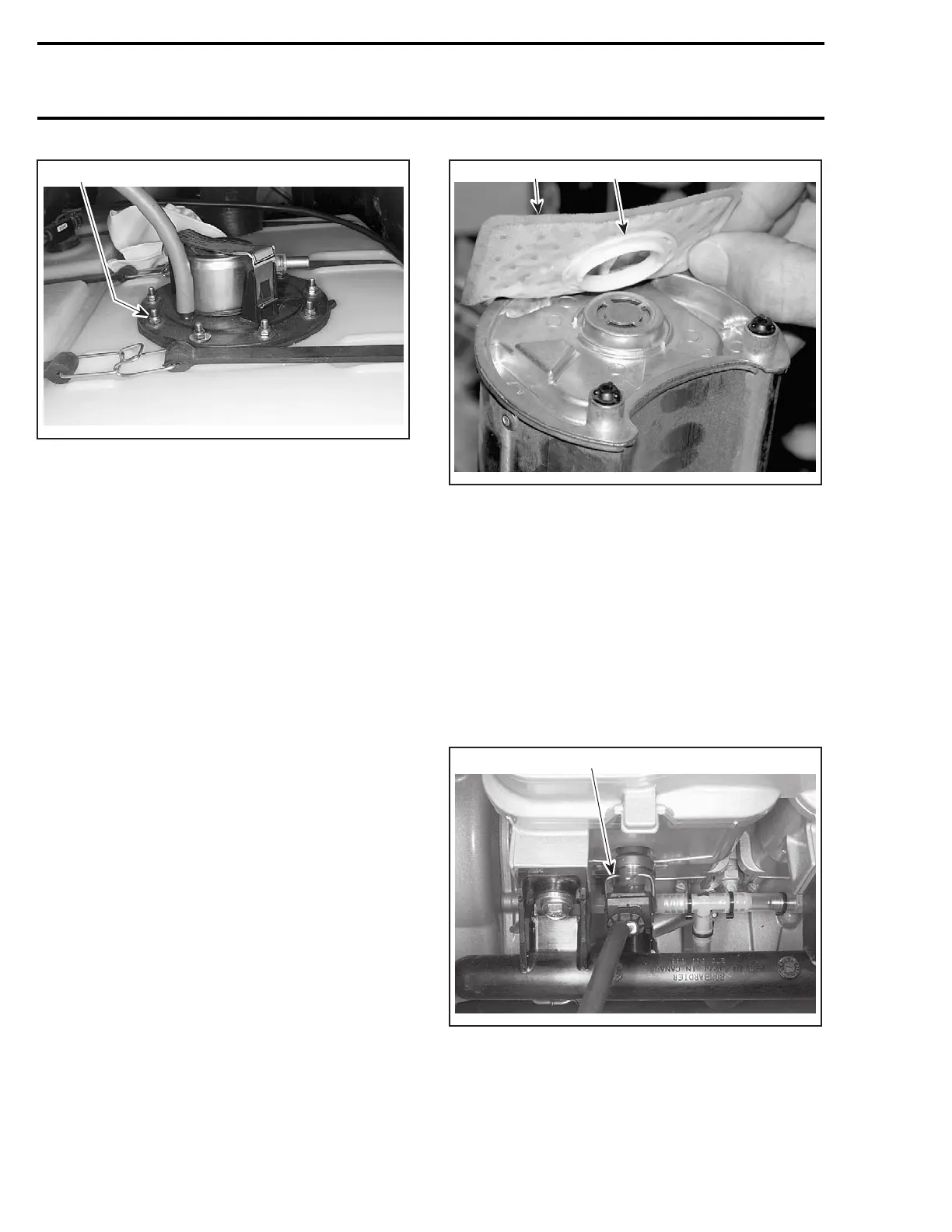

1
F07F0DB
1. Loosen nuts
CAUTION: While pulling out the fuel pump, pay
attention to fuel sensor float arm. Float arm
can get stuck and bend which can reduce the
fuel sensor capabilities.
Remove fuel pump assembly from fuel tank.
REGULATOR
The regulator is not serviceable. Replace the fuel
pump assembly if the regulator is defective.
FUEL FILTER
Replacement
NOTE: The filter does not require replacement un-
der normal operating conditions. Replace only if
permanently clogged or damaged.
The fuel pump assembly has to be removed from
the fuel tank to have access to the fuel filter. Refer
to the section above for more detail.
Remove fuel pump.
Turn fuel pump up side down. Using a small flat
screwdriver, remove the fuel filter by prying the
inner plastic ring.
1
F18R0EA
2
1. Fuel filter
2. Inner plastic ring
FUEL INJECTORS
Place a suitable container below the quick connect
fitting of the fuel rail.
Cover the quick connect fitting of the fuel rail with
a shop towel.
Press on both tabs and disconnect the quick con-
nect fitting.
Disconnect the wire connectors of both fuel injec-
tors.
F07F0RA
1
1. Press retaining clip to unlock the connector
Loosen both screws retaining the fuel rail to the
cylinders.
324 smr2004-Complete Line Up
