Section 06 ENGINE MANAGEMENT (RFI)

Subsection 03 (COMPONENT INSPECTION )

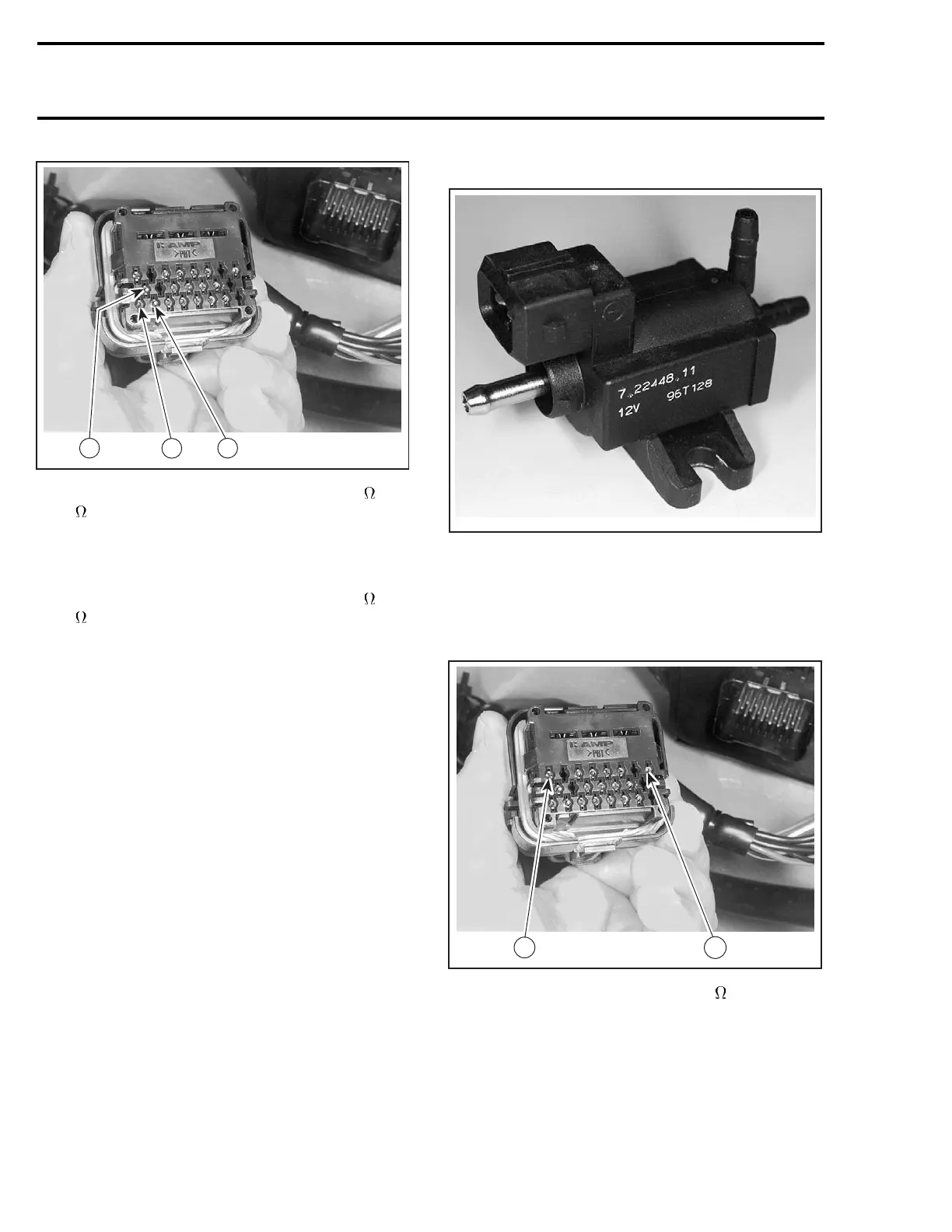

F07F15F

The resistance should be between 3.4 k and

8.2 k

Check also the resistance between terminal 2

(BLACK/BLUE wire) and terminal 1 (PURPLE/

BLUE wire) of the plug connector.

The resistance should be between 2.4 k and

8.2 k

If not within specification, disconnect the connec-

tor of the air pressure sensor and check resistance

of wiring harness and terminals between AMP

plug connector and APS sensor connector.

Reconnect the air pressure sensor connector and

recheck the resistance value between terminals in

the AMP plug connector #4.

If not within specification, replace the air pressure

sensor.

Voltage Test

If the sensor resistance value is within specifica-

tions, disconnect the plug connector from the APS

sensor and check the voltage between the PUR-

PLE/BLUE wire and the BLACK/BLUE wire in the

wiring harness from the MPEM.

Install safety lanyard. There should be 5 Vdc.

RAVE SOLENOID

F07D0GA

RAVE SOLENOID

Disconnect the AMP plug connector #4 from the

MPEM module.

Check resistance value between terminal 16 and

terminal 23 on the plug connector.

F07F15G

2316

The resistance value should be 30 .

316 smr2004-Complete Line Up
