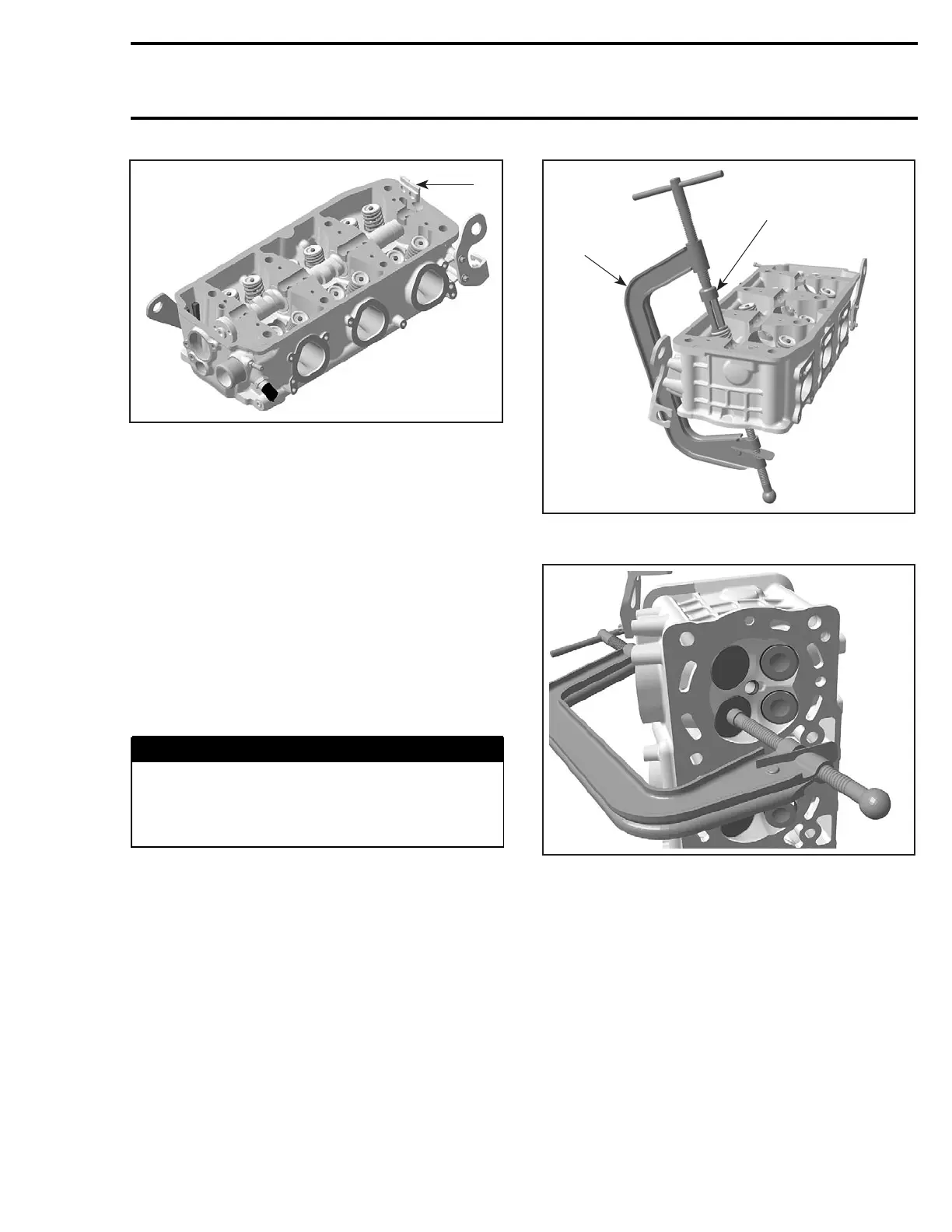

Section 05 ENGINE (4-TEC)
Subsection 07 (CYLINDER HEAD AND VALVES)
1
R1503motr101B
1. Camshaft lock position
For other parts, refer to proper installation proce-
dure.
VALVE SPRING
Removal
Remove:
rocker arms
cylinder head.
Compress valve springs no. 22 and no. 23.Use
valve spring compressor clamp (P/N 529 035 724)
and valve spring compressor cup (P/N 529 035
725).
WARNING
Always wear safety glasses when disassem-
bling valve springs. Be careful when unlock-
ing valves. Components could fly away be-
cause of the strong spring preload.
2
1
R1503motr103A
1. Valve spring compressor clamp
2. Valve spring compressor cup
R1503motr104A
LOCATE VALVE SPRING COMPRESSOR CLAMP IN
CENTER OF THE VALVE
Remove valve cotters no. 24.
Withdraw valve spring compressor, valve spring
retainer no. 25 and valve springs.
smr2004-Complete Line Up 265
