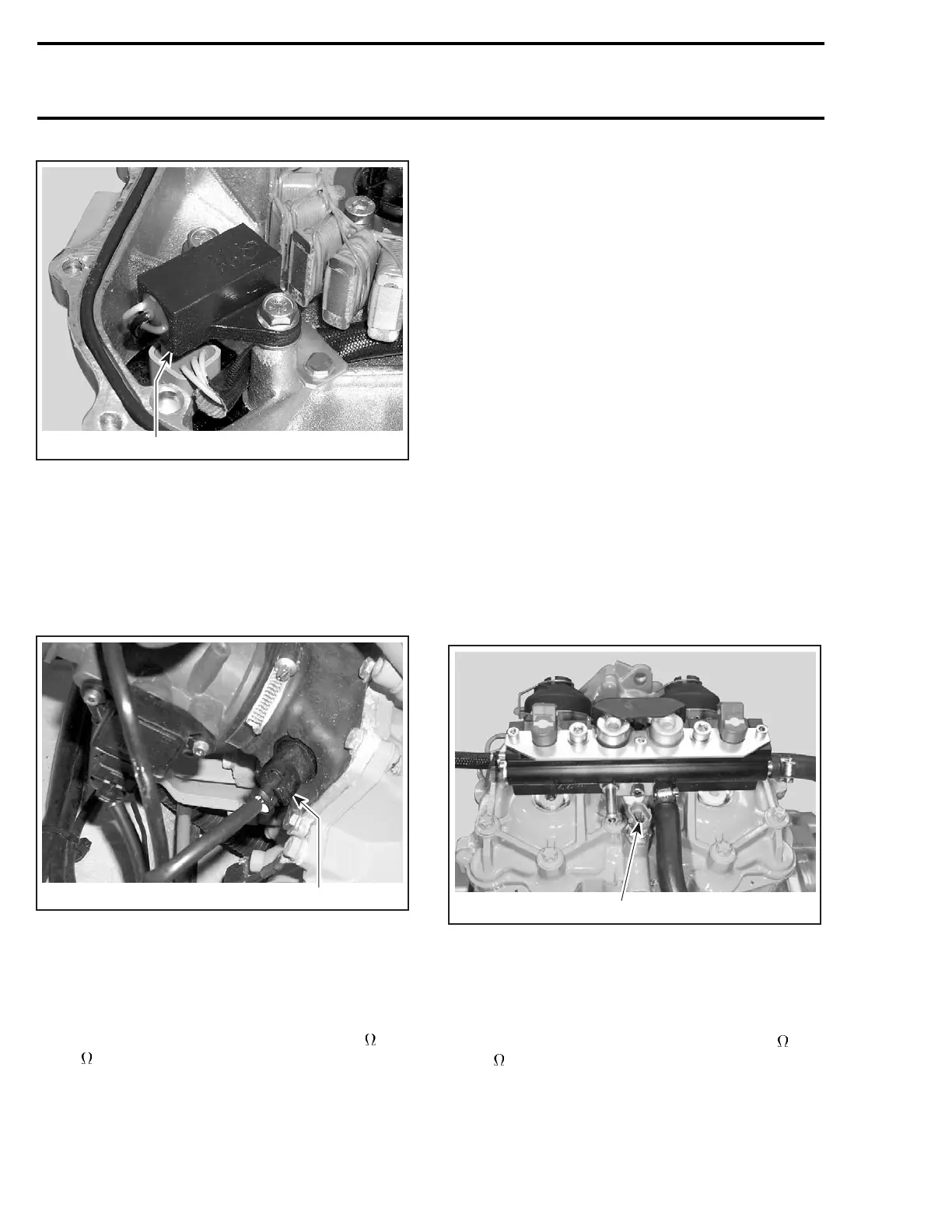

Section 07 ENGINE MANAGEMENT (DI)
Subsection 02 (COMPONENT INSPECTION AND ADJUSTMENT)
1
F12R0NA
1. CPS inside magneto cover
Apply Loctite 243 on screw threads then install the
new CPS.
Reinstall remaining removed parts.
MANIFOLD AIR TEMPERATURE
SENSOR (MATS)
1
F12R0MA
PTOSIDETHROTTLEBODY
1. Manifold air temperature sensor (MATS)
Resistance Test
Disconnect the connector from the MATS and
check the resistance of the sensor itself.
The resistance should be between 2280 and
2740
.
Otherwise, replace the MATS.
If resistance tests good, reconnect the MATS and
disconnect the AMP connector number 4 on the
MPEM.
Using a multimeter, recheck resistance value be-
tween terminals 16 and 19.
If resistance value is correct, try a new MPEM.
Refer to MPEM REPLACEMENT procedures else-
whereinthissection.
If resistance value is incorrect, repair the wiring
harness/connectors between AMP connector and
the MATS.
Replacement
Remove the air intake silencer.
Remove the air duct.
Disconnect the connector of the MATS.
Pull MATS out while turning right and left.
Install the new MATS.
Reinstall remaining removed parts.
WATER TEMPERATURE
SENSOR (WTS)
1
F12R0PA
1. Water temperature sensor (WTS)
Resistance Test
Disconnect the connector from the WTS and
check the resistance of the sensor itself.
The resistance should be between 2280
and
2740
.
Otherwise, replace the WTS.
362 smr2004-Complete Line Up
