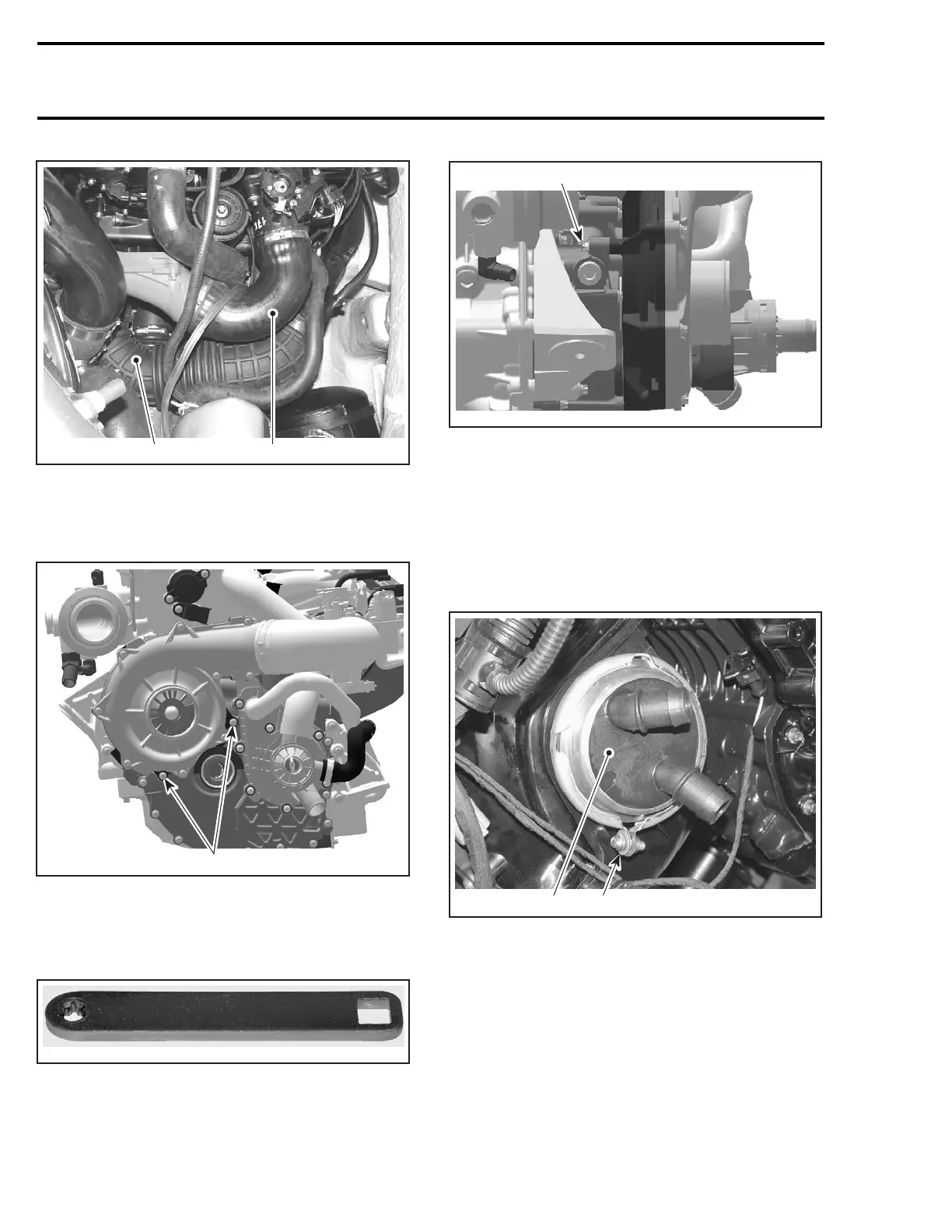

Section 05 ENGINE (4-TEC)
Subsection 02 (INTAKE SYSTEM)
1
R1503motr224A
2
1. Inlet hose
2. Outlet hose
Remove retaining screws and pull out the super-
charger ass'y.
R1503motr225A
1
1. Retaining screws
To remove the upper screw (not shown on the
picture above), use the Torx adapter (P/N 529 035
938).
F00B20A
1
R1503motr250A
1. Upper retaining screws
DISASSEMBLY
Air Intake Manifold
4-TEC Supercharged Intercooled Engines
Intercooler
Remove collar from intercooler.
1
F19D0DB
2
1. Intercooler
2. Collar
Carefully pull intercooler out of air intake manifold.
198 smr2004-Complete Line Up
