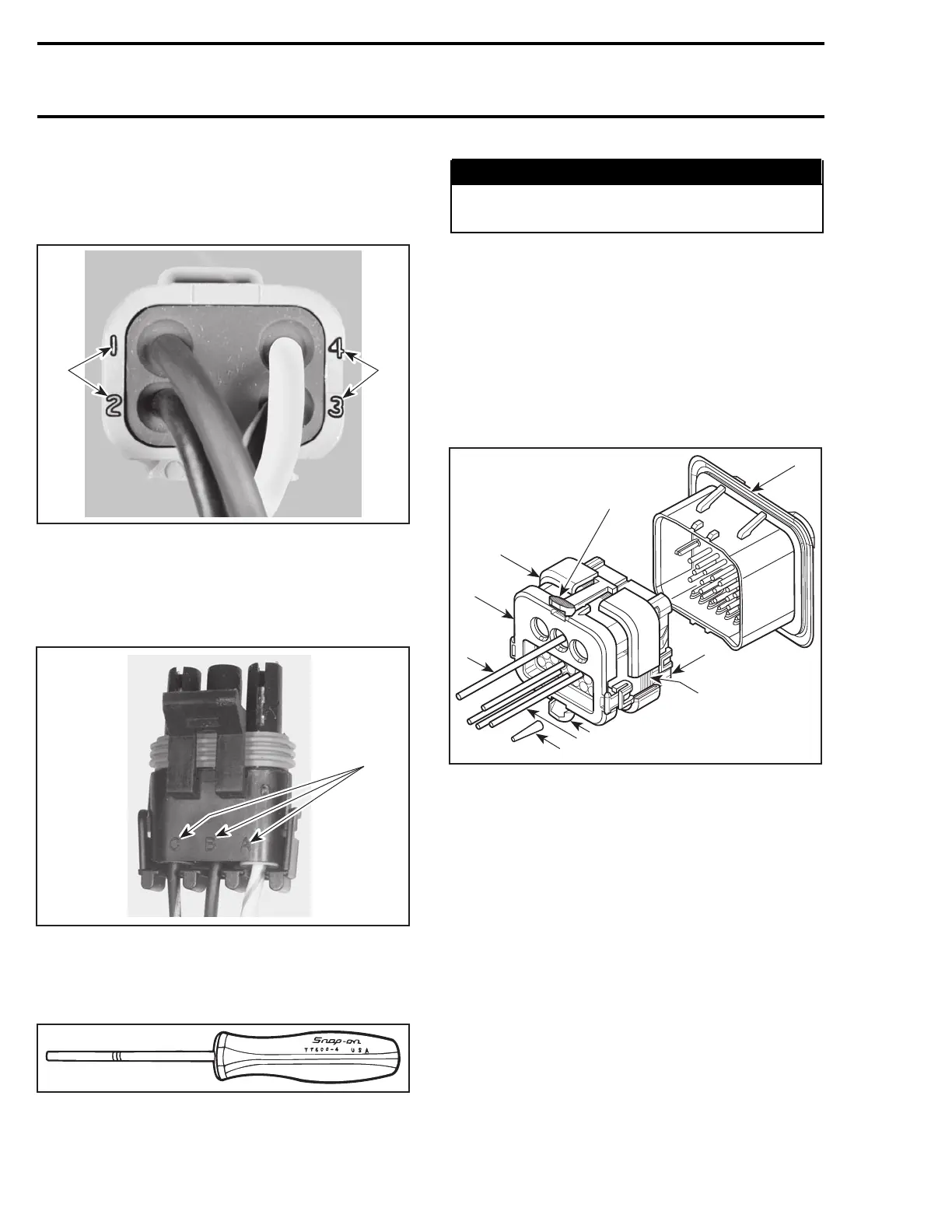

Section 18 WIRING DIAGRAM
Subsection 01 (WIRING DIAGRAMS)
– Pullbackontheterminalwiretobesurethe
retention fingers are holding the terminal.
– After all required terminals have been inserted,
the lock must be installed.
F04H6LA
1 1
1. Wire identification numbers
PACKARD CONNECTOR
Packard connectors are used to connect electrical
harnesses and gauges.
F04H45A
1
A
BC
VIEW OF A 3-PIN PACKARD CONNECTOR
1. Identification letters
To remove terminal from Packard connector, use
Snap-on TT600-4 tool.
F01B1JA
WARNING
Ensure all terminals are properly crimped on
wires and connector are properly fastened.
AMP PLUG CONNECTOR
These connectors are found on the MPEM.
When servicing electrical system, special care
must be taken when working with AMP plug
connectors in order to prevent any malfunction of
the system.
Description
F00H0WB
2
3
4
5
6
7
8
9
9
1
AMP PLUG CONNECTOR
1. Male connector
2. Cover assembly
3. Mating seal
4. Wedge lock
5. MPEM connector
6. Seal plug
7. Power wire
8. Signal wire
9. Locking tab
Removal
To remove the male connector from the MPEM,
press both tabs and pull connector.
790 smr2004-Complete Line Up
