Section 18 WIRING DIAGRAM

Subsection 01 (WIRING DIAGRAMS)

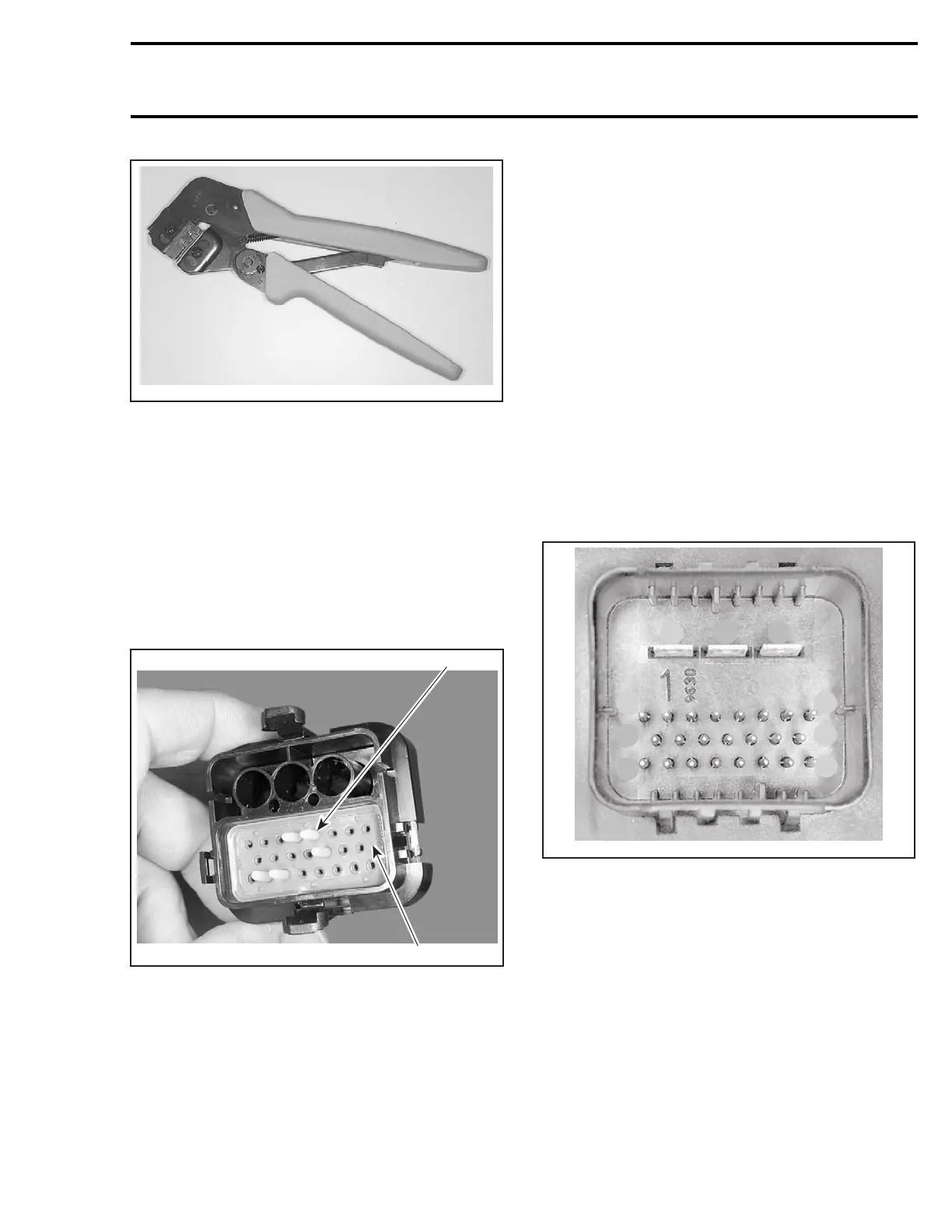

F00B0EA

CRIMPING TOOL

All circuits are sealed by a diaphragm in the rubber

wire seal. When installing a terminal in connector,

the diaphragm is pierced as the terminal passes

through it.

If the diaphragm is pierced and the cavity is not

used, install a seal plug, large end first, into circuit

cavity as far as it will go.

NOTE: It is suggested that all unused circuit cav-

itiesbesealedwithasealplug,eveniftheyare

not pierced.

F00H10A

1. Seal plug

2. Wire seal

CAUTION: Do not pierce the diaphragm with

a sharp point when performing electrical trou-

bleshooting. The resulting pinholes in the in-

sulation will allow moisture to penetrate the

system and possibly result in system failure.

Terminal Installation

For insertion of signal terminal, make sure the

wedge lock is in the open position.

NOTE: For insertion of power terminal, the wedge

lock may or may not be on the open position.

Insert terminal into appropriate circuit cavity and

push as far as it will go.

Pull back on the terminal wire to be sure the reten-

tion fingers in the connector are holding the con-

tact properly.

After all required terminals have been inserted,

the wedge lock must be closed to its locked po-

sition.

IDENTIFICATION OF CONNECTOR

PINS

AMP Connectors of MPEM

F04H6RA

smr2004-Complete Line Up 793
