Section10FUELSYSTEM
Subsection 02 (AIR INTAKE (2-STROKE))
REMOVAL

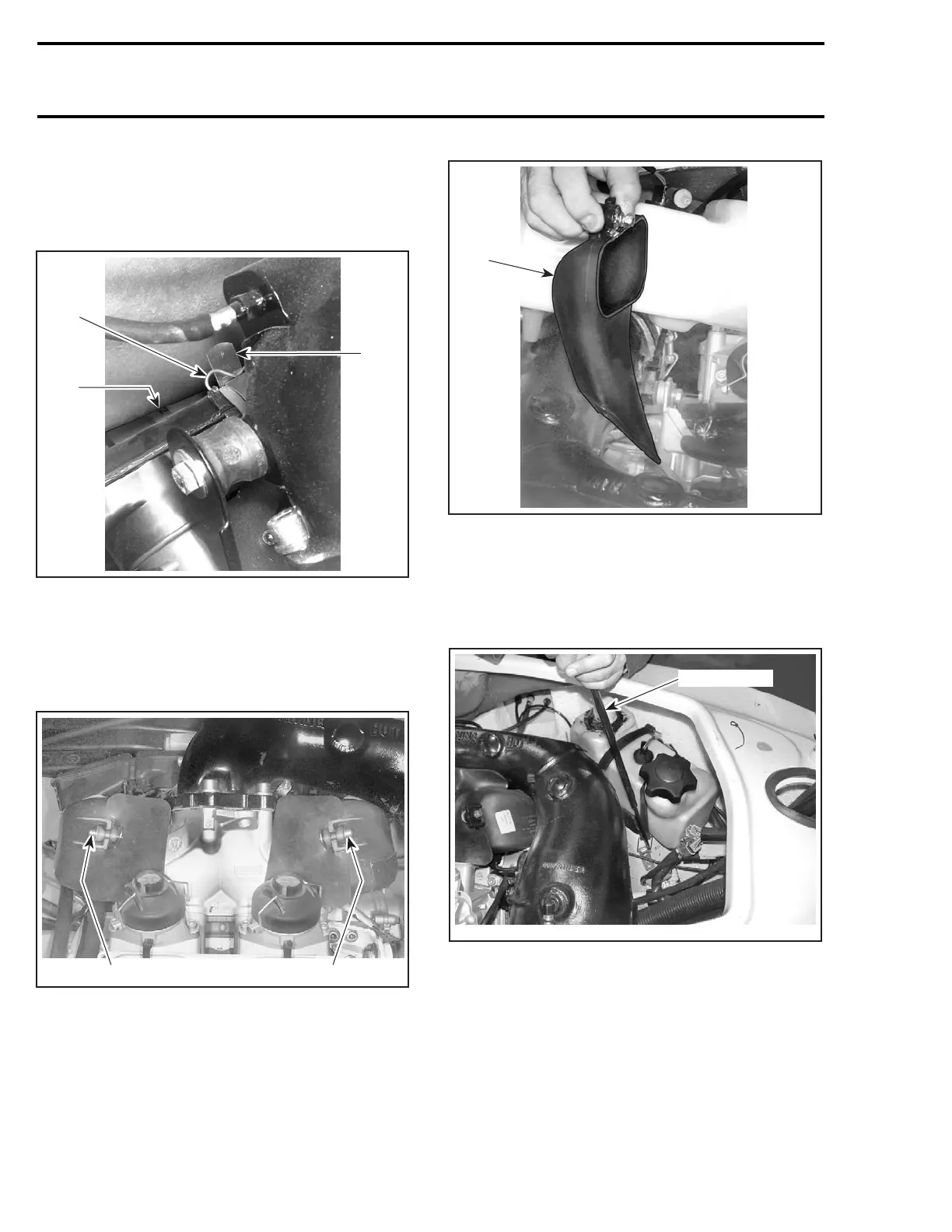

Air Intake Silencer
Pull hair pin out to allow removal of clip no. 1.
2
F00F0FA
3
1
1. Air intake silencer
2. Clip
3. Hair pin
Unlock the clip on top of air intake silencer no. 2.
Remove bolts no. 3 retaining both air ducts no. 4
to engine (both sides).
F08F08A
11
1. Remove bolts
Pull air ducts out with their protector pads no. 5.
1
F08F09A
1. Air duct
NOTE: Do not disconnect oil lines.
Push the air intake silencer out of the throttle body.
Detach 2 straps from the oil reservoir using spring
remover tool (P/N 529 035 989).
F12F16B
529 035 989
Unclip oil filter. Pull oil reservoir out.
Remove foam under the oil tank.
Pulltheairsilencerforwardtoremoveitfromth
e
lower bracket no. 6 and remove it in
arotating
movement.
516 smr2004-Complete Line Up
