Section 05 ENGINE (4-TEC)
Subsection 02 (INTAKE SYSTEM)
NOTE: On the RXP 4-TEC supercharged inter-
cooled engine, the ceramic washers differ in their
inner diameter. The ceramic washer with the
smaller inner diameter is installed on the lock
washer side.
Install the lock washer.
Applyengineoiltothespringwashers.

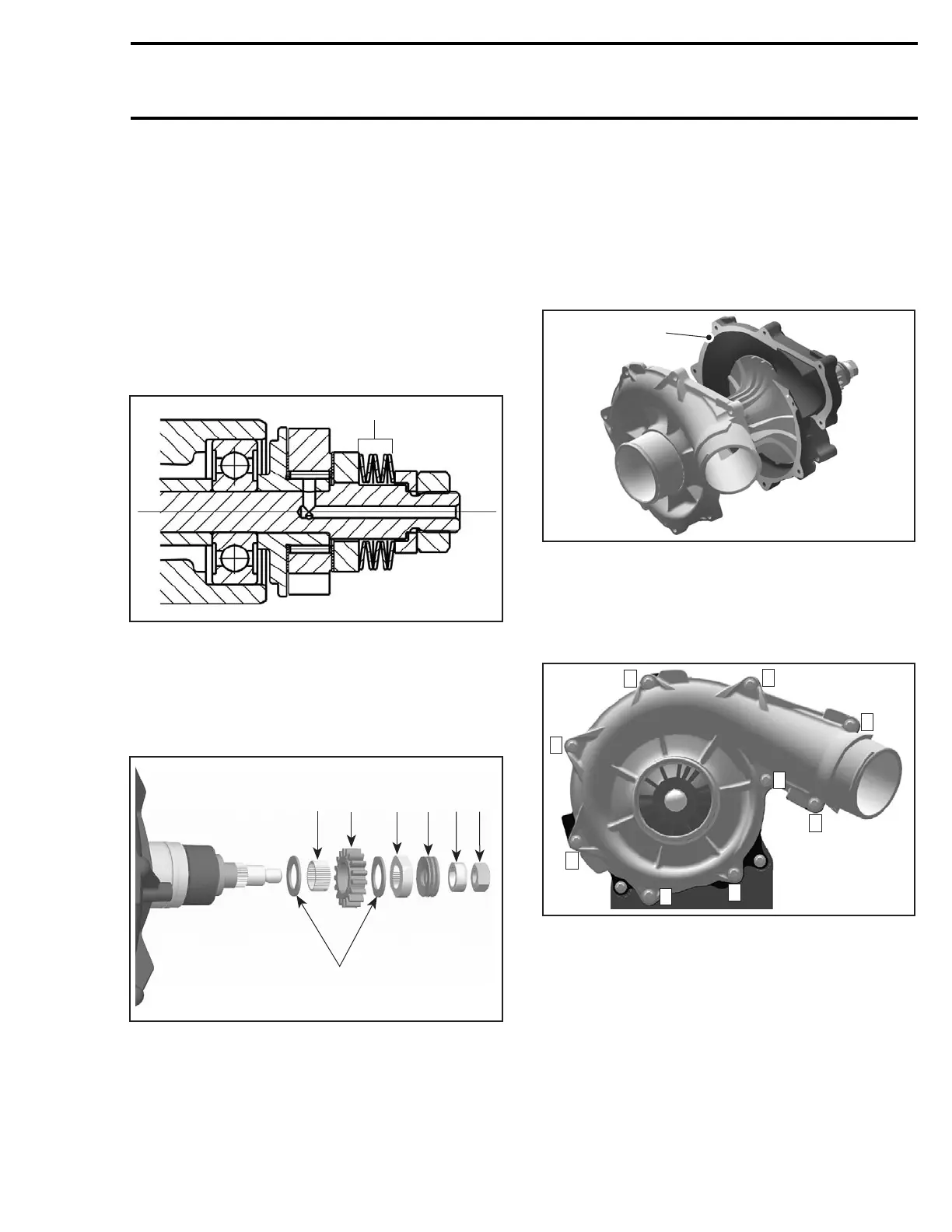

Position the spring washers as per illustration.
CAUTION: When installing the spring washers,
take care of the exact installation direction of
the washers.
1
R1503motr363A
1. Spring washers
Install the L-ring on the compressor shaft.
Apply Loctite 243 on the hexagonal nut threads.
Torque to 30 N•m(22lbf•ft).
NOTE: TheL-ringwillpre-loadthespringwashers.
1
R1503motr359A
234
5
67
1. Nut
2. L-ring
3. Spring washers
4. Lock washer
5. Ceramic washers
6. Drive gear
7. Needle bearings
Hold the lock washer of the supercharger shaft
(engine side) using the retaining key (P/N 529 035
949).
Tigthen the impeller cap nut to 30 N•m(22lbf•ft).
Apply Loctite 5910 on supercharger housing seal-
ing surface. For correct procedure refer to EN-
GINE BLOCK Installation in ENGINE section.
1
R1503motr246A
1. Apply Loctite 5910 on sealing surface
Assemble supercharger housing halves. Apply
Loctite 243 on retaining screws and torque to
10 N•m(89lbf•in) according to the following
sequence.
R1503motr227B
4
6
8
9
1
3
5
7
2
SUPERCHARGER TIGHTENING SEQUENCE
INSTALLATION
Air Intake Manifold
All 4-TEC Engines
Ensure that all gaskets are properly installed and
in a good condition.
smr2004-Complete Line Up 205
