Section 05 ENGINE (4-TEC)
Subsection 04 (REMOVAL AND INSTALLATION)
3

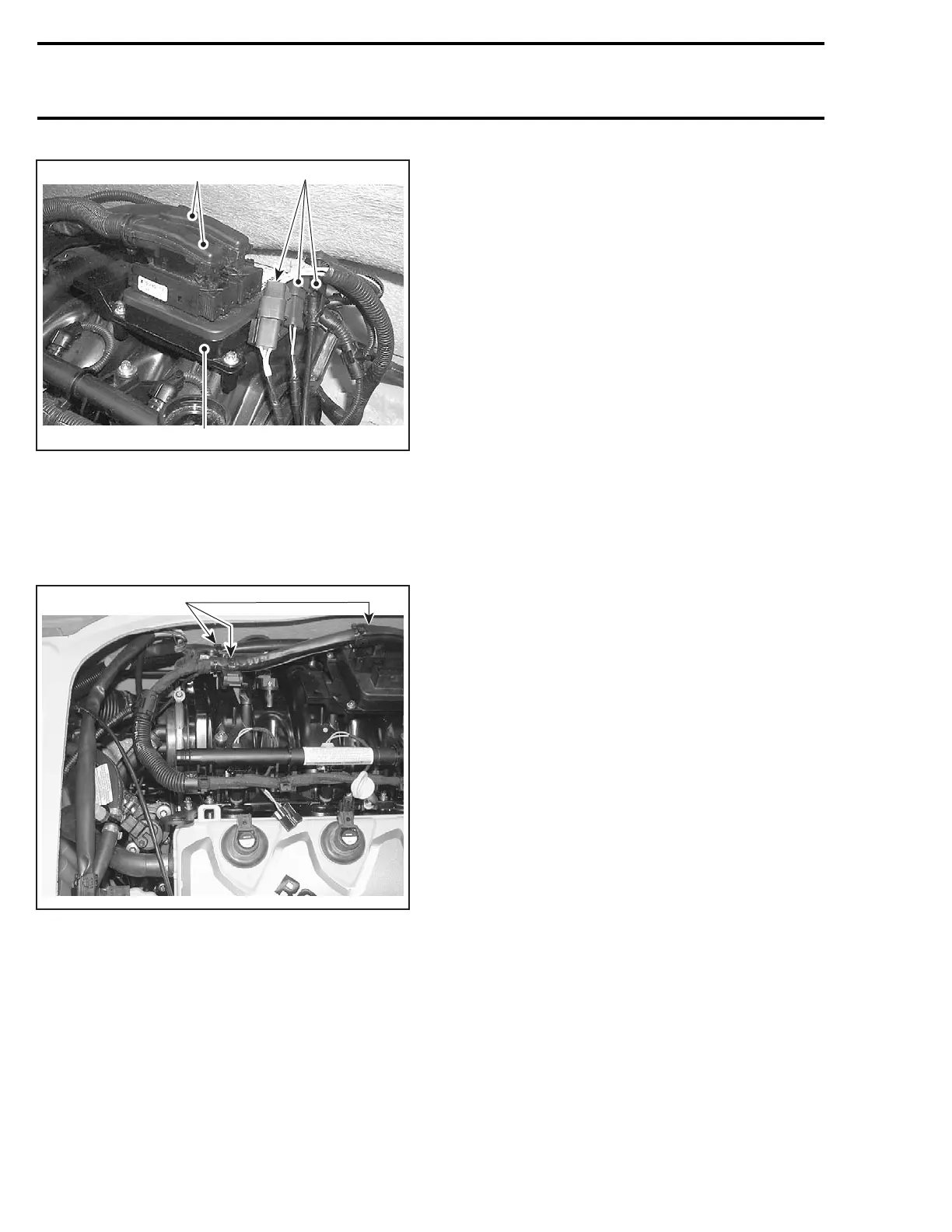

F18Z0JB
1
2
1. Remove connectors
2. Disconnect ECM
3. Remove ECM
Unplug VTS connector.
Cut locking ties retaining vehicle wiring harness to
engine.
1
F19D06A
VEHICLE WIRING HARNESS
1. Cut locking tie
Move wiring harness forward to make room.
All Models
Exhaust Pipe
To remove exhaust pipe, refer to EXHAUST SYS-
TEM in ENGINE section.
O.P.A.S.
To disconnect O.P.A.S., refer to STEERING sec-
tion.
Jet Pump Removal
To withdraw jet pump, refer to PROPULSION sec-
tion.
Drive System
To withdraw drive shaft, refer to PROPULSION
section.
Cooling System
Drain cooling system, refer to COOLING SYSTEM
section.
To remove cooling system hoses, refer to COOL-
ING SYSTEM section.
Disconnect hoses at engine coming from ride
plate and coolant expansion tank.
GTX 4-TEC Series
Intake Manifold
To remove intake manifold, refer to INTAKE sec-
tion.
On Supercharged models, remove inlet tube from
supercharger and air duct.
RXP 4-TEC Models
Throttle Cable
Remove inlet hose from throttle body.
Disconnect throttle cable from throttle body.
218 smr2004-Complete Line Up
