Section 05 ENGINE (4-TEC)
Subsection 04 (REMOVAL AND INSTALLATION)

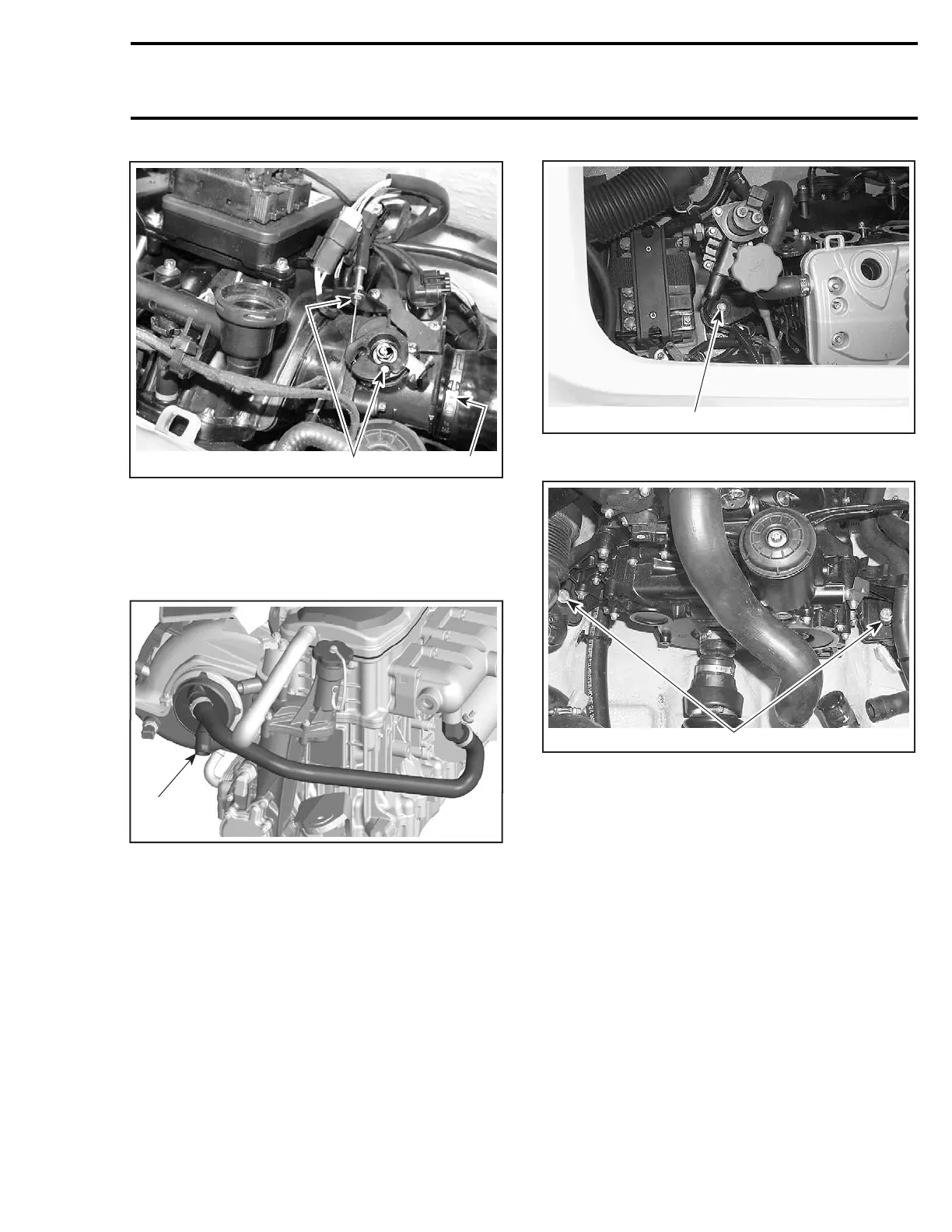

R1503motr252A
21
1. Detach hose
2. Disconnect cable
Disconnect fuel rail supply line.
Disconnect water inlet hose coming from jet
pump connected to the intercooler.
1
R1503motr356A
1. Disconnect hose here
Disconnect TOPS valve hose.
All 4-TEC Models
Engine Support
NOTE: Be careful when removing engine sup-
port(s) or rubber mount adapters, shims could
have been installed underneath. Shims control
engine/jet pump alignment. Always note position
of shims for reinstallation, to avoid altering engine
alignment.
Remove engine support mount screws.
1
F18D13A
FRONT SUPPORT
1. Remove screw
1
F18D14A
REAR SUPPORT
1. Remove screws
Lifting Engine
Using a chain block, a hoist or other suitable equip-
ment, slightly lift engine to ease the remaining
component removal.
CAUTION: Take care not to damage cables.
smr2004-Complete Line Up 219
