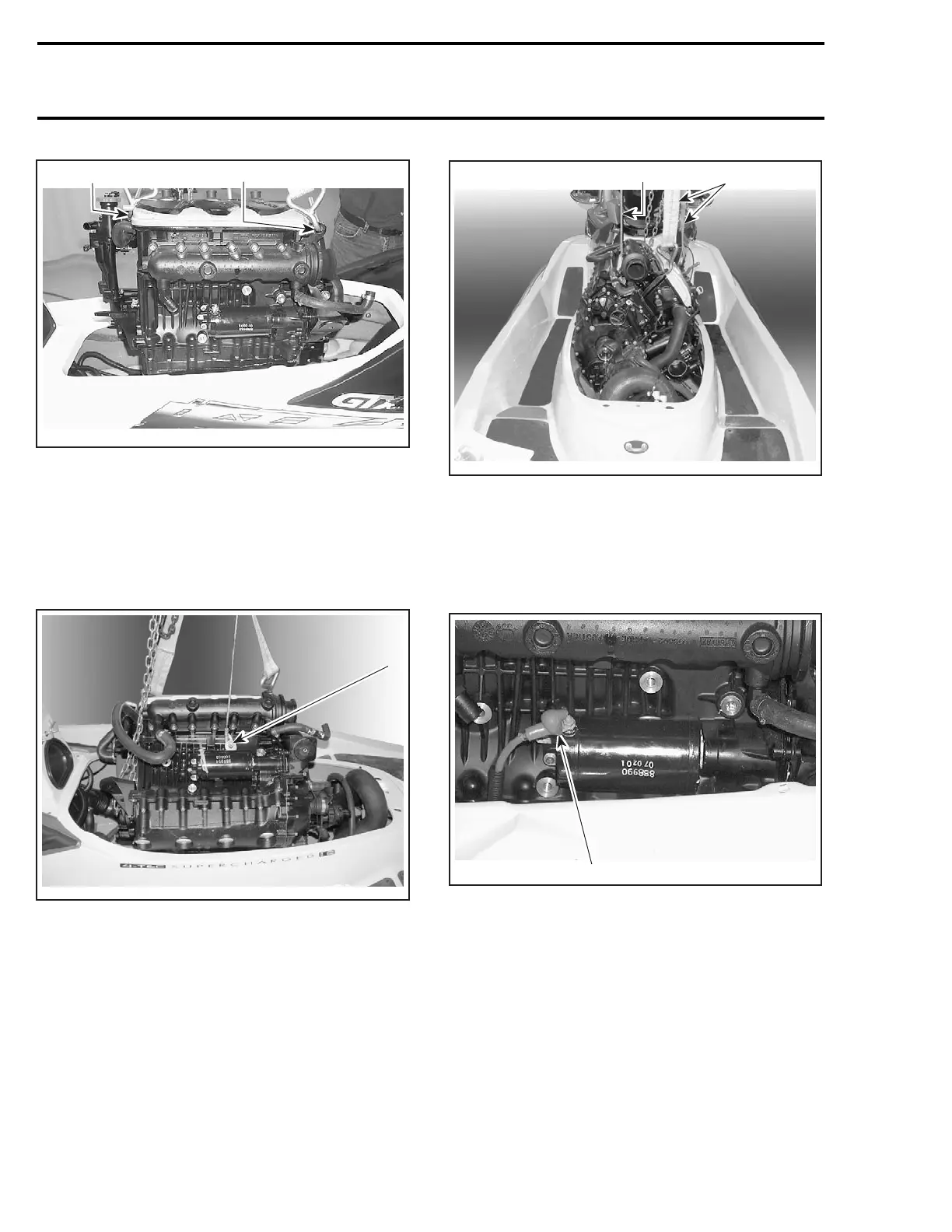

Section 05 ENGINE (4-TEC)
Subsection 04 (REMOVAL AND INSTALLATION)
1
F18D11A
1
TYPICAL
1. Lifting brackets
RXP 4-TEC Models
Slightly move engine rearward to take advantage
of the larger opening.
The engine have to be hooked-up at an additional
location. See illustration.
1
F19D08A
1. Hook-up a steel rope/chain here
Carefully lift engine by the side with the steel
rope/chain and rotate engine so that it can be
pulled out of vehicle.
1
F19D09A
2
1. Lift steel rope/chain here to rotate engine
2. Usual lifting brackets
All Models
Removal of Remaining Components
Disconnect RED positive cable from starter post.
1
F18D12A
TYPICAL
1. Disconnect RED positive cable
Carry on engine lifting to remove from the body
opening.
CAUTION: Be careful not to scratch body or to
hit any component.
NOTE: An engine stand may be used to hold en-
gine.
220 smr2004-Complete Line Up
