Section 14 STEERING SYSTEM
Subsection 01 (STEERING SYSTEM)
1
F08L0KB
1
1
1
1

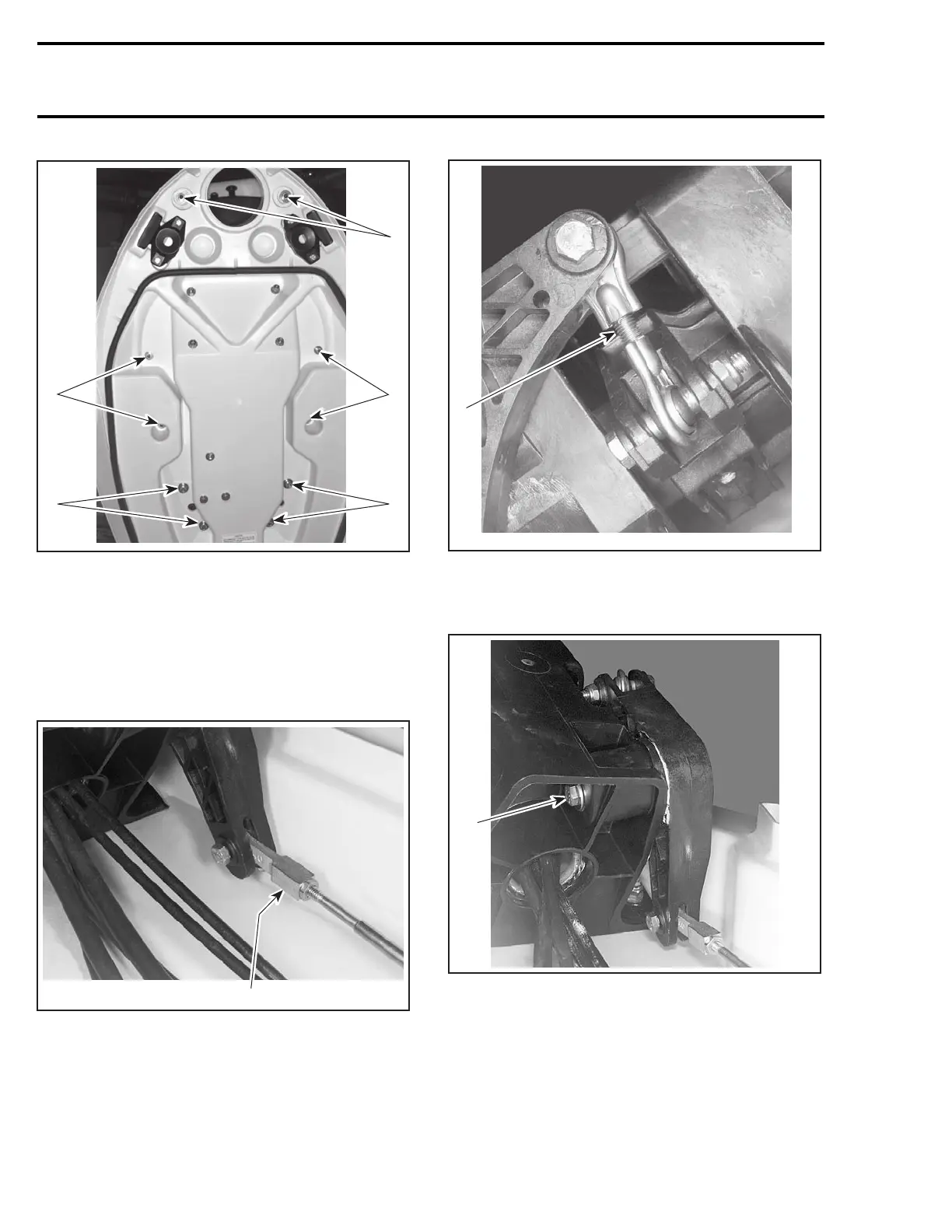

1. Loosen Allen screws
Lift the top section of the engine cover and dis-
connect wiring harnesses.
Remove the top section of the engine compart-
ment cover.
Disconnect steering cable no. 11 from lever
no. 10.
F08K05A
1
1. Disconnect steering cable
Remove link rod no. 12.
F08K06A
1
1. Remove link rod
Remove bolt no. 13 and washer retaining lever
no. 10 to steering support no. 18.
F08K07A
1
1. Remove bolt and washer
Steering Stem Arm and Support
Loosen bolts no. 17 retaining steering stem arm
no. 15 and support no. 16.
698 smr2004-Complete Line Up
