Section 14 STEERING SYSTEM
Subsection 01 (STEERING SYSTEM)

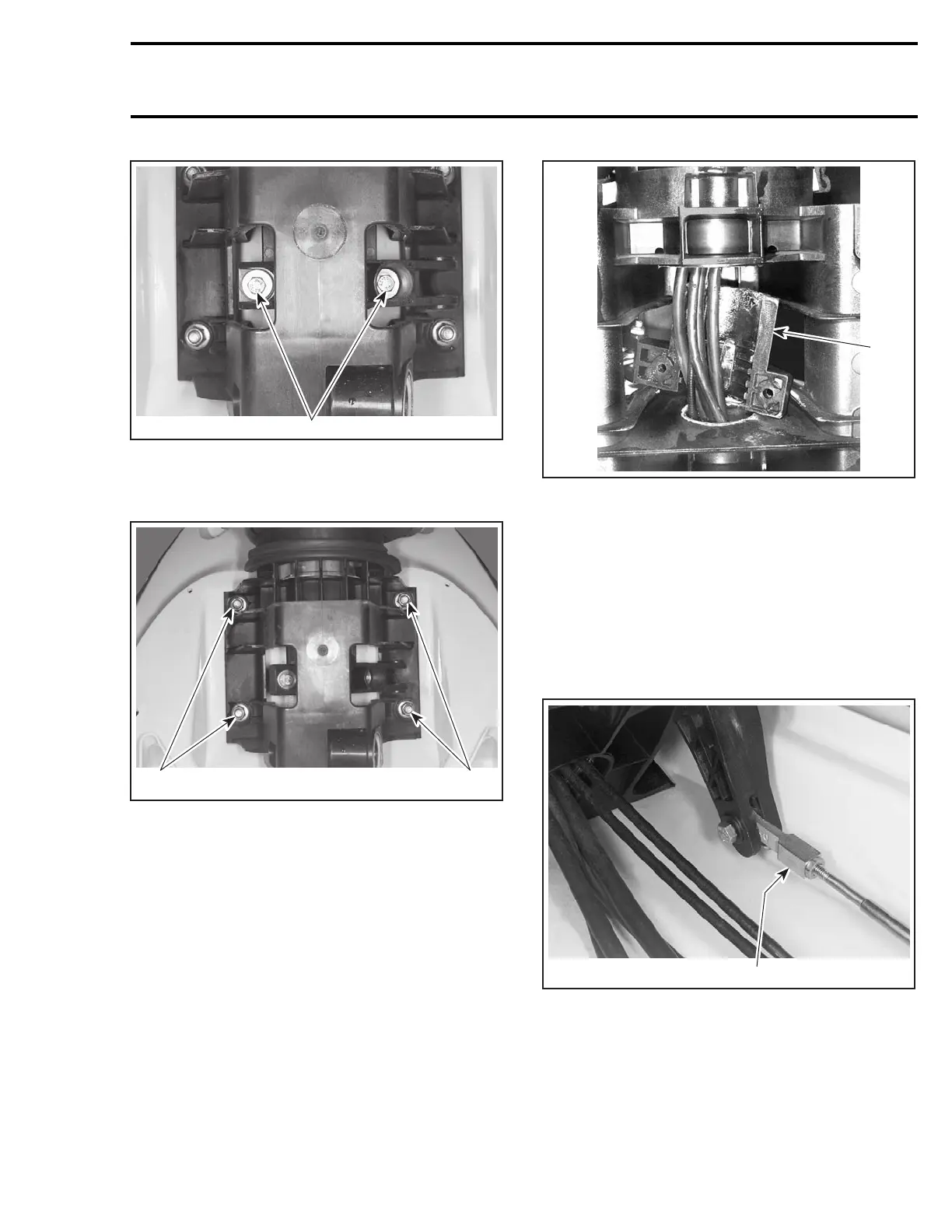

F08K08A
1
1. Loosen bolts
Loosen nuts and bolts retaining steering support
no. 18.
F08K09A
1
1
1. Loosen nuts and bolts
Lift steering support no. 18 and slightly pullback
steering stem no. 14 in order to remove the sup-
port no. 16 and steering stem arm no. 15.
F08K0AA
1
1. Remove support and steering stem arm
Steering Stem
Disconnect wiring harnesses and throttle cable
from engine.
Remove steering stem no. 14.
Steering Cable
Remove glove box.
Disconnect steering cable no. 11 at lever no. 10.
F08K05A
1
1. Disconnect steering cable
Unscrew bolts from retaining block no. 20 to re-
move steering cable from cable support no. 19.
smr2004-Complete Line Up 699
