Section 05 ENGINE (4-TEC)
Subsection 07 (CYLINDER HEAD AND VALVES)
VALVE GUIDE DIAMETER
NEW MINIMUM
Exhaust
Intake
5.994 mm (.2359 in)
NEW MAXIMUM
Exhaust
Intake
6.018 mm (.2369 in)
SERVICE LIMIT
Exhaust
Intake
6.060 mm (.2386 in)
Valve Guide Replacement
CAUTION: Do not heat cylinder head for this
procedure.
CAUTION: The sharp edge near the top of the
valve guide must be machined away. Other-
wise it will foul the valve guide hole in the cylin-
der head and destroy the cylinder head, as the
valve guide is removed.

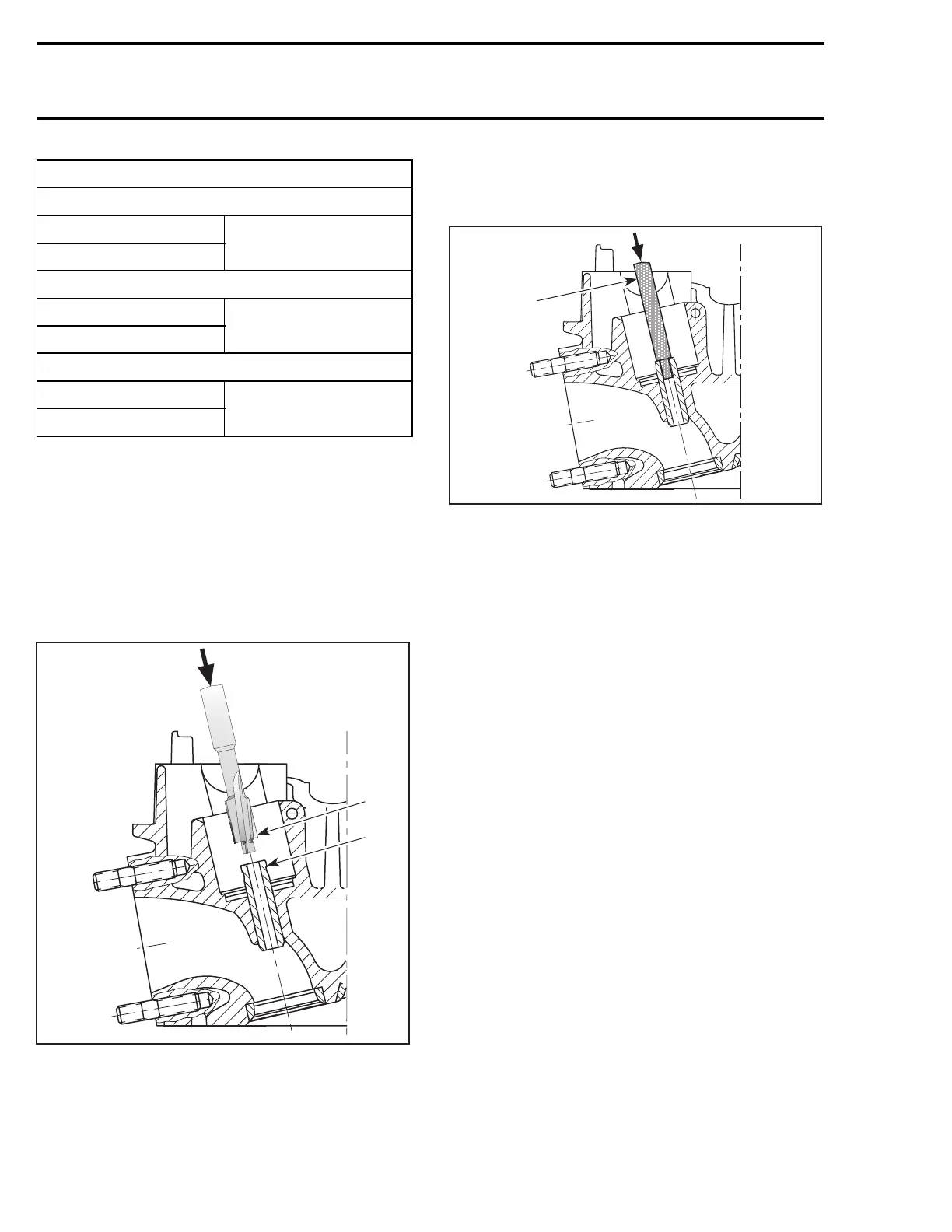

Useaspecialreamerasfarasthetopofthenotch.
1
R1503motr258A
2
TYPICAL
1. Special reamer
2. Notch
Chase valve guide out of the cylinder head to-
wards combustion chamber by using a suitable
punch.
1
R1503motr255A
TYPICAL
1. Punch
Check valve guide bore for abreased material.
The inlet and exhaust valve guides have the same
length and are interchangeable.
NOTE: If valve guide has caused scoring during
extraction, replace the cylinder head.
Grease the bore in cylinder head and the leading
endofvalveguidewithMolykoteG-Nslidepaste.
