Section 09 COOLING SYSTEM

Subsection 01 (CIRCUIT, COMPONENTS AND CARE)

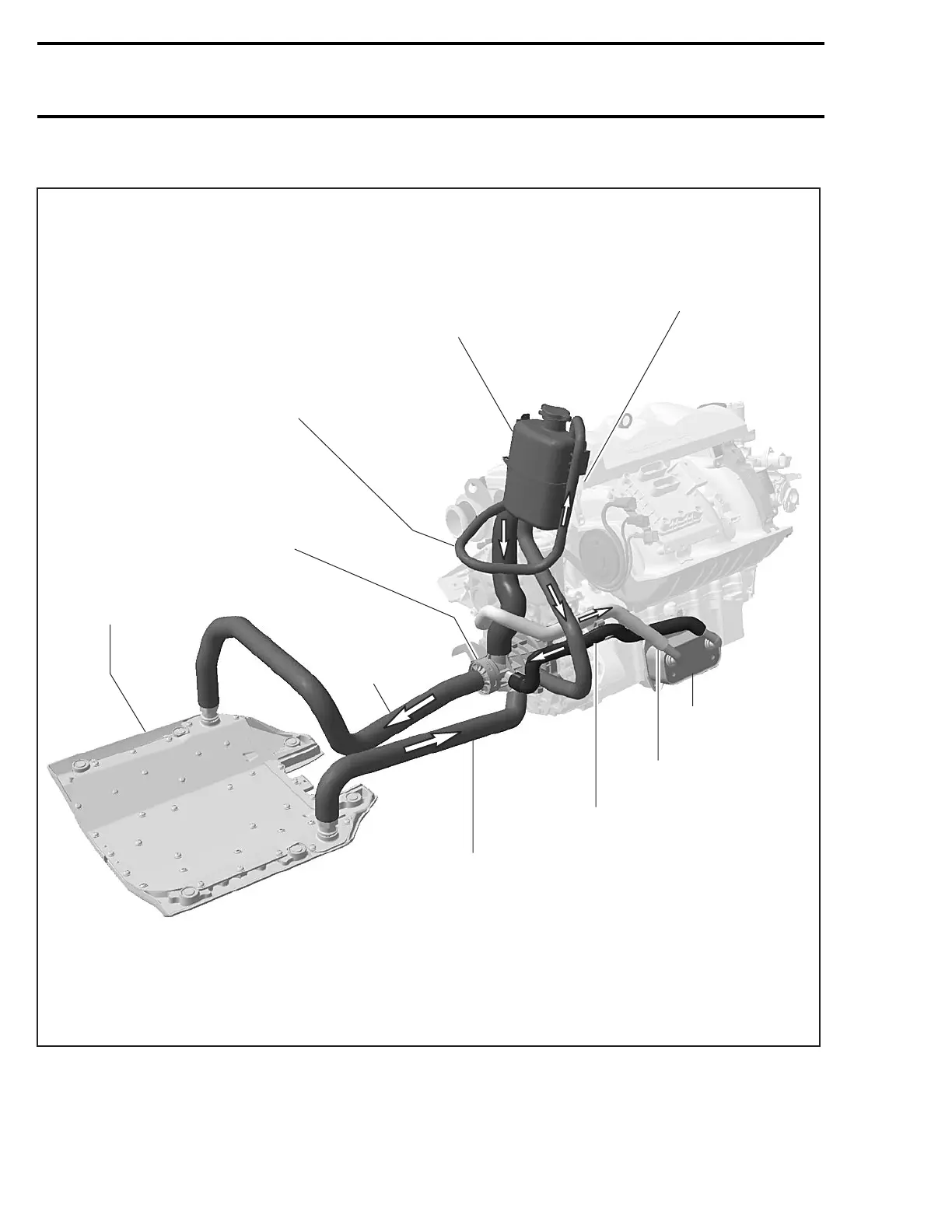

4-TEC Engines — Partial System

F18E0WS

Ride plate

(operates as heat

exhanger)

Coolant flows

to ride plate

Coolant housing

including thermostat

opens at 87°C (188°F)

and coolant pump

impeller

Bleed hose from

cylinder head to

expansion coolant tank

Expansion

coolant tank

Coolant temperature

sensor (CTS)

activates when

temperature exceeds

100°C (212°F)

Coolant flows

to oil cooler

Oil

cooler

Coolant returns

from oil cooler

Coolant returns

from ride plate

484 smr2004-Complete Line Up
