DMG 3200/3100/3000 – User Manual
Page 149 (306)
Where port A is the default port and port B is a backup, used only when port A has link
problems. When link of port A comes back, the system will switch back to use port A (ie
reverting)
In order to enable Exclusive Output Port, the Cloned IP Output module must first be changed to
this mode. This is configured in the Maintenance Center and you can find further details on this
procedure in the Upgrade Guide.

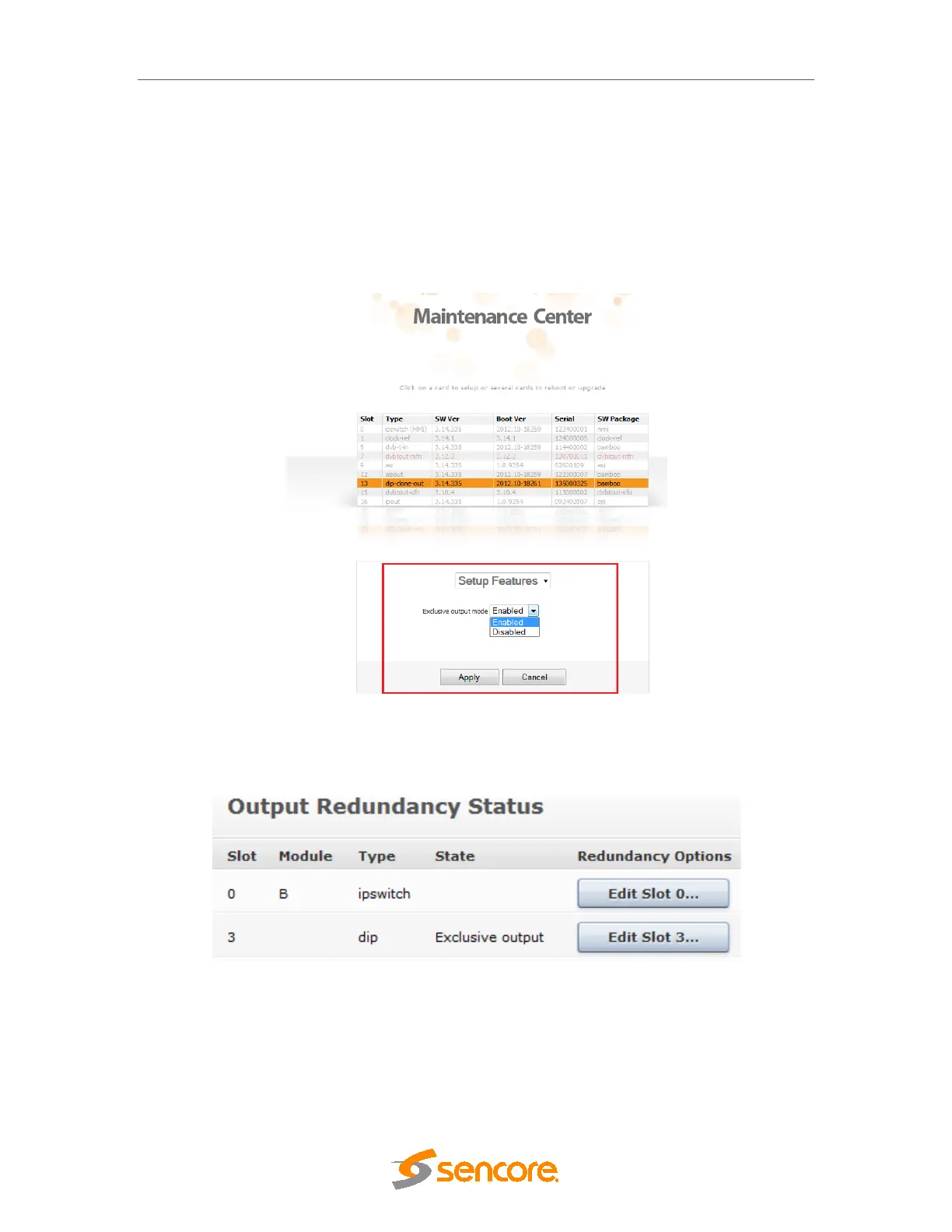

Figure 7.36 – Conversion to Exclusive IP Output Module.
When this feature is enabled this will be displayed in the Redundancy->Output Redundancy
status page.
Figure 7.37 –Exclusive IP Output Module.
