DMG 3200/3100/3000 – User Manual
Page 263 (306)
• Configurable switch mode (one/majority/all) - per port
• Manual triggering of the "output faulty alarm" trigger by disabling the output port.
o For the QAM output card 8 transports is grouped into one Physical port. For this
output all transports must be disabled before the "output faulty alarm will" trigger.
To configure the Redundancy options, select Redundancy Output and click on the Edit
Slot X button for a particular output module. This will open the Edit Redundancy Options
dialog displayed below:

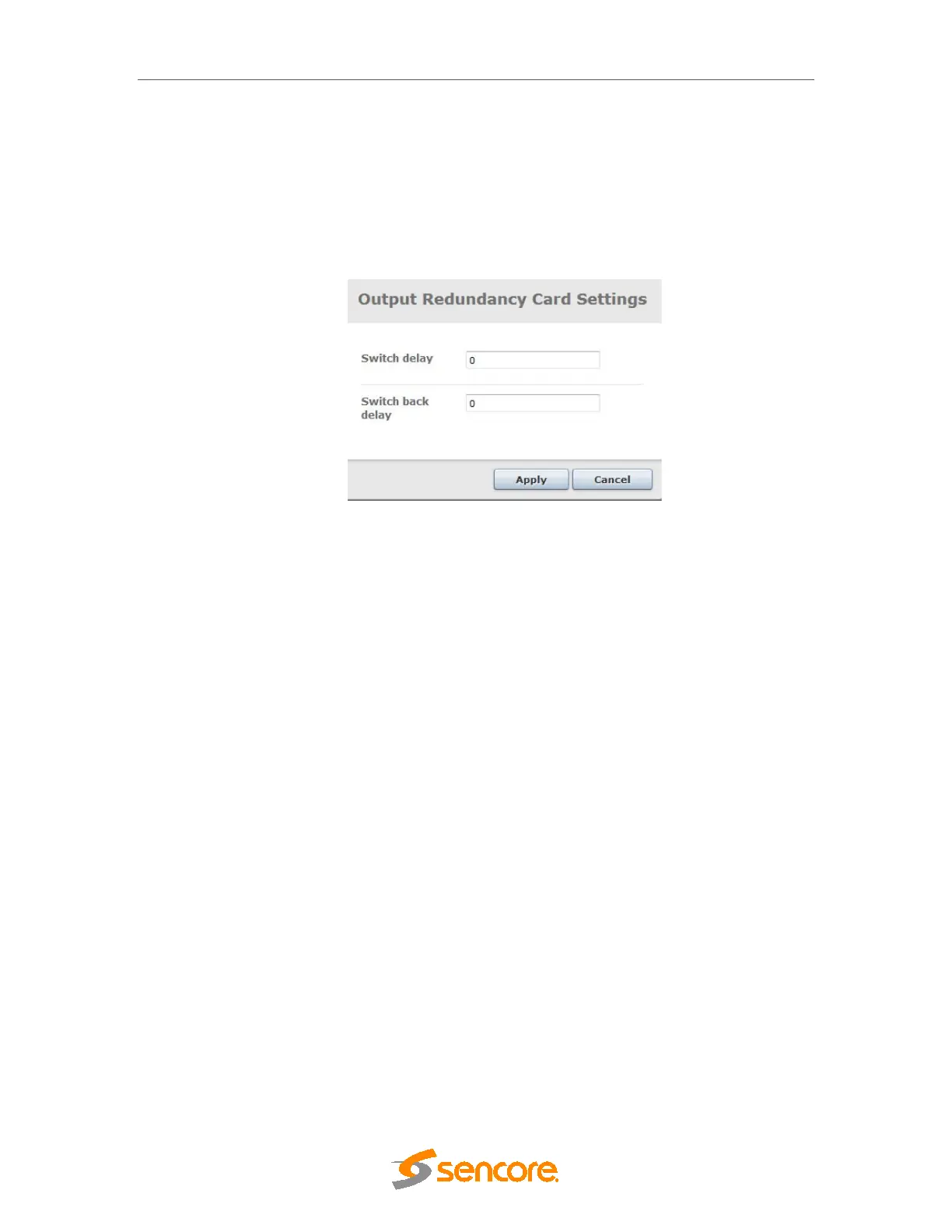

Figure 10.11 Output Redundancy Card Settings
