Clicking the edit link on the right displays the dialog below, allowing for the Mode, Enable, and
Name parameters to be edited.

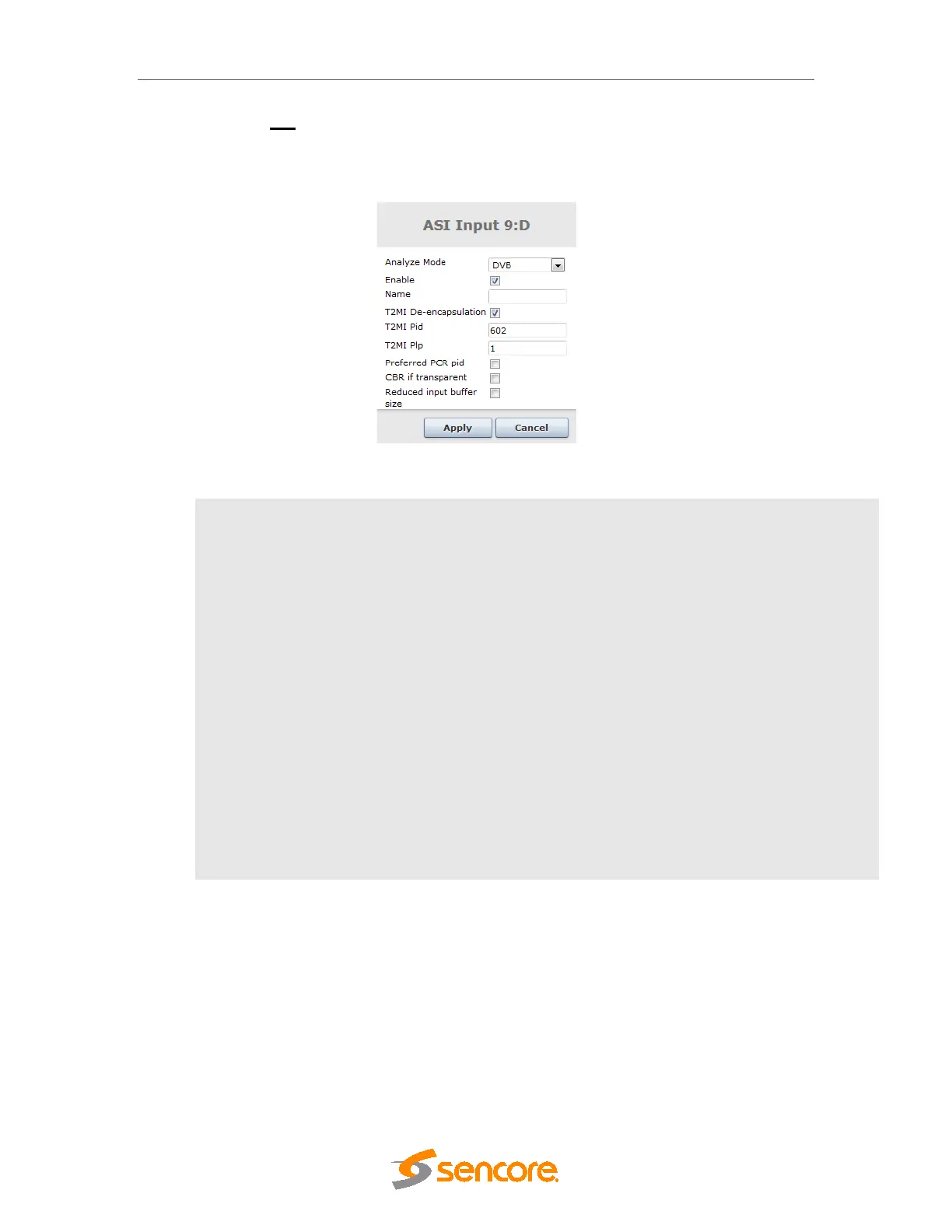

Figure 5.20- ASI Edit Dialog
Name
This parameter allows for each port in a module to be labeled. This label is visible as
a tooltip when the mouse cursor hovers over the port. Port names are shown in the
alarms when a non-empty string is set as the name..
T2MIDe-encapsulation
T2 de-encapsulation specifies to extract one PLP from T2MI stream
T2MI PID
This is T2MI stream PID
T2MI PLP
This is T2MI stream PLP ID of the required stream
Preferred PCR pid
This allows you to set a PCR PID in the input multiplex as a priority to use
for de-jittering. If this PID is not available, then the next valid detected
PCR will be used. This is only valid for transparently mapped streams.
CBR if transparent
This de-jitter mechanism will use the incoming CBR total bitrate as a
guide for the clock source of the stream. This is only valid for transparent
mapped and PID imported outputs.
Reduced input buffer
size
Enable or disable Reduced Input Buffer for introducing a low latency
dejitter function.
The status parameters for the ASI module are shown in the figure below. Click on the letter
representing the input channel (A, B or C) to display the status parameters for the specific input
port. The resulting display is shown in figure below.
