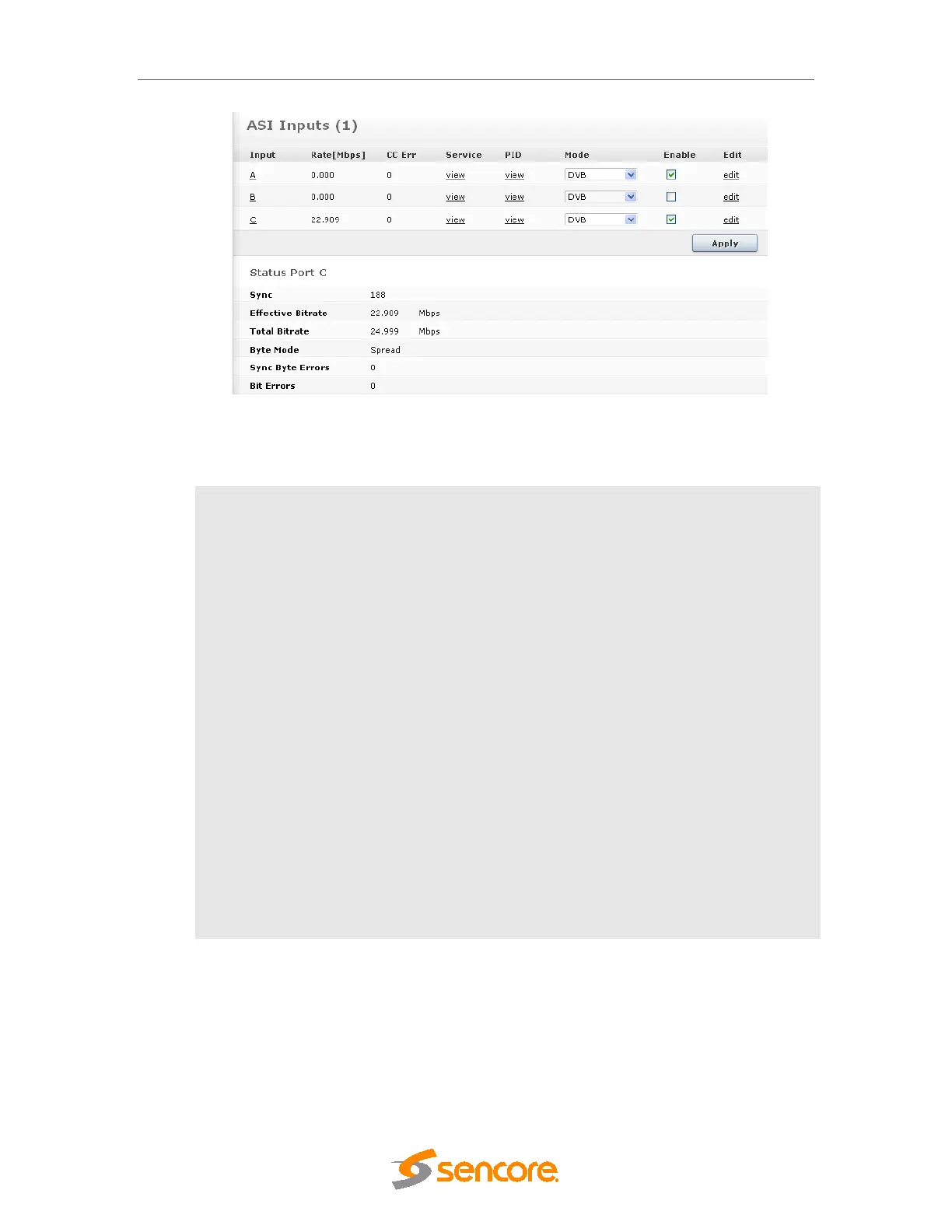

Figure 5.21 - ASI Status View
The following information is displayed:
Sync
MPEG sync number: 188 or 204
Effective
Bitrate
Effective bitrate of the input stream
Total Bitrate
Total bitrate of the input stream
Byte Mode
The byte mode specifies how the TS data is transported over the ASI
link.
Burst Mode – All TS data bytes are sent without any idle symbols in
between
Spread Mode – The SI specification requires at least one idle byte
between each data byte, and each packet start indicator (0x47) is
preceded with at least two idle bytes. The ASI output stream in Spread
Mode
guarantees that each data byte is preceded with two idle
symbols. This effectively reduces the maximum data rate to 1/3 of the
maximum ASI output rate, i.e. (213/3) Mbps. If higher rates are required,
use Burst Mode.
Sync Byte
Errors
Number of sync byte errors on the incoming stream
Bit Errors
Number of bit errors on the incoming stream
