DMG 3200/3100/3000 – User Manual
Page 76 (306)
5.4.5.1 Setup of IPv6 input
The Switch+IP input module supports IPv6 multicast and unicast inputs. When using standard
IPv6 address syntax (128 bits, ‘:’ instead of ‘.’), the GUI will interpret the address as an IPv6
address.
The VLAN setup is independent on the choice of IPv4 or IPv6.
Source IP address has to match the IP format used for the destination IP address.
5.4.5.2 Modification of input
The defined inputs may be modified to use another IP address. The new IP address may
be chosen freely between IPv4 and IPv6 addresses.

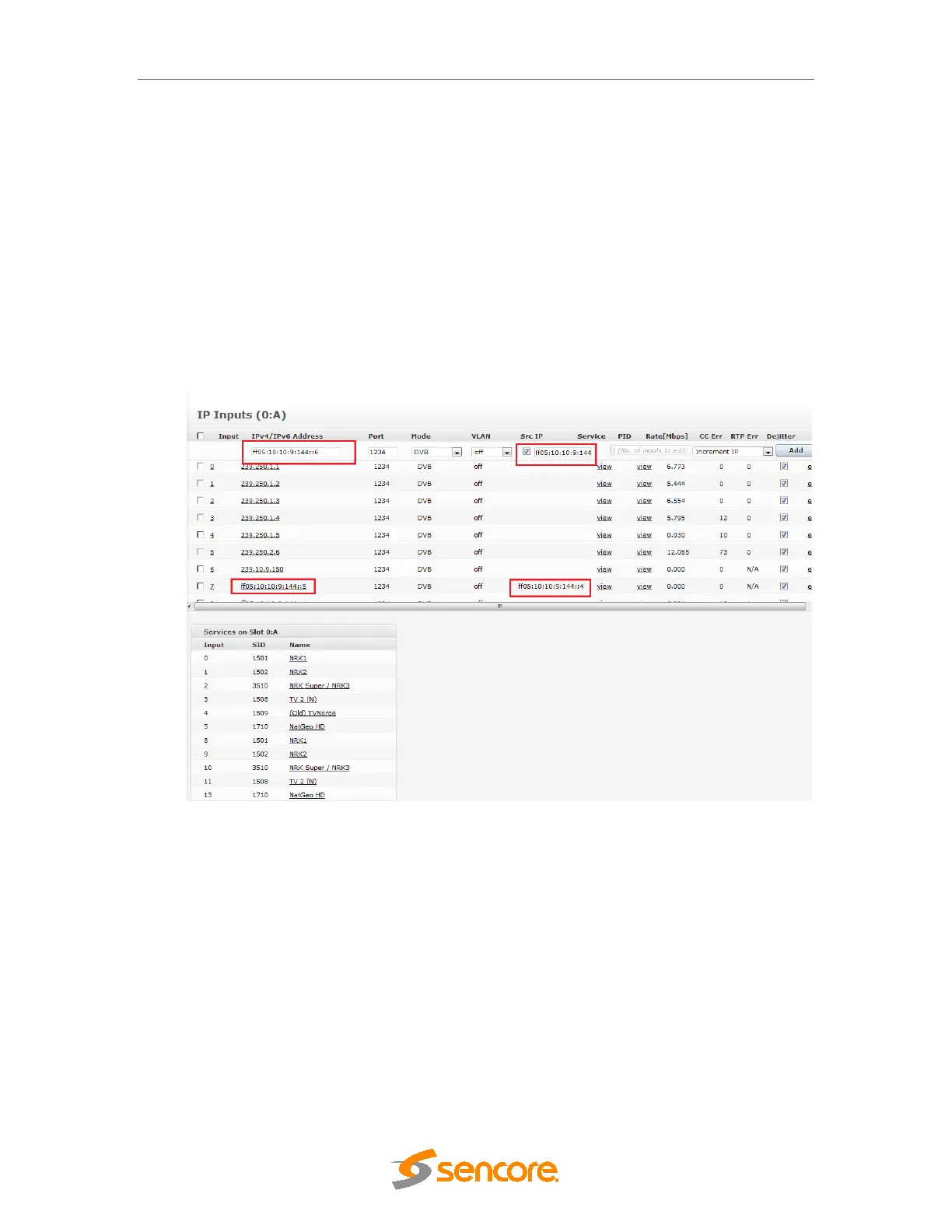

Figure 5.31 -Setup of IPv6 input
5.4.5.3 Source filtering on Switch IP input.
On the IP input, it is possible to use different mechanisms in order to filter on the Source IP
address of the incoming multicast.
Source filtering (relevant where 1 source is specified) is only available in Switch+IP input cards .
