DMG 3200/3100/3000 – User Manual
Page 83 (306)
5.4.6.1 Unique Configuration of input ports
IP settings can be configured different on the two IP ports in Seamless Input mode. If required
to be different from port A, the checkbox can be enabled and the new parameter entered.

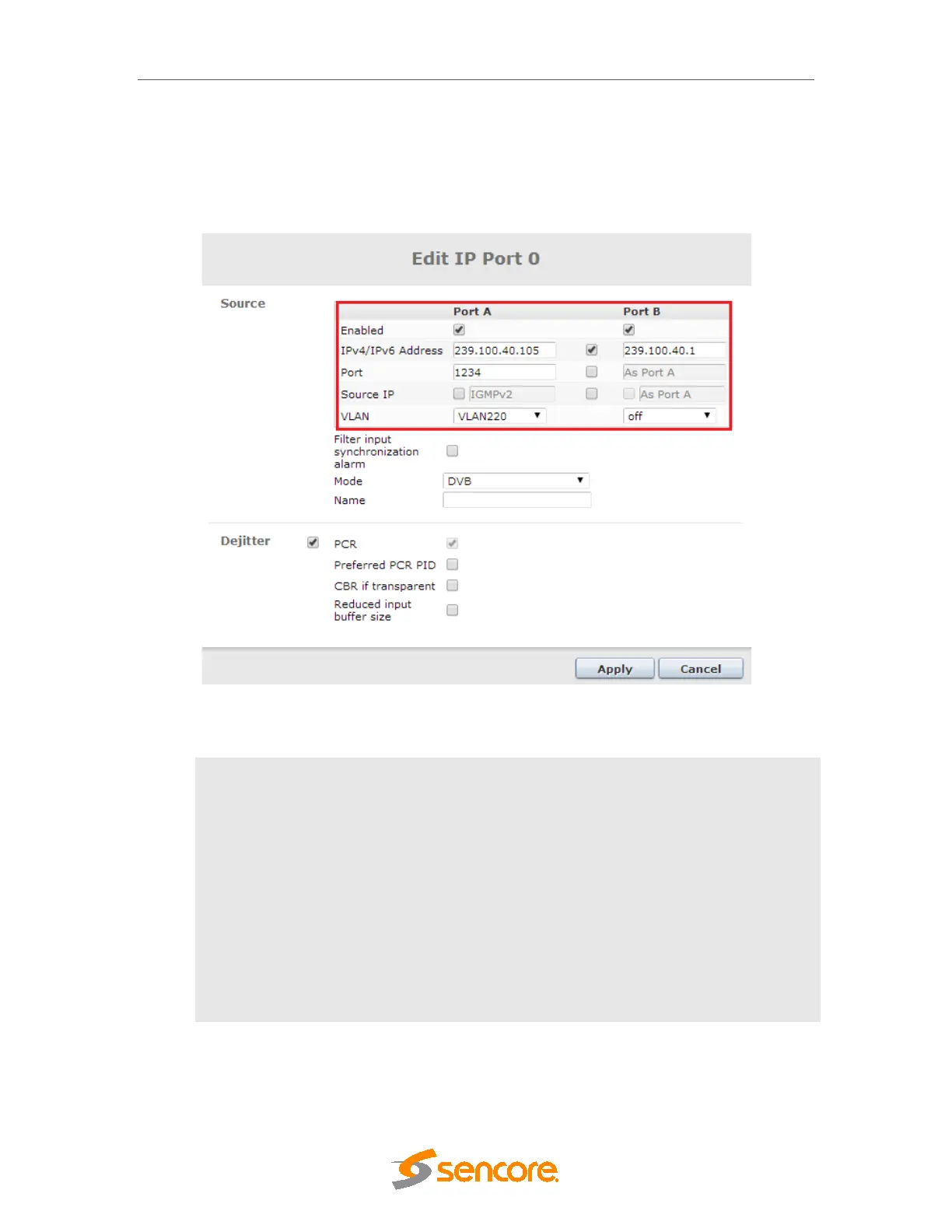

Figure - 5.38 Unique configurations on two ports.
Enabled
Specify that which Port is enabled.
IP
IP address of the Port A and Port B
Port
IP port number
Source Port
The IP source port of the output multicast
Source IP
The source IP address override feature allows configuration of the
source address of an IP output multicast or unicast to any IP address.
VLAN
Displays available VLANs; the default value is off.
Select a suitable VLAN if required.
