Setup Data 5
Setup1 - Editing the setup file 5.5
268
The "Setup data editor" window is open.

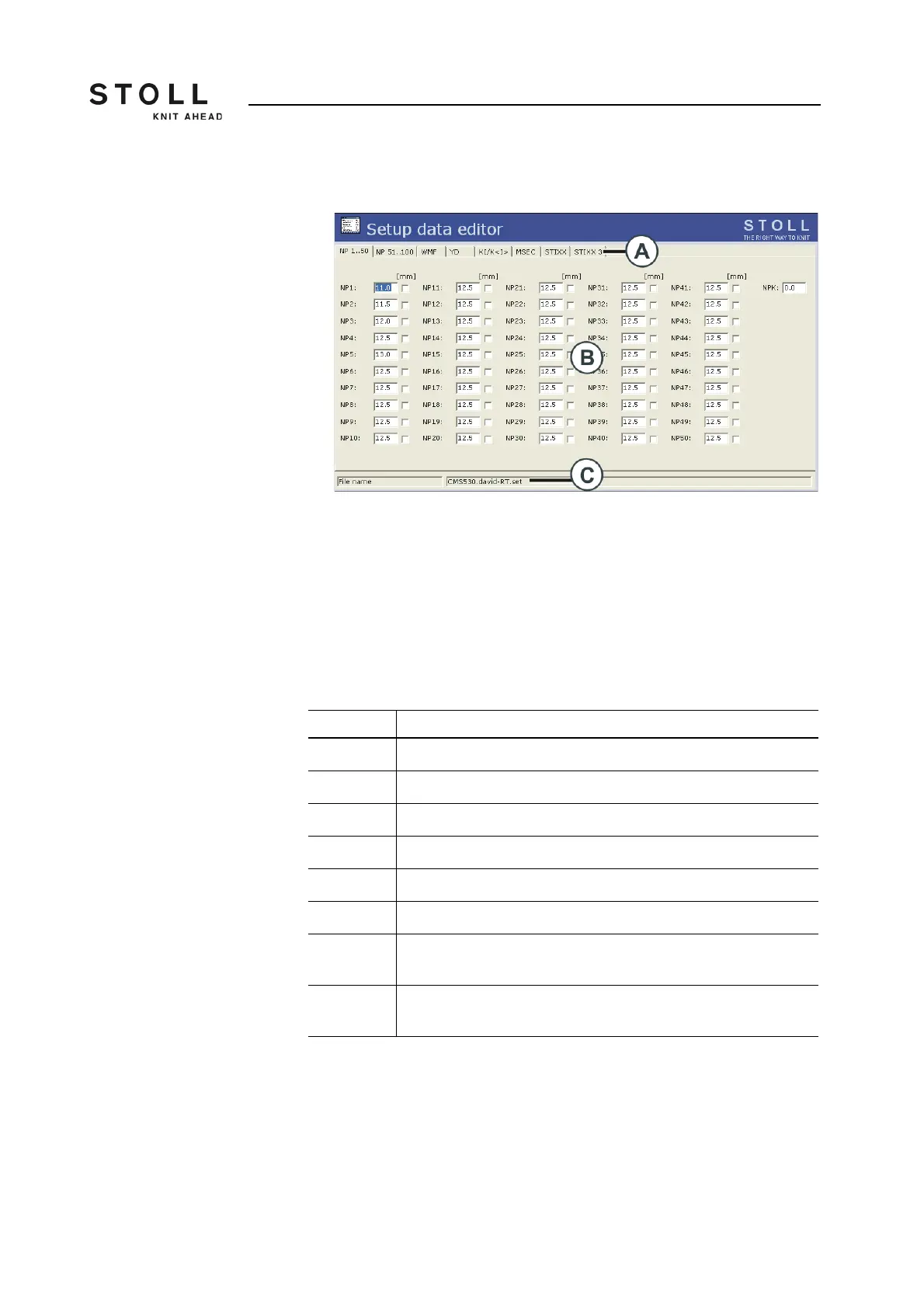

"Setup data editor" window
The "Setup data editor" window contains a maximum of 8 tabs:
A Total of 8 tabs:
The STIXX and STIXX3 tabs are only displayed if a STIXX device is
connected.
B Working area
changes, depending on the selected card.
C Status bar:
with the file name of the loaded setup file.
Card Meaning
NP 1..50 Stitch cam position with index 1 to 50
NP 51..100 Stitch cam position with index 51 to 100
WMF Specifications for take-down value
YD Distance between yarn carriers and fabric selvedge
KI/K<I> Correction value of yarn carriers in fabric area
MSEC Specifications for carriage speed in m/sec
STIXX Specifications for the STIXX yarn length measuring device (STIXX
menu)
STIXX3 Specifications for the STIXX yarn length measuring device (STIXX3
menu)
Tabs in the "Setup data editor" window
