Symmetricom TimeProvider 2700 User Manual

214 TimeProvider 2300/2700 User’s Guide 098-00564-000 Revision A3 – July, 2013
Chapter 4 Provisioning
Provisioning the PTP Output

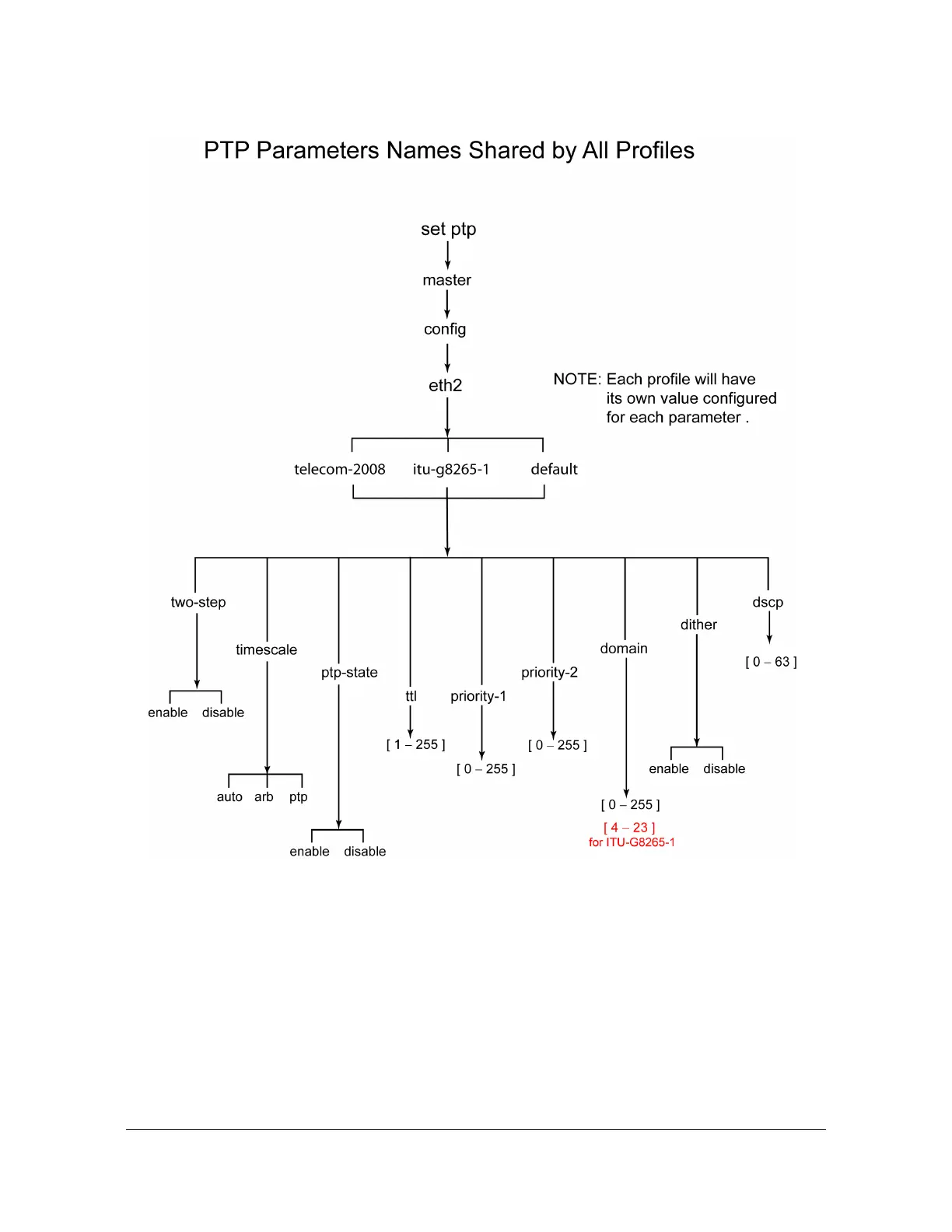

Figure 4-16. Set PTP Master Command Hierarchy  Shared Parameters
Default Profile
The TP 2300/2700 grandmaster with the Default (multicast) profile operates per the
multicast communication model, which specifies that each PTP message sent from
the grandmaster is capable of being received and processed by all PTP ports on the
same PTP communication path. See Figure 4-16 for the hierarchy of the
set ptp
commands that are shared by all profiles. See Table B-39 for defaults and ranges.
See Figure 4-17 for the hierarchy of multicast profile
set ptp commands. See
Table 3-3 for descriptions of the parameters for the Default profile. and Table B-41
for defaults settings and ranges.
