TOMATECH AUTOMATION

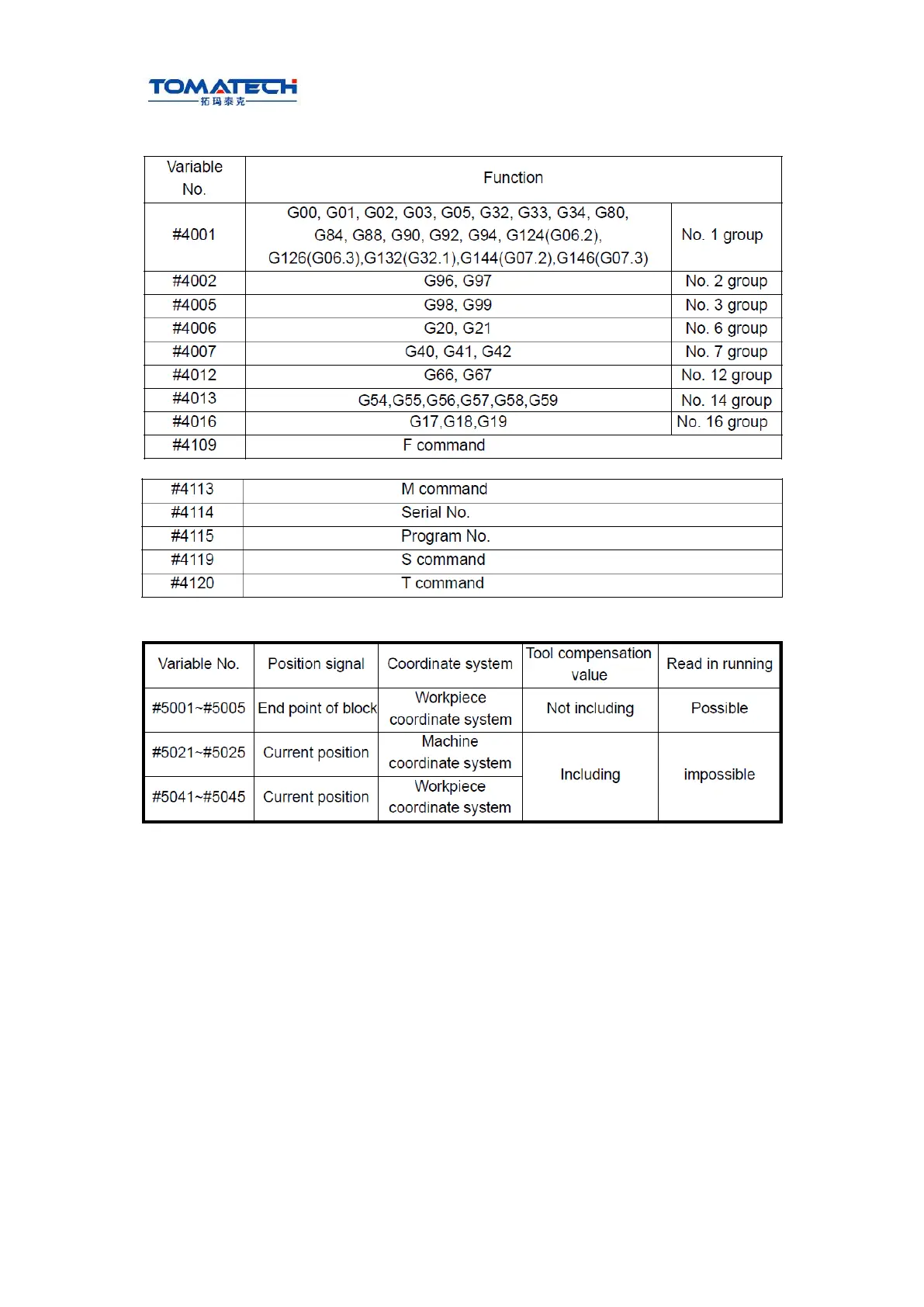

(4) System modal information variable
(5) system variable of coordinate position information:
Note: The position listed in the above table separately corresponds orderly to X, Y, Z, 4th, 5th axis.
For example:
#5001 meanings to be X position information, #5002 meanings to be Y position information, #5003
meanings to be Z position information and #5004 meanings to 4th position information and #5005
meanings to 5th position information.
（6）zero offset value and workpiece coordinate systems
G54：#5206 ～ #5210
G55：#5211 ～ #5215
G56：#5216 ～ #5220
G57：#5221 ～ #5225
G58：#5226 ～ #5230
G59：#5231 ～ #5235
