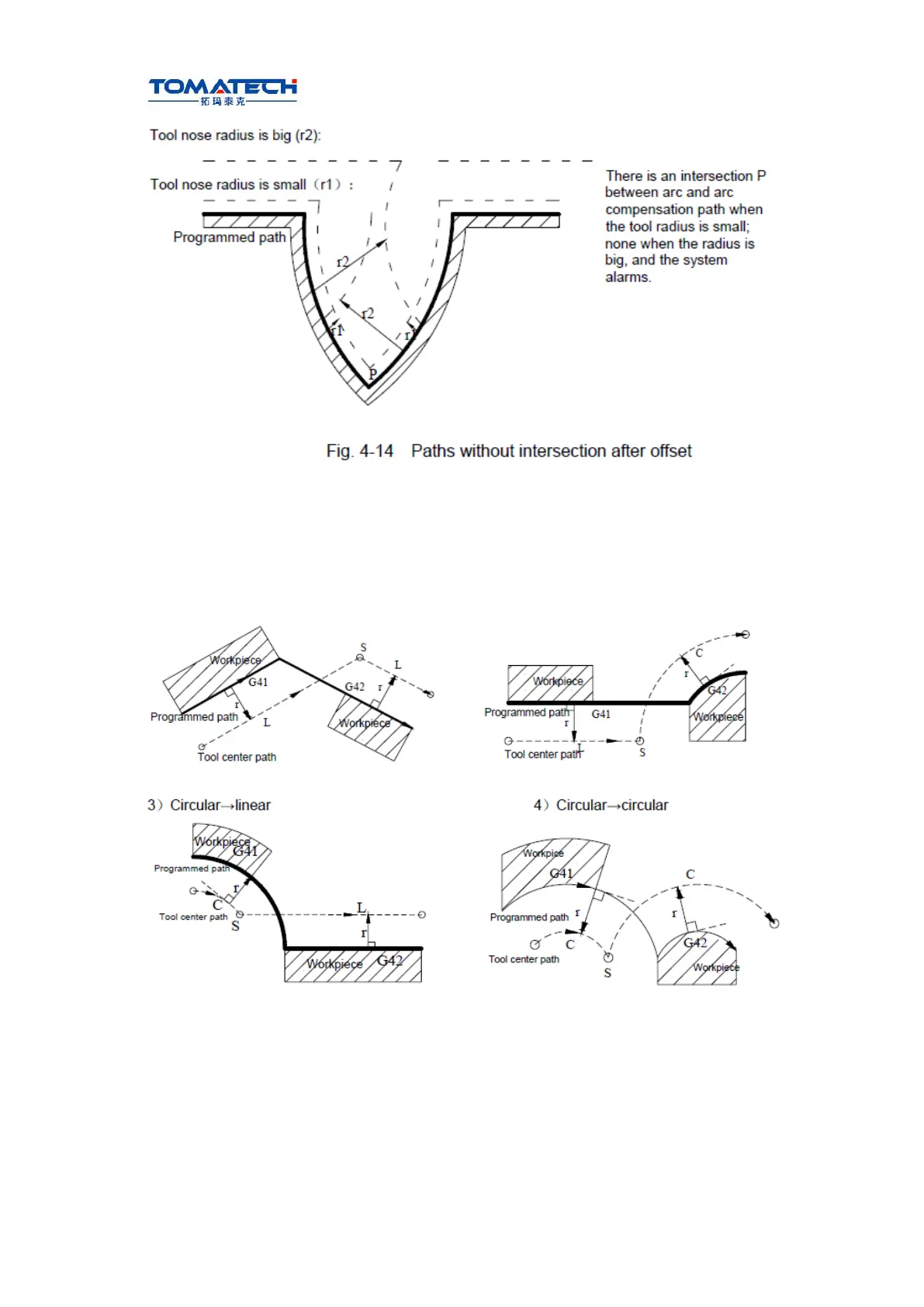

� Offset path of changing compensation direction in compensation mode
The compensation direction can be changed in compensation mode in special cutting.
There is no inside and outside cutting when the system changes the compensation
direction. The following are the path of tool running when the compensation changes are
changed:
1）Linear→linear 2）Linear→circular
5) No intersection when compensation is executed normally
When the system executes G41 and G42 to change the offset direction between block A
and B, a vector perpendicular to block B is created from its starting point.
i ) Linear----Linear
To Next Page
