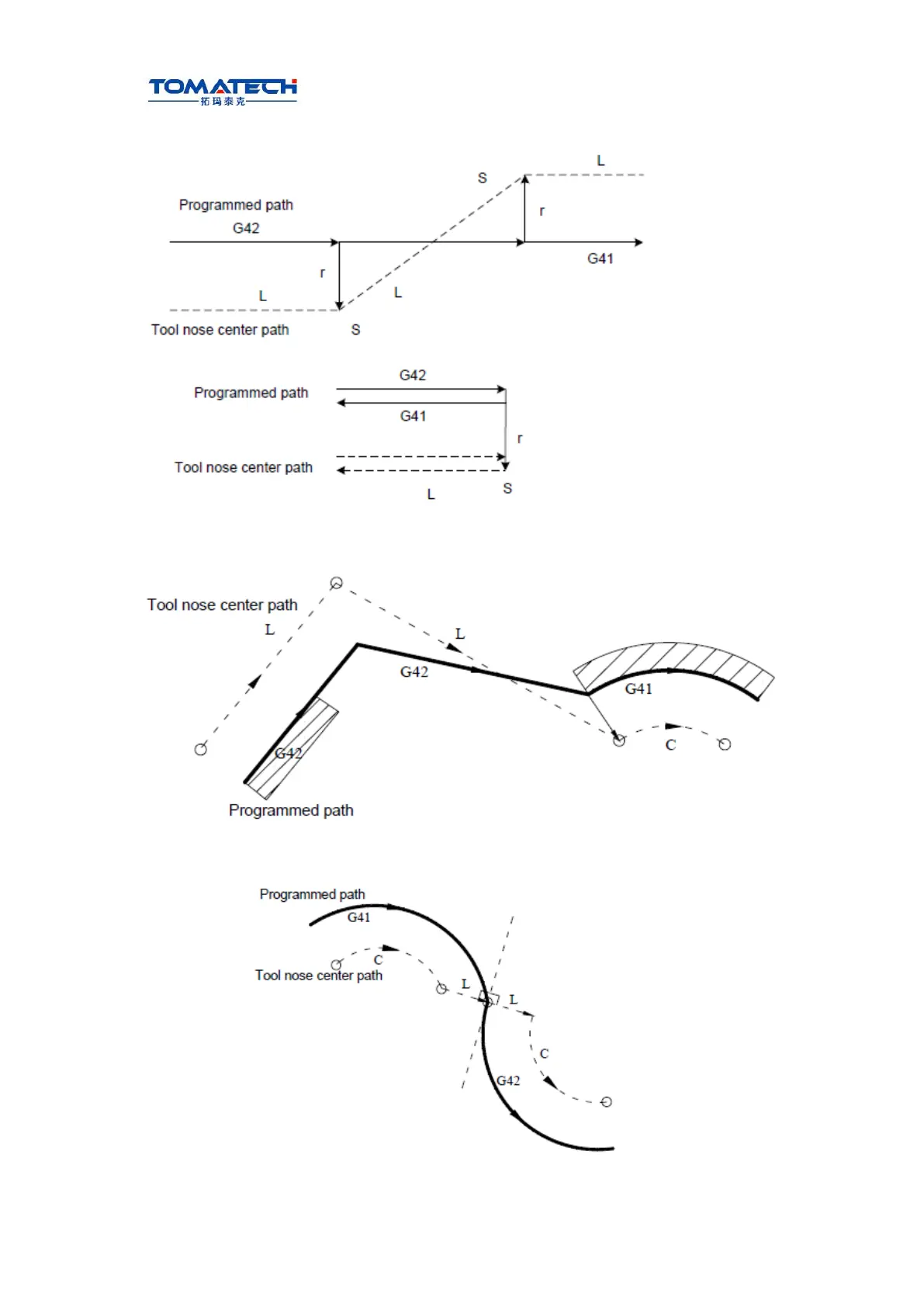

Fig. 4-15a Linear—linear, no intersection（changing compensation direction）
ii ) Linear ---circular
Fig. 4-15b Linear—circular without intersection （changing compensation direction）
iii ) Circular-----circular
Fig. 4-15c Circular—circular without intersection (changing compensation direction)
