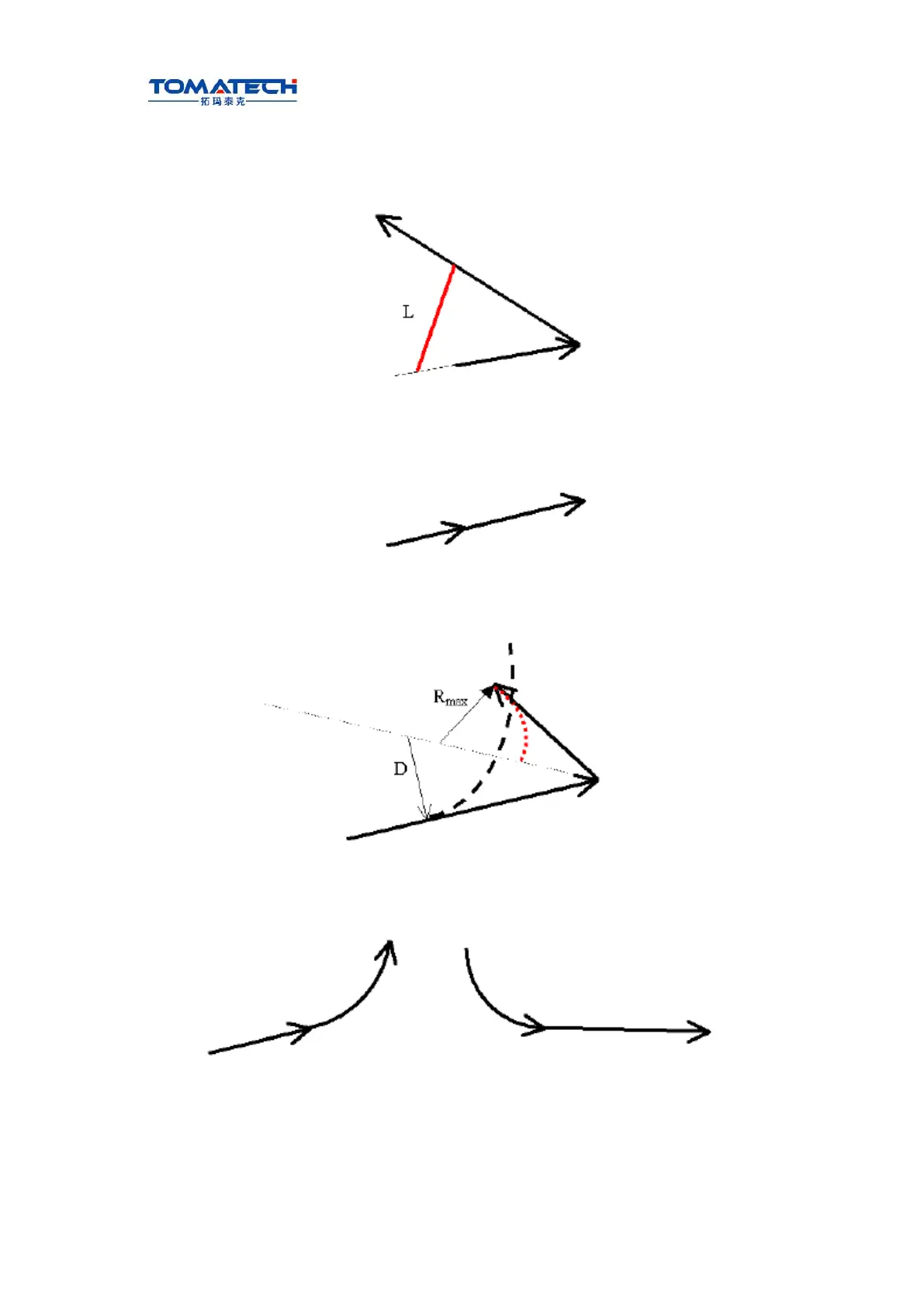

The chamfering linear length is L, CNC alarms when other end of the caculated
chamfering
linear is not in the interpolation linear(in the extension line of the interpolation linear).
2) Circular chamfering
A. The circular chamfering function is invalid when two interpolation straight lines are in
the same block.
B. CNC alarms when the chamfering circular radius is too big.
CNC alarms when the chamfering circular radius is D, max. circular radius of the
tangential linear lines is Rmax which is less than D as follows.
C. The circular chamfering function is invalid when the linear and the circular, or the
circular and the linear are tangential.
D. The circular chamfering function is invalid when one circular and another one are
tangential.
