Multi Pro 5800Hydraulic System Page 5 − 56
Gear Pump

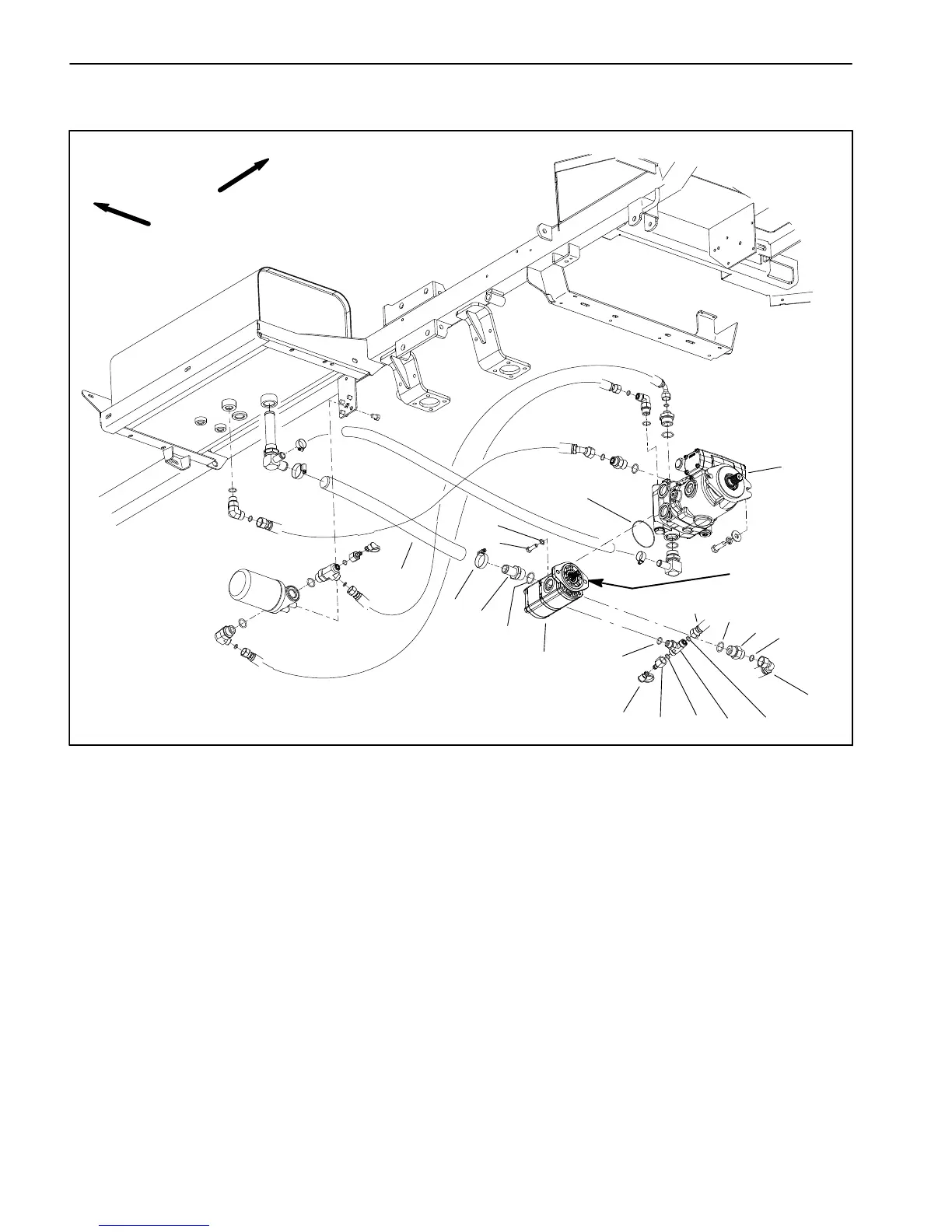

Figure 42
1. Piston (traction) pump
2. O−ring
3. Gear pump
4. Test fitting
5. Hydraulic hose (with cover)
6. Cap screw (2)
7. Flat washer (2)
8. O−ring
9. Hydraulic hose (to steering control)
10. O−ring
11. Hydraulic tee fitting
12. O−ring
13. Hydraulic hose (to pump manifold)
14. Straight fitting
15. O−ring
16. Hose clamp
17. Hydraulic fitting
18. O−ring
19. Dust cap
VIEWED FROM
BOTTOM OF MACHINE
FRONT
RIGHT
2
3
6
8
9
10
11
13
1
5
7
12
14
15
16
17
18
19 4
12
ANTI−SEIZE
LUBRICANT
APPLY
