Multi Pro 5800Page 8 − 8GeoLink Spray System

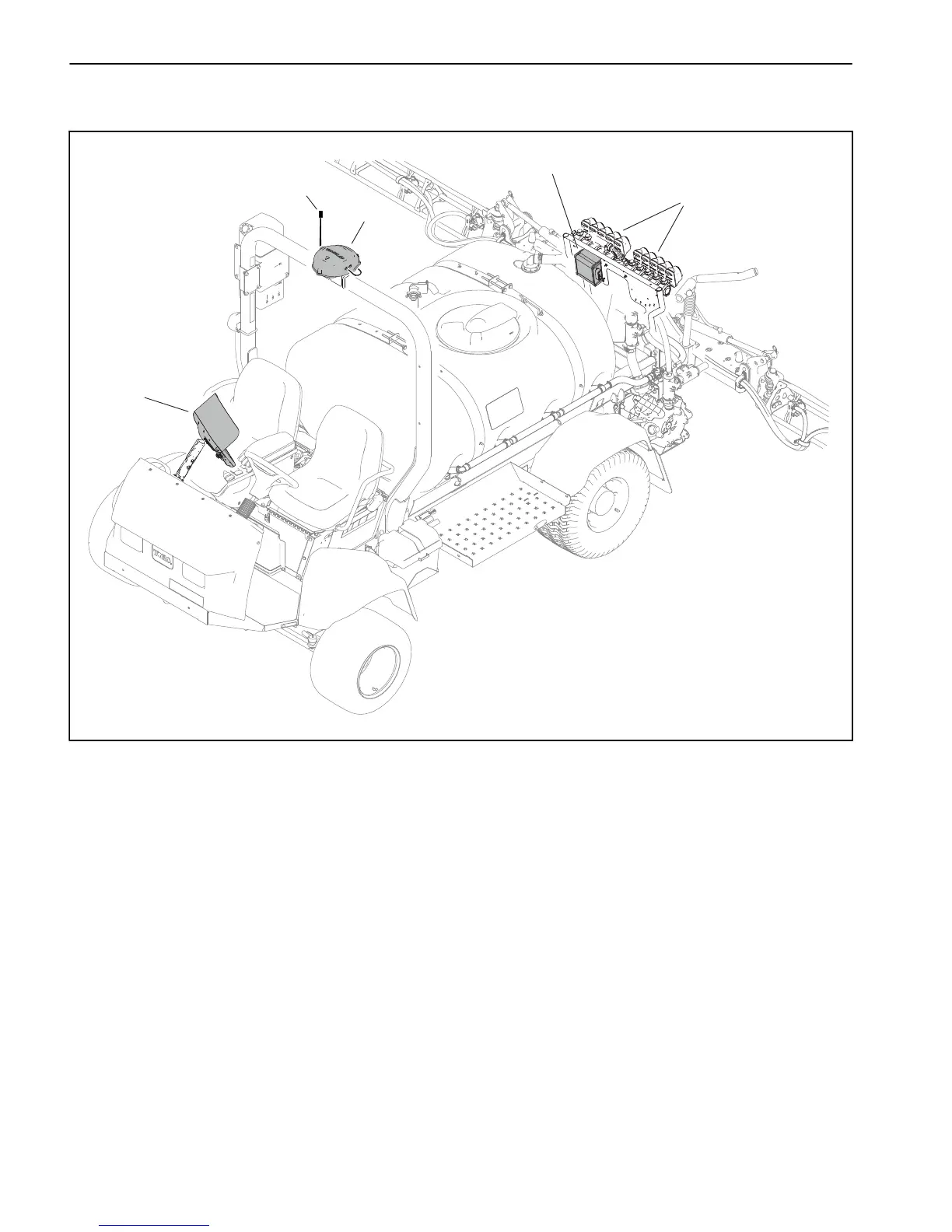

GeoLink Components
1. GPS antenna AGI−4
2. Cellular antenna
(machines with RTK correction only)
3. Control console X25 or X30
4. Automatic section controller ASC−10
5. Nozzle valves (10)
Figure 4
1
2
3
4
5
AGI−4 GPS Antenna
The enclosed antenna is mounted to the machine
ROPS. RTK enhanced systems also have a m and IMU
installed in the antenna housing, plus a short vertical an-
tenna mounted alongside the AGI−4 GPS antenna.
X25 or X30 Control Console
Operator control of the system is handled through either
a X25 (8.5 in. diagonal) or X30 (12 in. diagonal) touch
screen console mounted to the vehicle dash panel. The
spray system is configured and spray application is
monitored through the X25 or X30 console.
ASC−10 Auto Section Controller
The controller opens and closes the various nozzle
valves, turning ON the flow of product to a nozzle as it
enters an area that has not been sprayed, and turning
OFF a nozzle as it exits an area that has already been
sprayed. The controller is also responsible for varying
the spray pump speed/system pressure and therefore
the application rate.
