Multi Pro 5800Hydraulic System Page 5 − 68

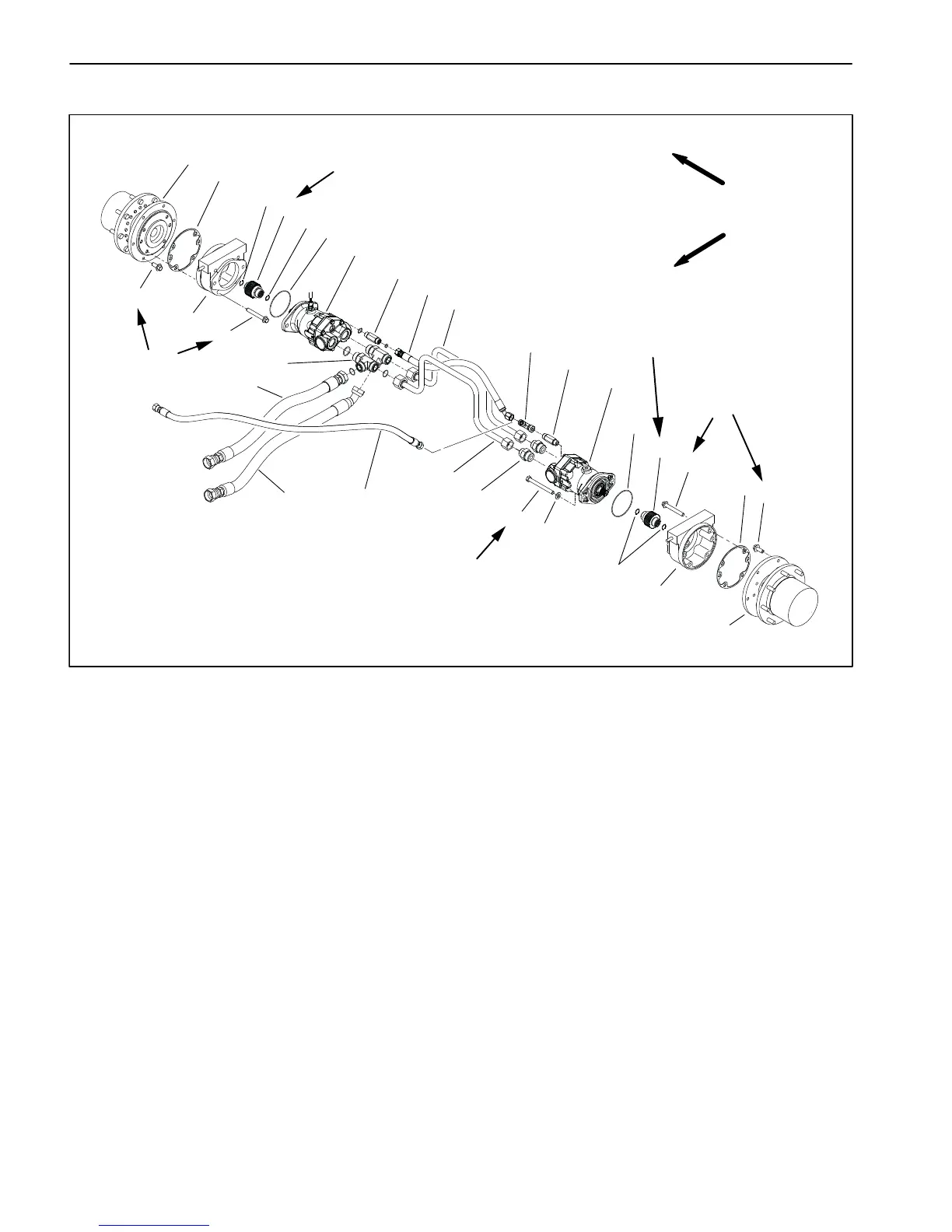

Wheel Motors
1. Planetary assembly
2. Flange head screw (6 per side)
3. Gasket
4. O−ring (2)
5. RH brake assembly
6. Flange head screw (4 per brake)
7. Retaining ring (2 per shaft)
8. Splined brake shaft
9. RH wheel motor
10. Hydraulic adapter (2)
11. LH wheel motor
12. Hydraulic tee fitting
13. Flat washer (2 per motor)
14. Cap screw (2 per motor)
15. Straight hydraulic fitting (2)
16. Hydraulic tube
17. Hydraulic hose
18. Hydraulic tube
19. Hydraulic tee fitting (2)
20. Hyd. hose (to lower pump fitting)
21. Hyd. hose (to upper pump fitting)
22. Hydraulic hose (to reservoir)
23. LH brake assembly
Figure 50
FRONT
11
12
13
14
15
16
17
18
60 ft−lb (81 N−m)
60 ft−lb (81 N−m)
60 ft−lb (81 N−m)
19
1
1
2
2
3
3
4
4
5
23
6
6
7
7
7
8
8
9
10
10
20
21
22
RIGHT
ORIENTATION SPECIFIC
(see text)
ORIENTATION SPECIFIC
(see text)
