Multi Pro 5800 Page 1 − 5 Safety
Jacking Instructions
CAUTION
When changing attachments, tires or perform-
ing other service, use correct supports, hoists
and jacks. Make sure machine is parked on a
solid, level surface such as a concrete floor.
Prior to raising machine, remove any attach-
ments that may interfere with the safe and prop-
er raising of the machine. Always chock or
block wheels. Use jack stands or other ap-
propriate load holding devices to support the
raised machine. If the machine is not properly
supported, the machine may move or fall,
which may result in personal injury.
Jacking the Front End
1. Set parking brake and chock both rear tires to pre-
vent the machine from moving.
2. Position jack securely under the front axle, directly
beneath the leaf springs (Fig. 1).
3. Jack front of machine off the ground.
4. Position jack stands under the front axle as close to
the wheel as possible to support the machine.
Jacking the Rear End
1. Set parking brake and chock both front tires to pre-
vent the machine from moving.
2. Place jack securely under the rear most frame sup-
ports between the angle welds (Fig. 2).
3. Jack rear of machine off the ground.
4. Position jack stands under the frame to support the
machine.

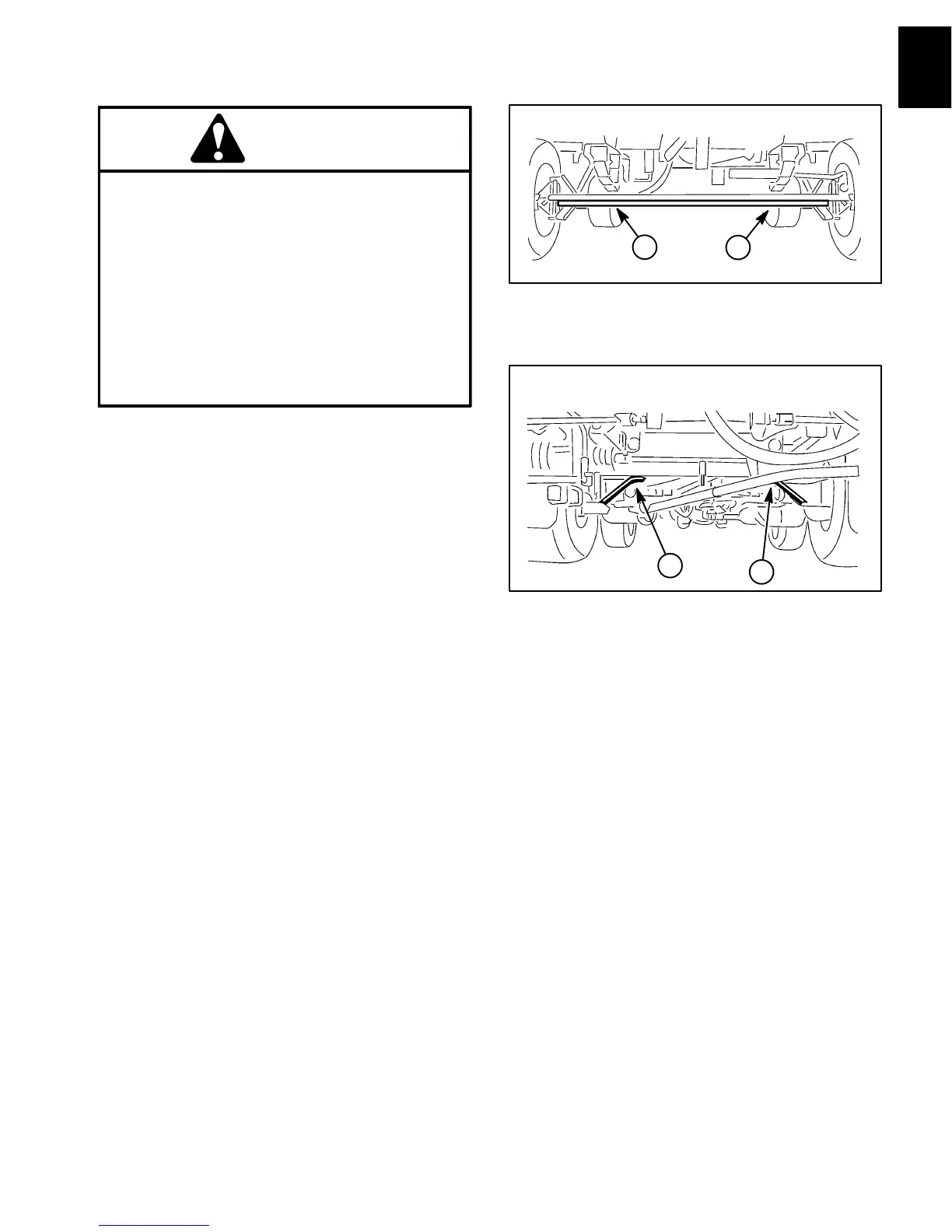

Figure 1
1. Front jacking points
1
1
Figure 2
1. Rear jacking points
1
1
Safety and Instruction Decals
Numerous safety and instruction decals are affixed to
the Multi Pro 5800. If any decal becomes illegible or
damaged, install a new decal. Part numbers are listed
in your Parts Catalog. Order replacement decals from
your Authorized Toro Distributor.
