Toro Multi Pro 5800 Service Manual

Multi Pro 5800−GPage 4 − 6Kubota Gasoline Engine
Service and Repairs
Fuel System

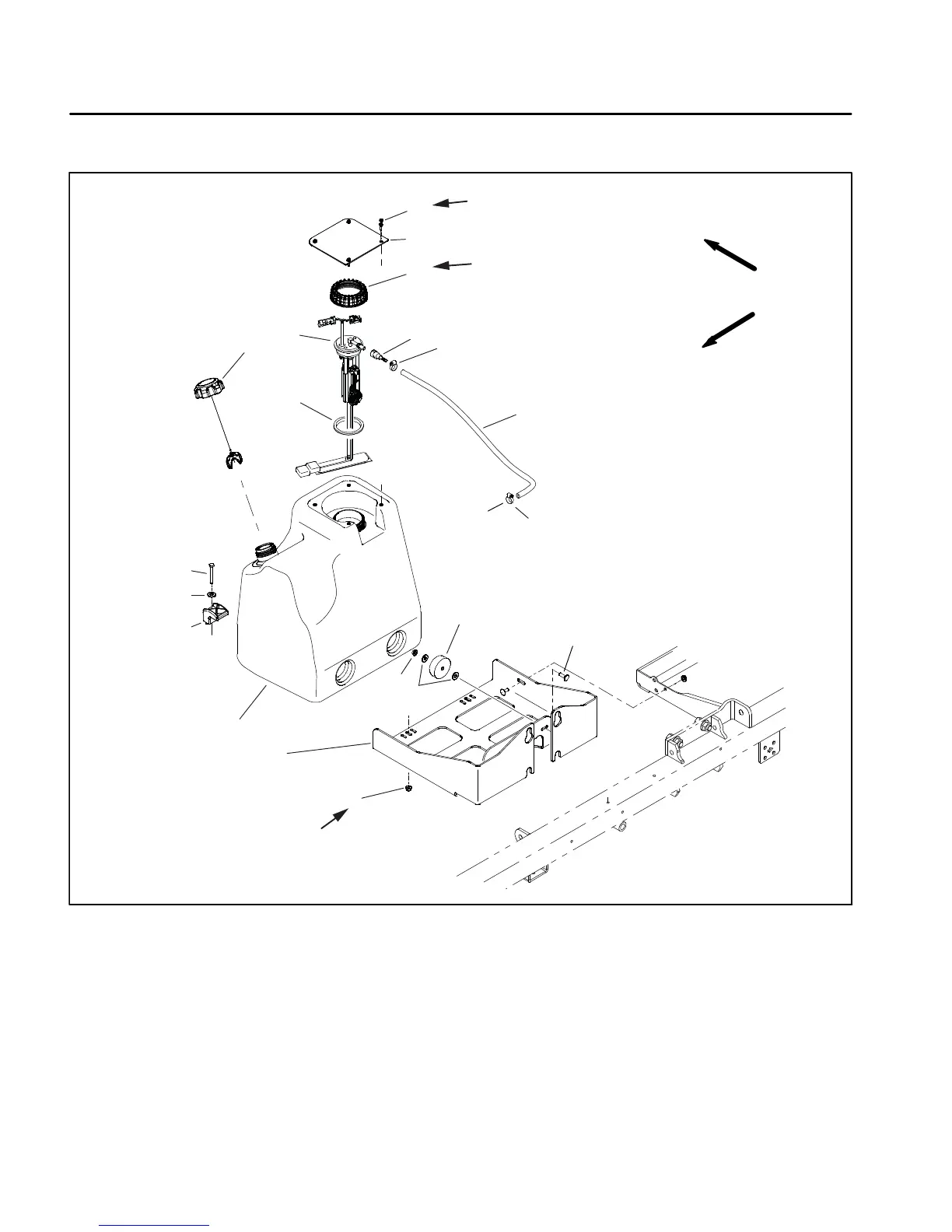

Figure 3
1. Fuel tank
2. Base
3. Flange nut (2)
4. Carriage bolt (2)
5. Rubber bumper (2)
6. Flat washer (6)
7. Flange nut (2)
8. Clamp (2)
9. Cap screw (2)
10. Fuel fill cap
11. Gasket
12. Fuel pump/level sender
13. Flange head screw (4)
14. Tank cover
15. Fuel pump/level sender cap
16. Barb fitting (2)
17. Hose clamp (2)
18. Fuel hose − supply
FRONT
RIGHT
16
17
17
18
15
14
13
1
TO
FUEL
RAIL
2
3
4
5
6
6
7
8
9
10
12
11
25 in−lb (3 N−m)
13 to 65 in−lb
(1 to 7 N−m)
10 to 12 in−lb
(1 N−m)
