Multi Pro 5800−GPage 4 − 18Kubota Gasoline Engine
Engine

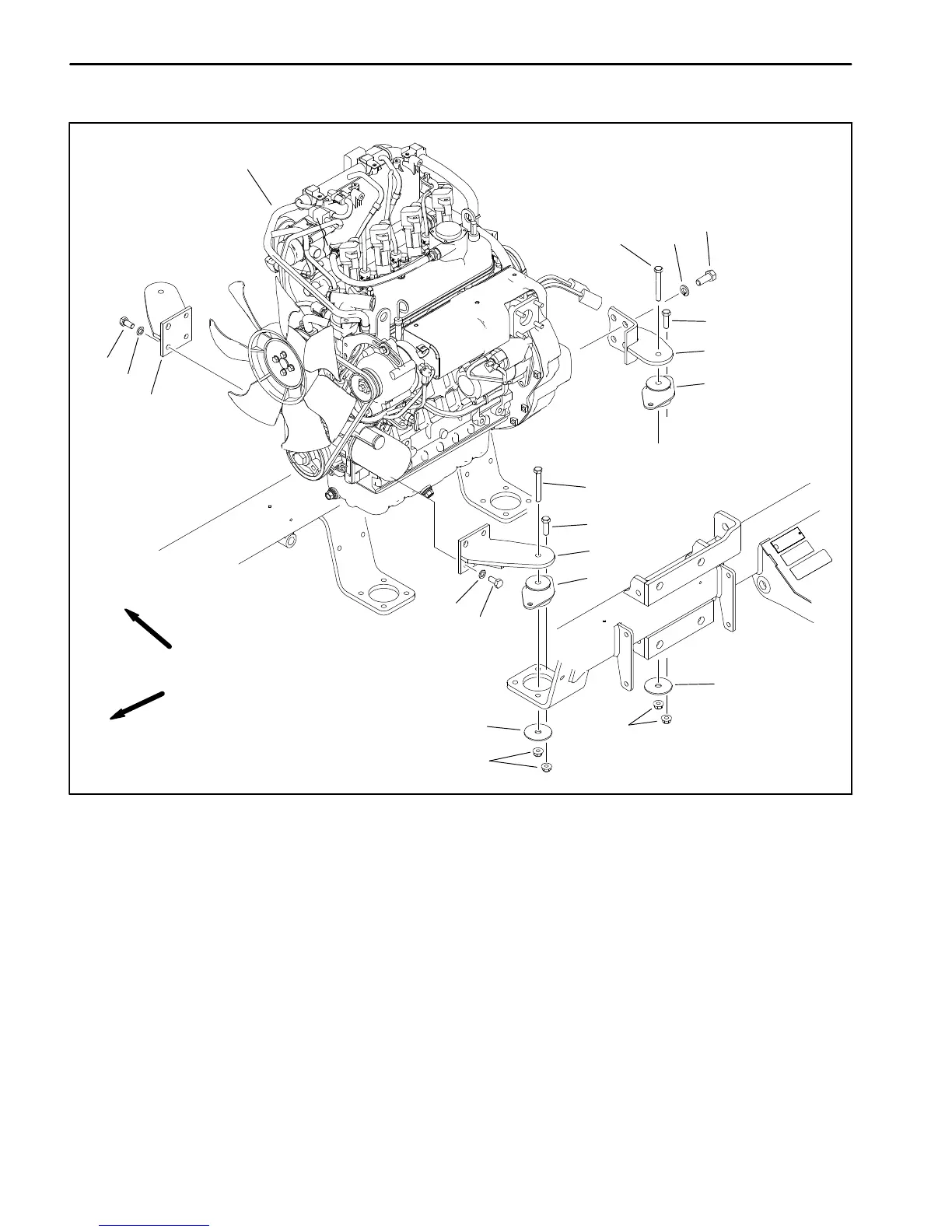

Figure 10
1. Engine assembly
2. Cap screw (4)
3. Lock washer (8)
4. Cap screw (8)
5. Cap screw (8)
6. Rear engine mount bracket (2)
7. Engine mount (4)
8. Front left engine mount
9. Snubbing washer (4)
10. Flange nut (12)
11. Cap screw (8)
12. Lock washer (8)
13. Front right engine mount
FRONT
RIGHT
11
11
12
12
13
1
2
1
2
3
4
5
5
6
7
7
8
9
9
10
10
The following engine removal and installation proce-
dures describe lifting and lowering the engine out from
above the machine.
Removal
1. Park machine on a level surface, stop engine, en-
gage parking brake and remove key from the ignition
switch.
2. Disconnect negative (−) and then positive (+) battery
cables from the battery.
3. Remove battery and battery tray from machine.
4. Remove the front fenders.
5. Remove the radiator (see Radiator in this chapter).
6. Detach the air cleaner hose from the R.O.P.S. bar
(see Air Cleaner in this chapter).
7. Loosen the hose clamp at the intake manifold of the
engine and disconnect the air cleaner hose from the en-
gine manifold (see Air Cleaner in this chapter).
